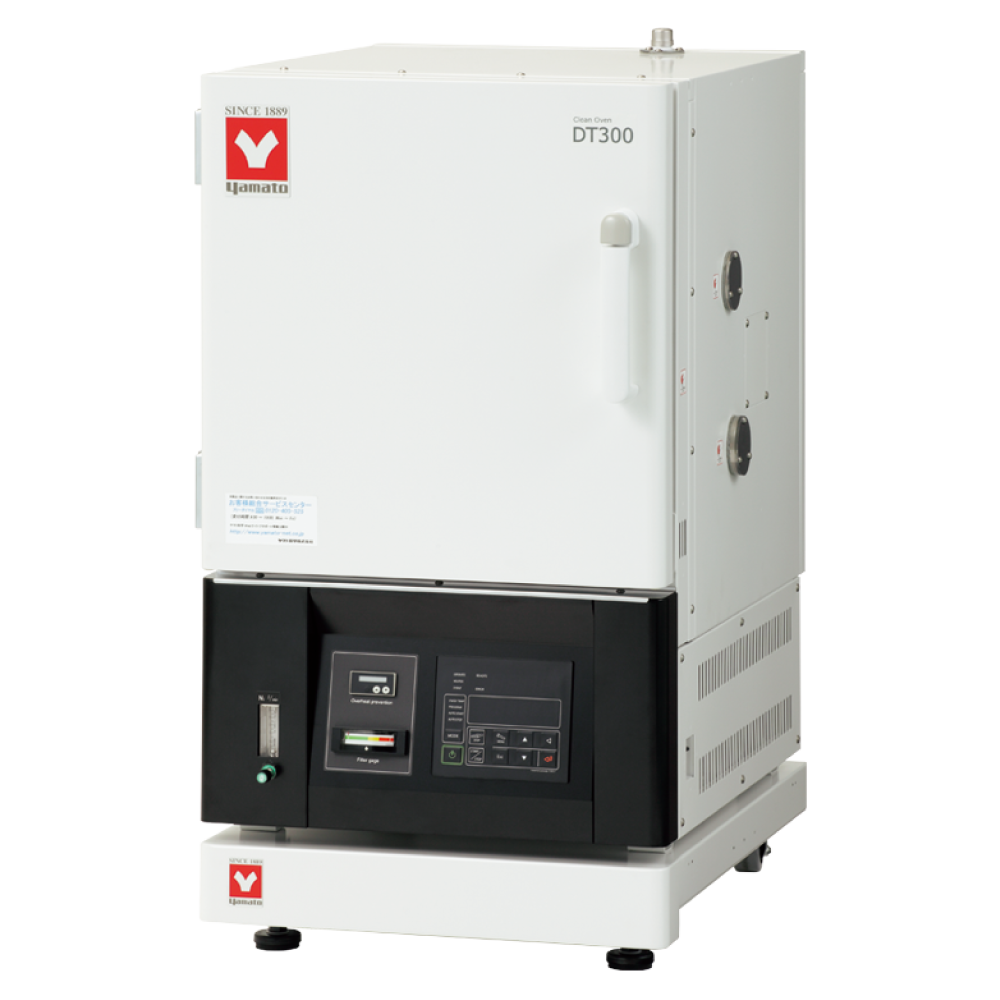

| Model |

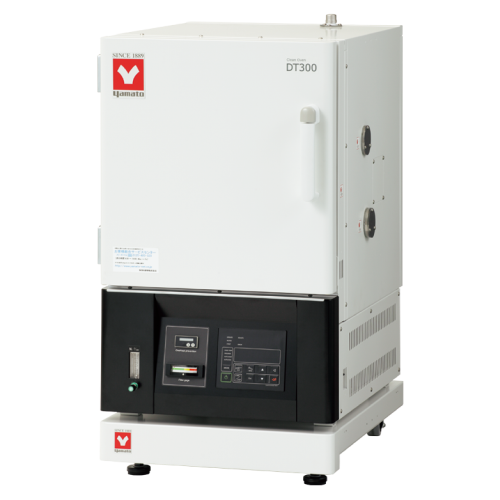

DT300
|
| Weight |
87kg
|
| Item Code |
212614
|

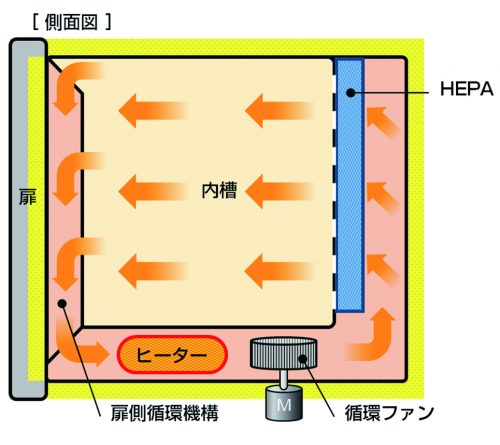

| Method |
Forced air circulation
|
| Operating temp. range |
Room temp. +20°C to 300°C
|
| Temp. control accuracy (JTM K05) |
±0.3℃（at 100℃, 200℃, 300℃）
|
| Temp. fluctuation (JIS) |
1.0°C (at 100 / 200°C) , 2.0°C (at 300°C)
|
| Temp. distribution accuracy (JTM K05) |
JTM K05 ±2.0℃（at100℃）、±4.0℃（at200℃、300℃）
|
| Temp. Gradient (JIS) |
JIS 5℃（at100℃）、10℃（at200℃）、12℃（at300℃）
|

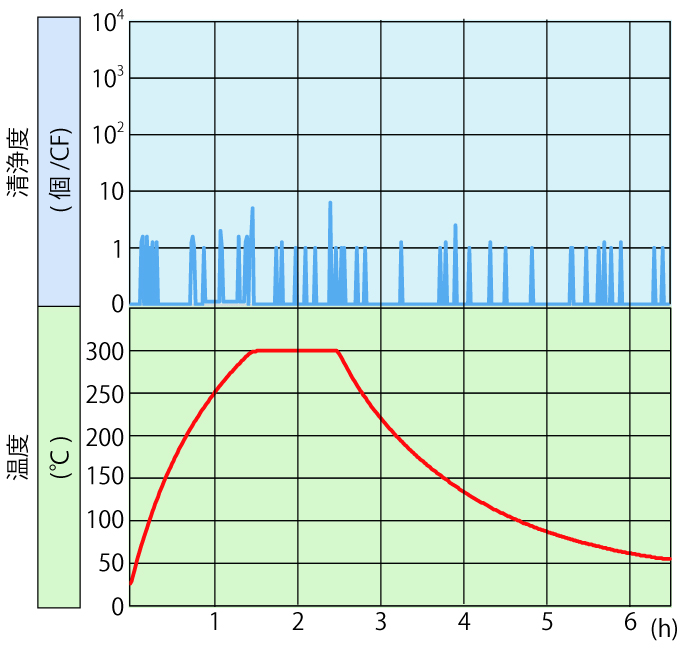

| Max. temp. reaching time |
Approx. 150 min.
|
| Clean level |
Class 100 (when the temp. is stable)
|
| Interior material |
Stainless steel
|
| Heat insulating material |
Glass wool
|
| Heater |
Stainless pipe heater, 1.2kW
|
| Fan type |
Sirocco fan, Condenser type motor
|
| Differential pressure meter |
Indicator type (tricolor)
|
| Cable port |
33 mm I.D. (right side)
|
| Air in-take port |
33 mm I.D. (right side)
|
| Exhaust port |
16 mm I.D. (R1/2, top side)
|
| Filter |
Heat resistant HEPA filter (dust collect : more than 99.97% at 0.3μm )
|
| Temp. controller |
PID control by micro processor
|
| Temp. setting method |
Digital setting with UP/DOWN key
|
| Temp display method |
Digital display
|
| Other Display |
Operation monitor (operation condition graphic display by LED patterns)
|
| Timer |
1 min. to 99 Hrs. 59 min
|
| Operation function |
Fixed temp., Auto-start, Auto-stop, Quick auto stop, program (Max.99 steps, 99 patterns, repeat)
|
| Additional functions |
Calendar timer (max. 24 hrs.), Integration time (max. 65535hrs.), Clock, Calibration off-set,
|
| Additional functions 2 |
Display the amount of Power consumption / CO2 discharge / Heater operation amount, Power failure recovery mode, User setting information save and recall
|
| Heater circuit control |
Triac zero-cross control
|
| Temp. sensor |
K-thermocouple (double sensor)
|
| Safety countermeasures |
Self diagnosis functions (Sensor, Fan, Heater, Relay, Triac, Automatic overheat prevention),
|
| Safety countermeasures 2 |
Independent overheat prevention, Key lock function, Electric leakage breaker, Door switch
|
| Shelf loading |
Approx. 15 kg / pc
|
| Shelf support step number/pitch |
6 steps / 30mm
|
| Accessories Shelf plate |
Stainless wire shelf
|
| Accessories Shelf / Shelf support |
2 pcs / 4 pcs
|
| Internal dimensions（W×D×H mm） |
300×300×300mm
|
| External dimensions（W×D×H mm） |
500×720×840mm
|
| Power Source |
AC220V 6A
Single-phase with step-down transformer
|
