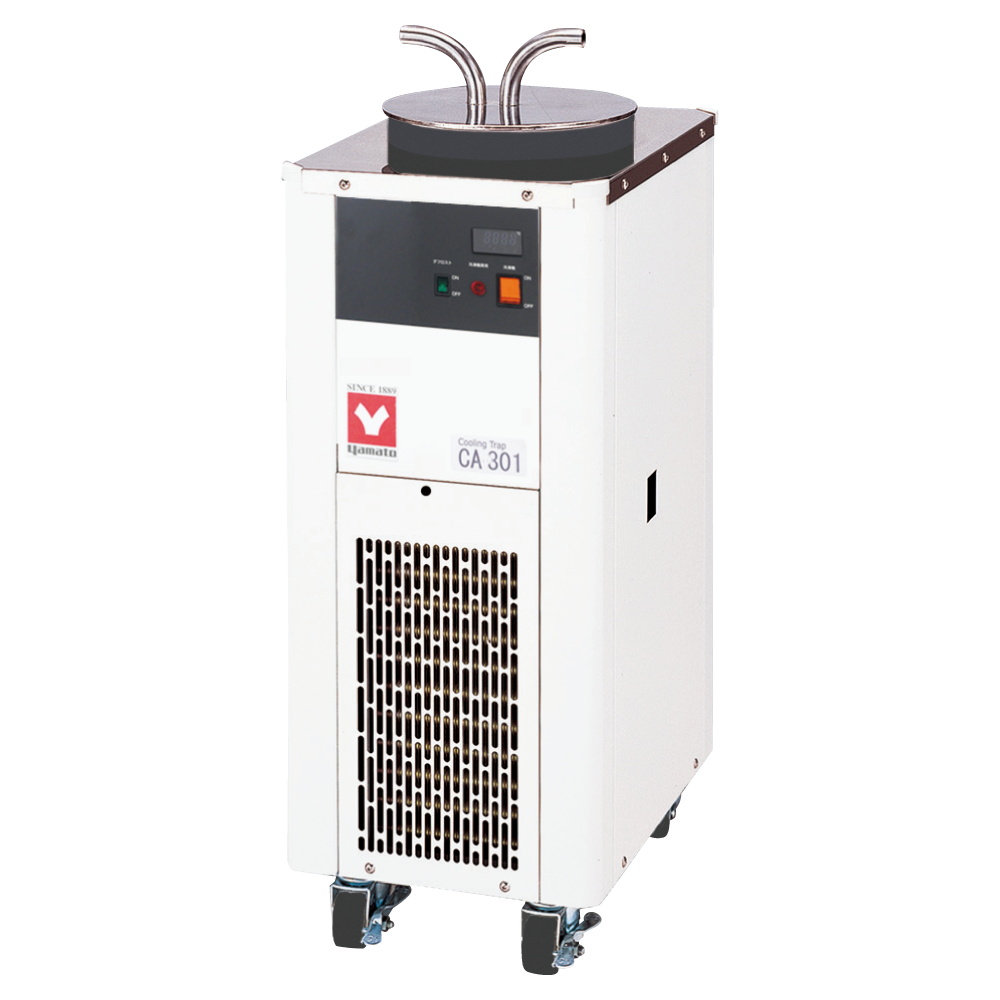

Cold Trap (CA301)

Description

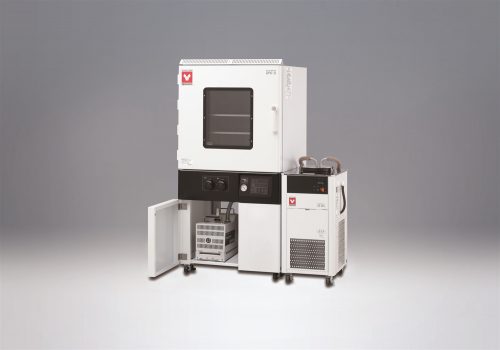

Efficiently traps water vapor and toxic substances discharged from vacuum oven and rotary evaporator to protect the vacuum pump.

Features of Cold Trap (CA301)

Features: Excellent choice to extract acid and organic solvents with the optional glass condenser.
Features: Efficiently reduces vapor inhalation amount to the vacuum pump.
Features: Can be used as a low temperature tank as well as pre-cooling tank.
Features: Utilizes R404A (CA301) and R600a and mixed coolants (CA801)
Features: Space saving and highly mobile on wheels

Model	CA301
Lid	SUS304, with nozzle (OD ø17.6mm)
Weight	47kg
Item Code	221436
Accessories	―
Method	Direct trap or Glass trap (optional)
Dehumidifying capacity	Max. 0.9kg(Water type liquid)
Max. low temperature	-45℃
Refrigerator	Air cooling, 400W
Refrigerant	R404A
Cooling coil	ID ø90mm SUS304
Bath shape / material	Cylindrical / SUS304
Ambient temp. range	5 to 35℃
Temperature Display	7 segment LED
Temperature sensor	Platinum resistance temperature detector Pt100Ω
Defrosting mechanism	N/A
Safety device	Electric leakage breaker with over current protection, Refrigeration overload relay
Sink dimensions	I.D.153×H235mm
External dimensions（W×D×H mm）	345×475×726mm
Remarks(dimensions)	Internal capacity : Approx. 4L (Liquid 3L)
Power Source	AC115V/AC220V Single phase with step-down transformer
