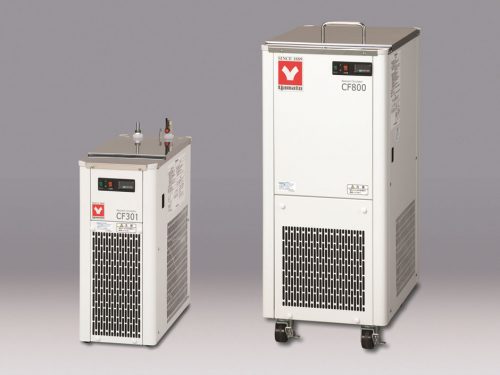

Cooling Water Circulator (Externally-closed Circulation) (CF800)

Description

Closed system and water saving with excellent cooling capacity

Features of Cooling Water Circulator (Externally-closed Circulation) (CF800)

Features: Environment friendly coolant used for refrigeration.

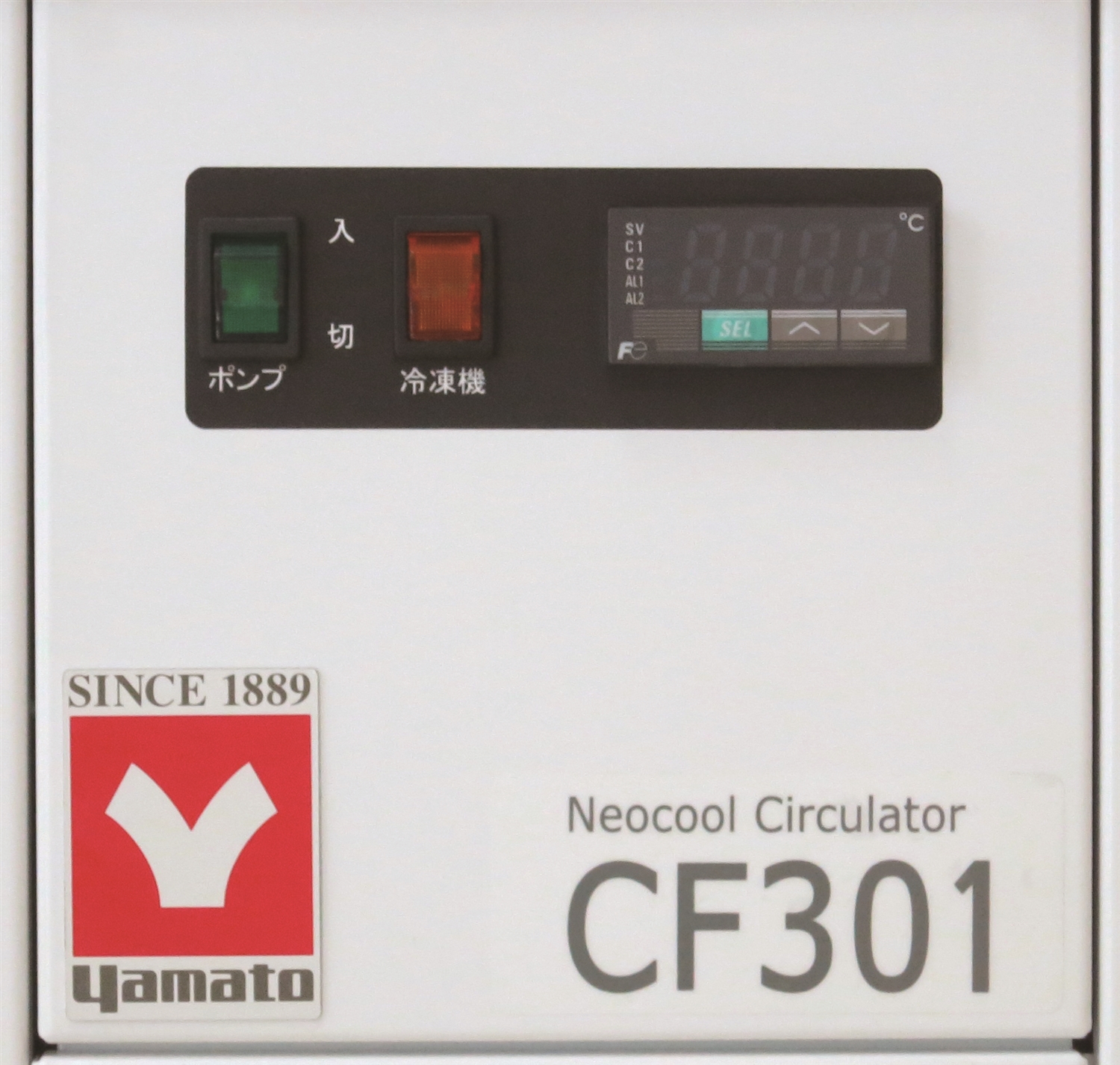

Features: Waterproof touch panel with big LED display and sheet key for easier setting.
Features: Less energy use and less cooling capacity loss by fixing the heat-resistant lid.
Features: Powerful cooling and big energy saver in combination with Rotary Evaporator distillation.
Features: When using CF800/810 up to 4 Rotary Evaporators can be connected saving investment and operation cost.

Model	CF800
Item Code	221527
Weight	54kg
Circulation Type	Closed circulation
Operational ambient temperature	5 to 35°C
Operating temp. range	-20°C to Room temperature

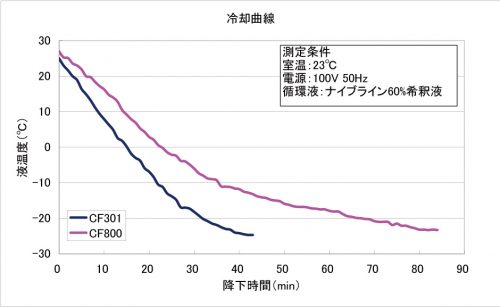

Cooling capacity	1050W (830Kcal/h) at liquid temp. 10oC, 910W (780Kcal/h) at liquid temp. 0oC, 670W (570Kcal/h) at liquid temp. -10oC
Temp. control	Refrigerator ON/OFF control
Temp. Sensor	T-Thermocouple (with SUS Protection Tube)
Temp. setting / Display	Digital setting / LED display
Refrigerator	Air cooling, 600W
Refrigerant	R404A
Circulation Pump	Magnet pump 65/65W
Circulation capacity (50/60Hz), Max. flow rate, Pump max. flow rate	10.0 / 11.8L/min（22.0 / 22.0L/min）
Circulation capacity (50/60Hz), Max. lift, Pump max. lift	10.3 / 14.3m（10.0 / 13.5m）
Cooling coil	Nickel plated copper
External circulation nozzle	O.D. 10.5mm for in and out with hose nipple
Safety device	Electric leakage breaker, Refrigerator over load relay, Pump thermal protector, Refrigerator-protection delay timer

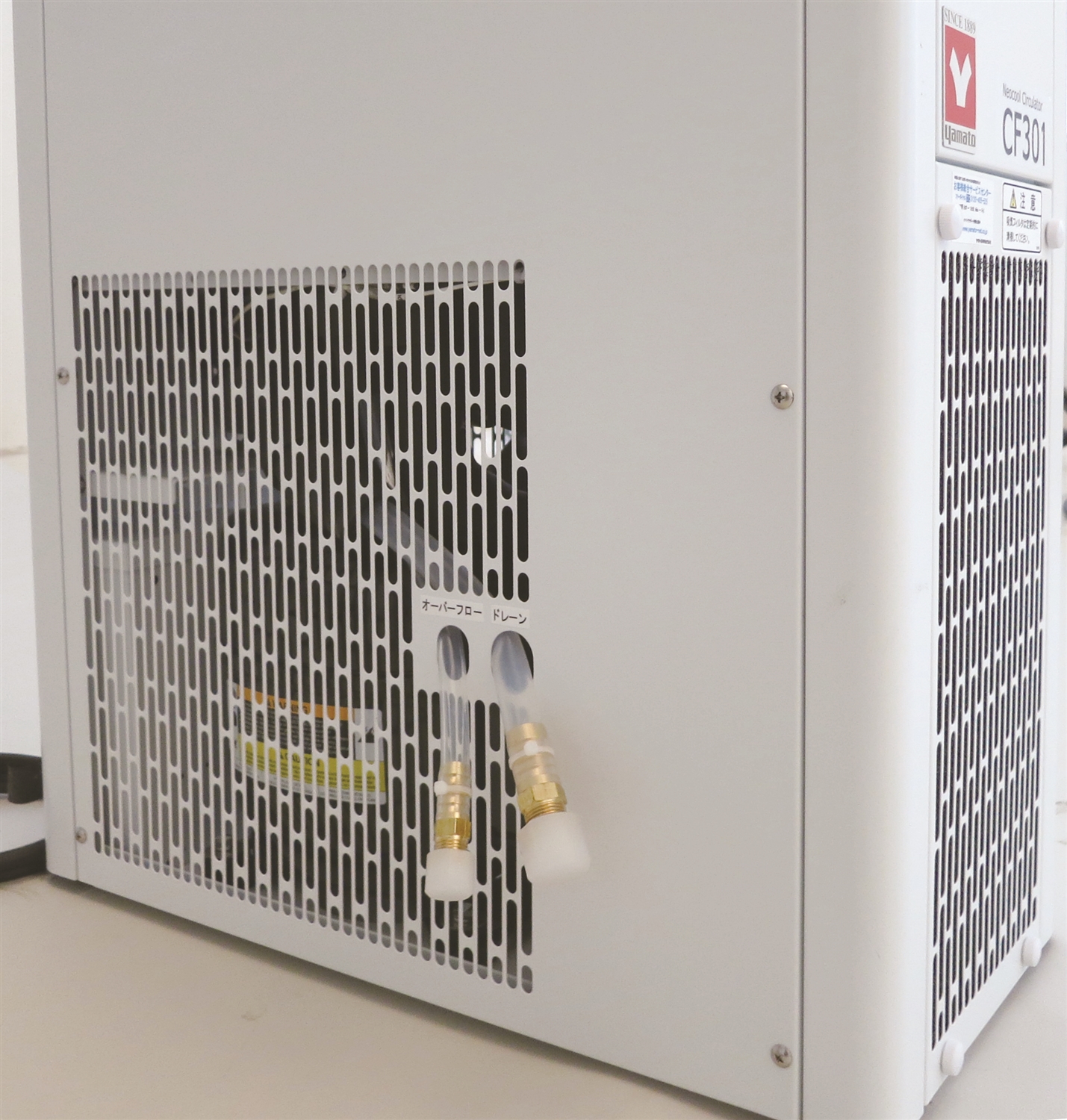

Other functions	Drain, over flow
Water Bath material	SUS304
Water Bath capacity	16L (Liquid amount 14L)
Accessories	Circulation hose (1.5m) ×2, Wire clamp×2, Cover
External dimensions（W×D×H mm）	350×480×1240mm
Remarks(dimensions)	Water bath dimension ø300×H235mm
Power Source	AC220V 7A Single-phase with step down transformer
