Cooling water circulation system of high output, saving energy consumption by inverter control.

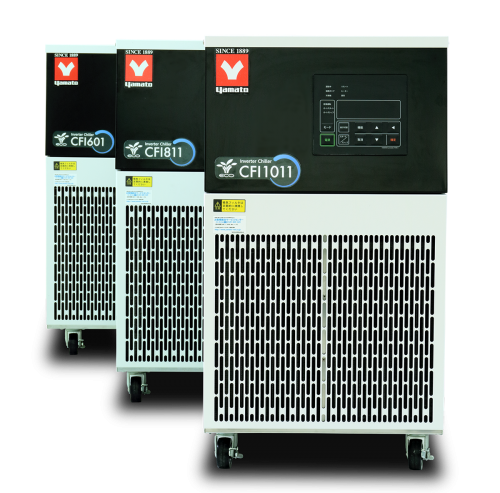

Features of Cooling Water Circulator (Externally Closed Circulation, Inverter Control) (CFI601)
| Model | CFI601 |
|---|---|
| Item Code | 221555 |
| Weight | 47kg |
| Type | General type |
| Circulation Type | Closed System Circulation / Tap Water or Anti-freezing liquid |
| Operating temp. range | -10 to 30℃ |
| Temp. fluctuation (JIS) | 0.2°C |
| Cooling capacity (at Liquid Temp. 20°C) | Approx. 1000W |
| External circulation flow rate (50/60Hz) | Approx. 15 / 17L/min |
| Pump max. lift (50/60Hz) | Approx. 10 / 14m |
| Tank | Polyethylene |
| Temp. control | Refrigerator inverter control |
| Temp. Sensor | Pt100Ω, T thermocouple |
| Temp. setting / display | Digital setting/display |
| Refrigerator / coolant | Air-cooling inverter type / R410A |
| Heat exchanger | Plate type heat exchanger, SUS316 |
| External circulation nozzle | Nozzle is option, Rc1/2 |
| Circulation Pump | Magnet Pump 65W |
| Safety countermeasures | Over current electrical leakage breaker, Temp. sensor error, Float switch, Refrigerator over load relay, Refrigerator high pressure relay, |
| Safety countermeasures 2 | Ambient temp. upper limit error, Refrigerator overload reducing operation, Pump thermal protector, Delay timer for protecting refrigerator, Inverter error |
| Other function | Water bath filter, Drain cock, Air intake filter, Calibration off-set, Auto start, Auto stop, Display the amount of Power consumption, Integration time |
| Accessories | Lid, Drain hose ( I.D. 9mm x 500mm), Drain hose nozzle (O.D. 10mm) |
| External dimensions（W×D×H mm） | 380×520×690mm |
| Remarks(dimensions) | Water bath capacity approx. 5L |
| Power Source | AC115V/AC220V |
