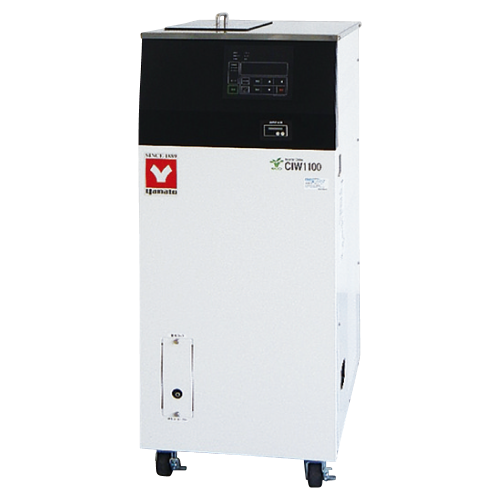

Cooling Water Circulator (Externally Closed Circulation, Inverter Control) (CIW1100)

Description

Cooling water circulation system of high output, saving energy consumption by inverter control.

Features of Cooling Water Circulator (Externally Closed Circulation, Inverter Control) (CIW1100)

Features: Cooling water circulation system of high output, saving energy consumption by inverter control.
Wide temperature control range from 0 to 80℃.
Able to cool the heat load at very high temperature which surpass the limit of conventional products.

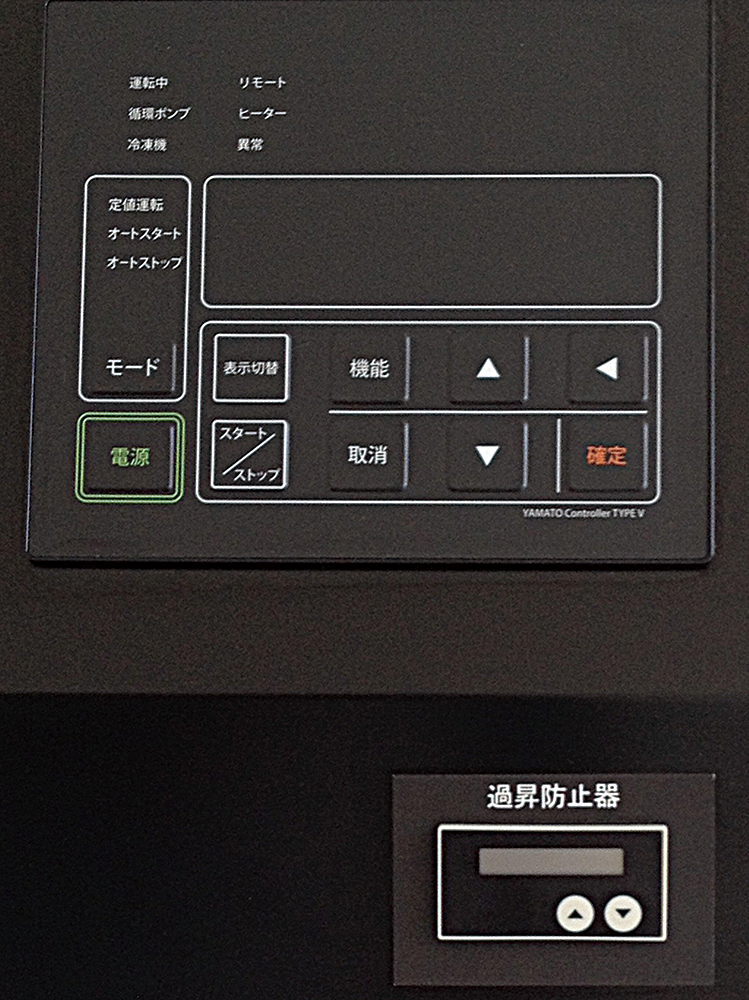

Auto stop-start system, Calibration offset function and various amazing functions will be standard functioned. Also, it comes with electricity and CO2 emission monitoring.

Additional information

Model	CIW1100
Exterior Material	Chrome-free electrogalvanized steel plate, Chemical resistance coating
Price	–
Circulation method	External closed system circulation
Cooling Method	Water-cooled type
Temperature control Range	0 – 80℃ (Operation of entire freezer)
Operating temperature range	5 – 35℃
Temp. adjustment accuracy/Temp. Fluctuation	±0.1℃ (JTM K05)/ 0.6℃ at 20℃ (JIS)
Temperature display Unit	0.1℃

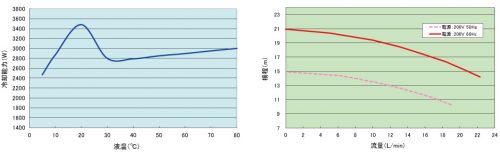

Cooling capacity	Approx. 3,200W (at Liquid Temp. 20 °C, Room Temp. 23℃, Water Supply Temp. 20℃)
External circulation Flow Rate/Pump Max. Lift	Approx. 19/22ℓ/min / Approx. 14.5/20.5m (50/60Hz)

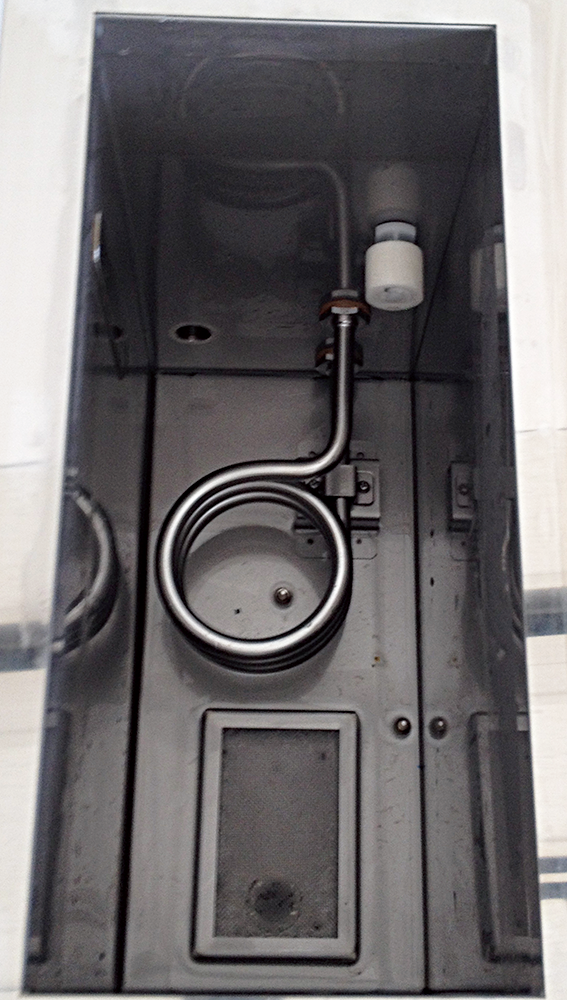

Water tank Material	SUS304
Water tank Dimension	W170 × D370 × H360mm
Water tank Capacity	Approx. 17L
Item Code	200000
Heater	3,200W
Refrigerator	Swing Type Compressor (Inverter control) / R410A
Temperature sensor	Pt100Ω(Temp. control), T thermocouple (Water temp., Evaporation temp.), K thermocouple (Overheat)
Circulation Pump	180/216W
Circulation system Material	Stainless steel joint, Ethylene propylene hose
Condenser	Plate type heat exchanger / SUS316

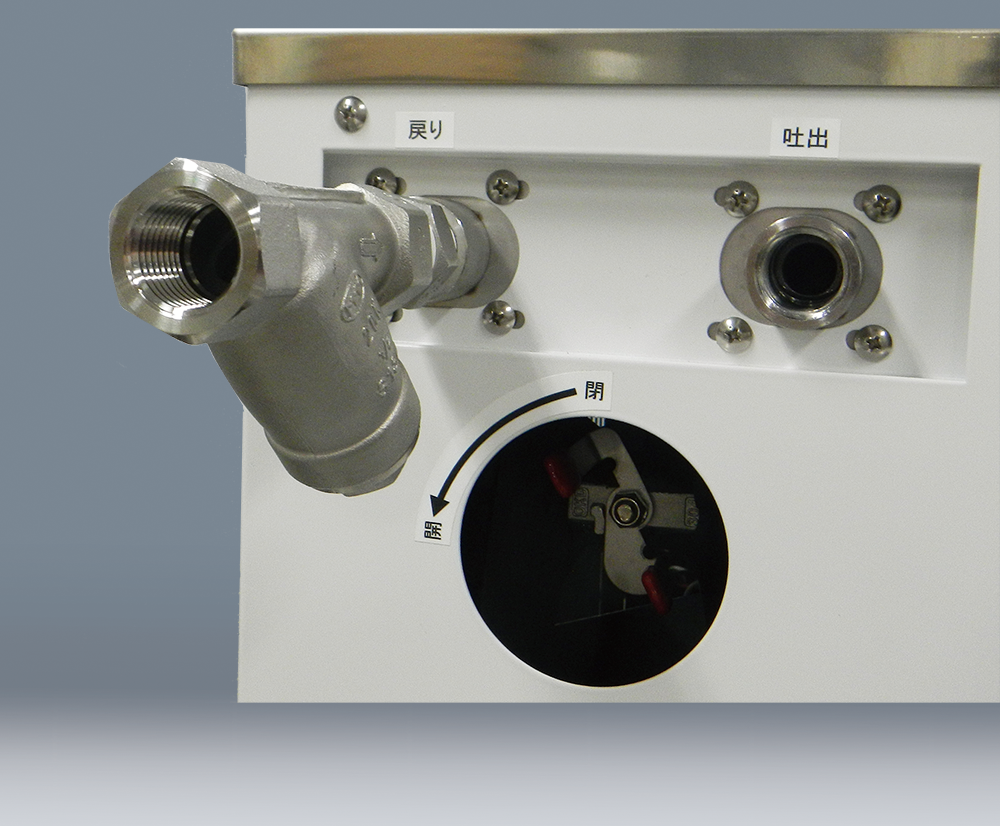

External circulation nozzle	Nozzle is option, Rc1/2
Water Supply Facility	Temp.: 10-33℃, 15L/min or more, Water Pressure: 3 to 7kg/cm2
Safety countermeasures	Temp. sensor error, Liquid temp. upper/lower limit error, Over current electrical leakage breaker, Refrigerator high pressure, Refrigerator refrigerating protecting timer, Refrigerator over load, Float switch, Supply water pressure, Refrigerator overload reducing operation, Independent overheat prevention device

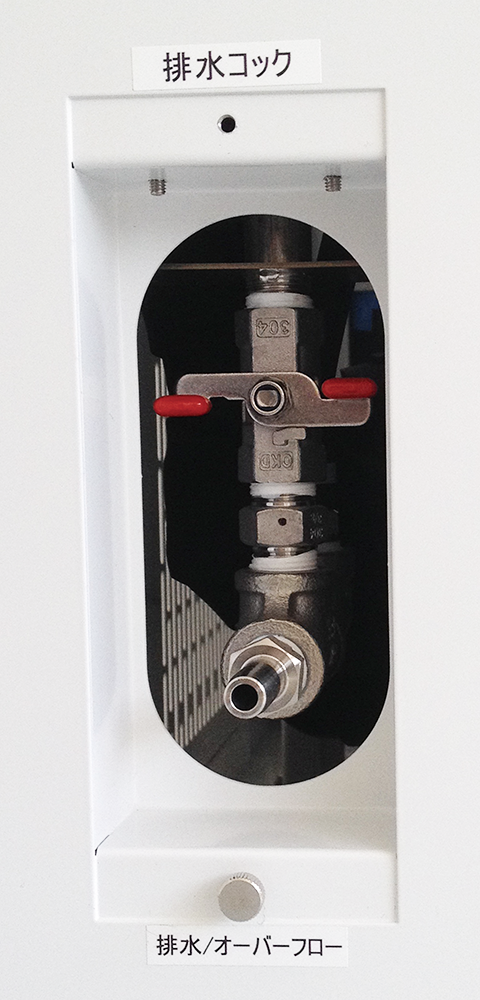

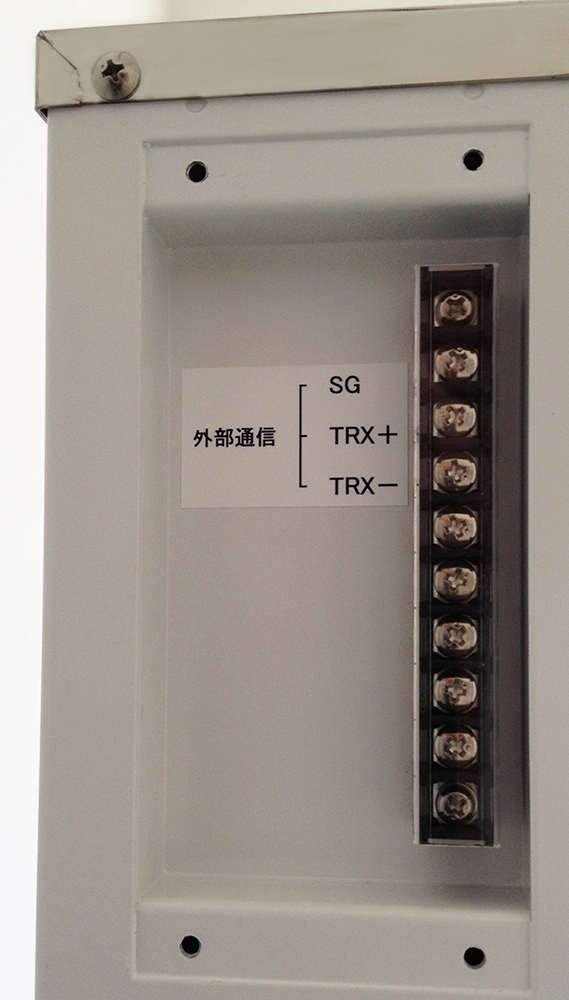

Other function	External communication terminal (RS485), Water bath filter, Over flow / Drain cock, Calibration off-set, Auto start, Auto stop, Display the amount of Power consumption, Integration time
External dimensions（W×D×H mm）	420×650×1021mm
Power Source	AC220V Single-phase with step down transformer
Weight	95kg
