Cooling Water Circulator (Externally Opened Circulation) (CLS302)

Description

External opened cooling water circulator with refrigerator ON-OFF control and powerful cooling capacity.

Features of Cooling Water Circulator (Externally Opened Circulation) (CLS302)

Features: External opened cooling water circulator with the temp. range of -10°C and -15°C.
Features: Use the flow control valve to freely adjust the circulating pump’s flow according to the size of bath.
Features: Use the flow sensor to monitor the pipeline flow, in case of pipe clogging, the red lamp lights up, with auto stop protection device.
Features: Configurated with quick auto stop, auto stop, auto start operations, temp. output terminal, deviation correction, power outage compensation.
Safety Features: Overcurrent ELB, self-diagnosis, key lock, power outage compensation, flow monitor, refrigerator monitor, refrigerator delay timer of protection, abnormal flow or high pressure, etc..

Model	CLS302
Circulating pump	Magnetic drive pump
Weight	40kg

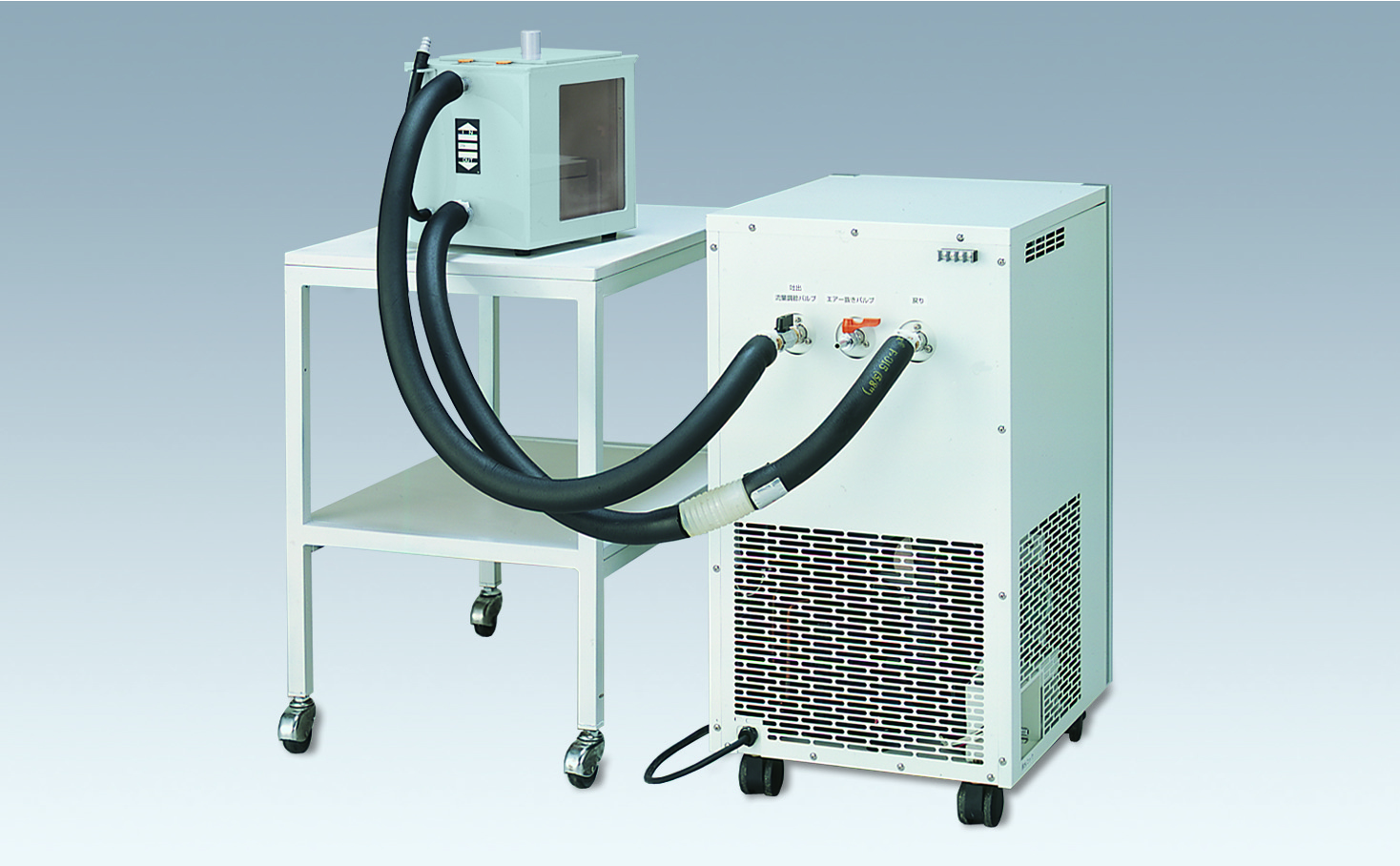

Method	External opened circulation
Operating temperature range	-10°C to RT
Temperature control accuracy	±1.5 to ±2°C

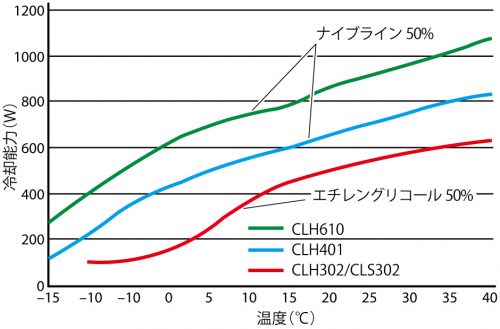

Cooling capacity	Approx. 450W(387Kcal/h), at fluid temp. 15°C
Temperature control	Refrigerator ON-OFF control
Temperature sensor	T thermocouple

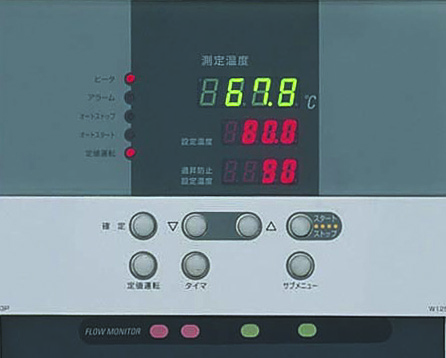

Temperature setting, display	attribute:Digital Setting and Display
Refrigerator, refrigerant	Air cooling, 250W, R404A
Item Code	221347

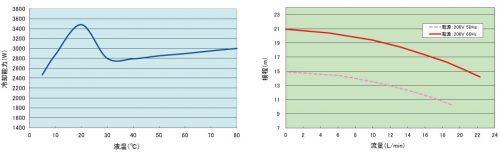

Unit circulation ability (50/60Hz), Max. lift, Pump capacity	3.5 / 5.0m, (4.9 / 6.9m)
Unit circulation ability (50/60Hz), Max. flow, Pump capacity	5.4 / 6.2L/min, (10.0 / 11.0L/min)

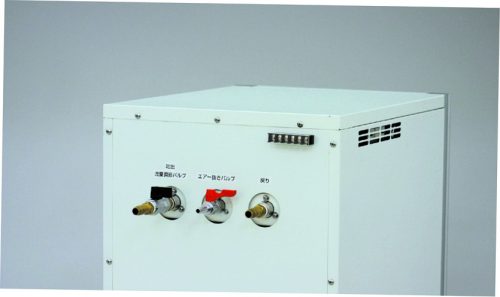

External circulation nozzle	O.D.13mm of water outlet and return port
Operating environmental temp. range	5 to 30°C
Safety device	Overcurrent ELB, Self-diagnosis, Key lock, Power outage compensation, Flow monitor, Refrigerator monitor, Refrigerator delay timer of protection, Abnormal flow or high pressure, etc..
Other functions	Flow control valve, Drain valve, Condenser filter screen, Deviation correction, Key lock, Temp. output terminal, Power outage compensation
Accessories	Circulating heat preservation pipe-1, Pump circulating tube-1, Hoop-4, Drain pipe-1
External dimensions（W×D×H mm）	410×460×550mm
Remarks(dimensions)	Bath capacity 1.5L, Bath dimension I.D.120×D200mm
Power Source	AC115V/AC220V Single-phase with step down transformer
