Description

Water cooling heat dissipation system (CTW type) and air cooling heat dissipation system (CTA type) are available.

Features of Cooling Water Circulator (Externally Opened Circulation, Peltier Cooling) (CTA412S)

Features

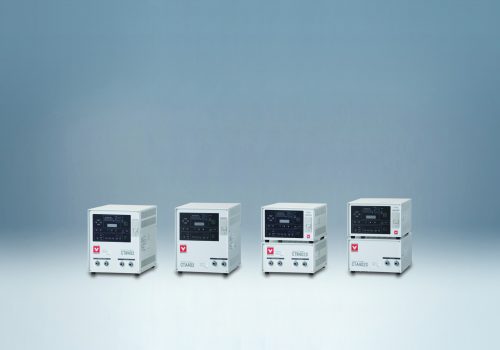

Integrated type (CTW402 / 802, CTA402 / 802) and Separated type (CTW402S / 802S, CTA402S / 802S) are selectable.
Features
External open constant temperature water circulator with separate cooling/heating assembly and power control assembly enables to control the constant temperature water precisely. It uses a Freonfree cooling system.
Features
The RS485 communication function is provided as standard and can be centrally managed from a PC.

Additional information

Model

CTA412S
Item Code

221644
Weight

00kg
System

Separated type, Air cooled electronic system, External open circulation
Operating temperature range

0 to ＋70℃
Temp. adjustment accuracy

±0.1℃
Cooling capacity

83 kcal/h　(97W)
Performance pump capacity (50 Hz) Maximum flow ratemax. flow (50/60Hz)

8l/min
Performance pump capacity (50 Hz) Maximum discharge pressure

29.4kPa
Timer function

1 min to 99 hrs 50 min, 100 to 9999 hrs (with time/clock switching function)
Operation function

Fixed temp., Auto-start, Auto-stop, Quick auto stop, Program (Max.99 steps, step separate,repeat, gradient), Program auto start
Other functions

Self diagnostics, Calibration offset, External temperature sensor switching, Power failure recovery mode, RS485 external communication, Alarm output terminal, Key lock, Display the amount of Power consumption, Operation guidance
Safety unit

Over current electric leakage breaker, Abnormality detection (Temp. sensor, Overheat, Peltier, Temp. upper / lower limit, Power supply, Internal communication, Memory)
Material of cooling/heating unit liquid contact part

Stainless steel (SUS304)
Circulation port nipple diameter

O.D.: 12.7mm
Number of thermo module

4

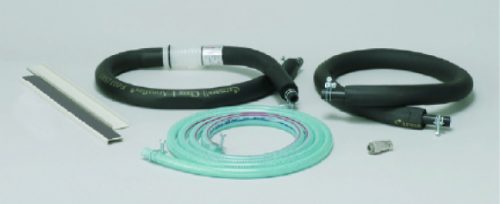

Accessories

Circulation heat insulation hose (ID 11.5mm 1m×2pcs.), Heat radiation water hose (ID12mm 3m×1pc., CTW only), Stacking support (Separated type only)
External size (mm) separated type (-S)

W291xD380xH190, W291xD342xH195
Weight separated type (-S)

16kg, 10kg
Remarks(dimensions)

Separated type
Power Source

AC220V 2A
Single phrase with step down transformer
