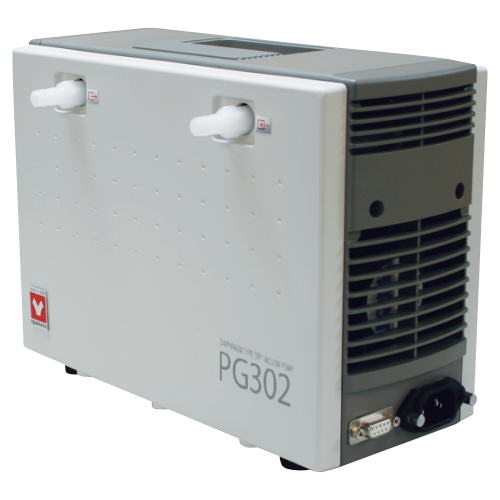

Diaphragm vacuum pump (PG302)

Description

Chemical type diaphragm type, use PTFE parts resistant to corrosion resistance

Features of Diaphragm vacuum pump (PG302)

Features: It is excellent in corrosion resistance and is suitable for sucking gas containing organic solvent
Features: The ultimate pressure has reached 1,000 Pa while being compact and lightweight.
Features: Maintenance is easy.
Features: Flow rate setting from 15L to 30L is possible by adopting a DC motor (special dedicated controller is required separately).
Features: Supports multi range with AC 100 V to 240 V (Power cable is required separately except for 100 V).

Model	PG302
Item Code	255160
Effective pumping speed (50/60 Hz)	Outer diameter 9 × inner diameter 5 mm (G 1/4)
Motor	5 to 40℃
Intake pipe diameter	15 to 30 l / min (Rated fixing 30)
Operating Ambient temperature range	AC 100 to 240 V brushless DC motor with sensor
External dimensions（W×D×H mm）	142×289×217mm
Power Source	AC100V /220V Single phase with step-down transformer
Weight	5.5kg
