Description

Double Chamber Low Temperature Incubator and each chamber is programmable individually

Features of Double Chamber Incubator (Low Temp.) (IQ822)

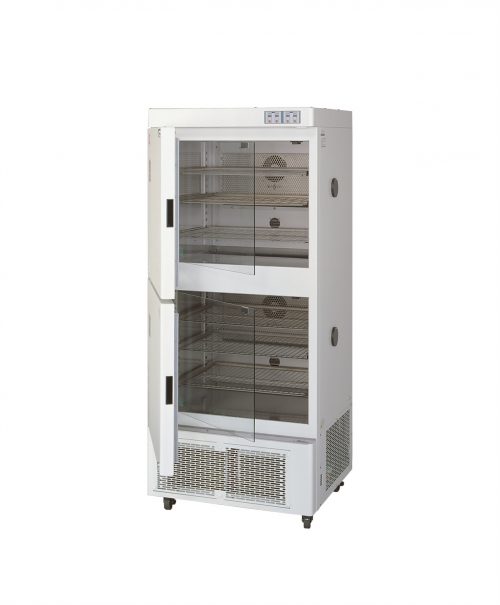

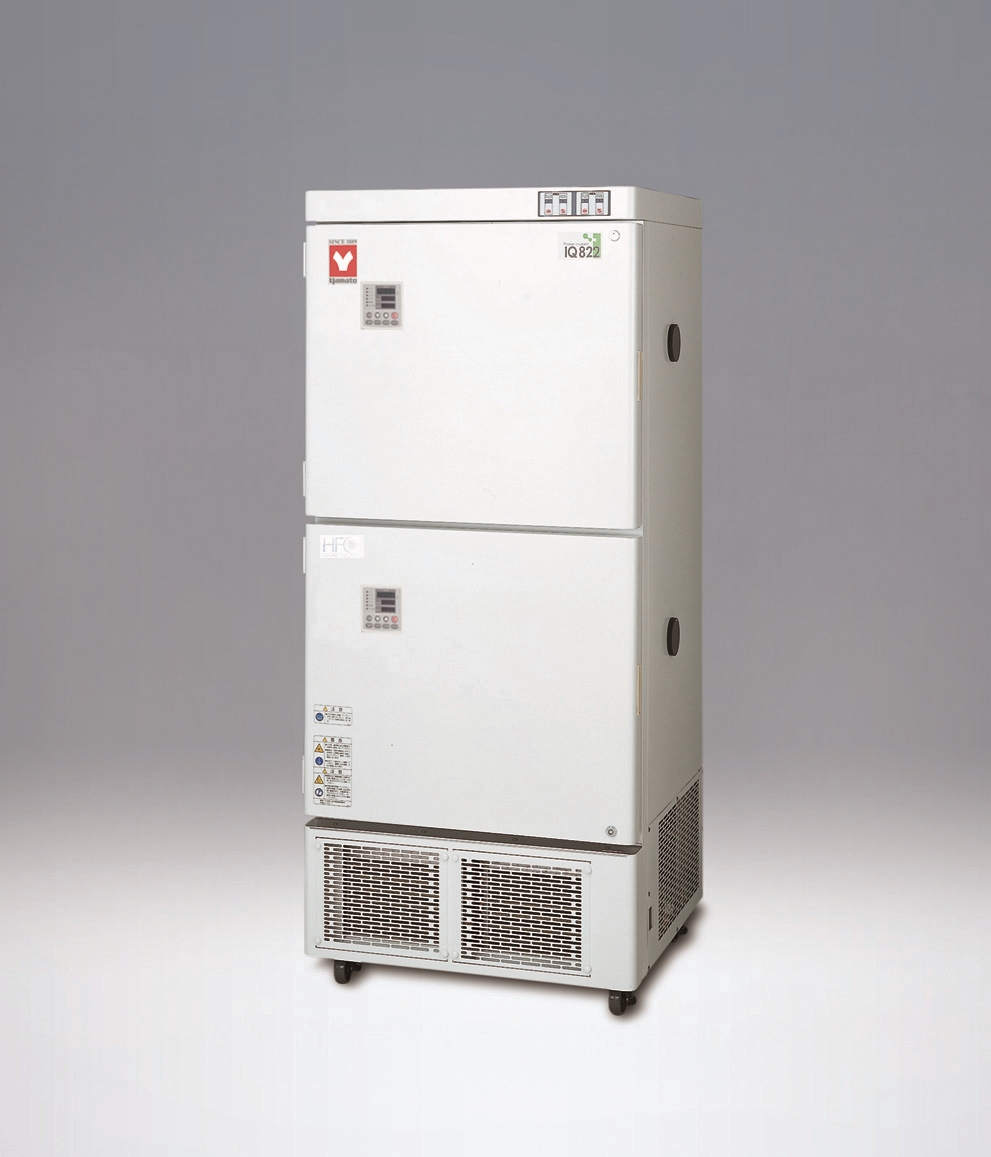

Double Chamber Low Temperature Incubator
Control panel on the door makes operation easier.
Feature
Six programs can be registered from 30 to 10 steps according to specific tests including incubation – storage process.
Feature

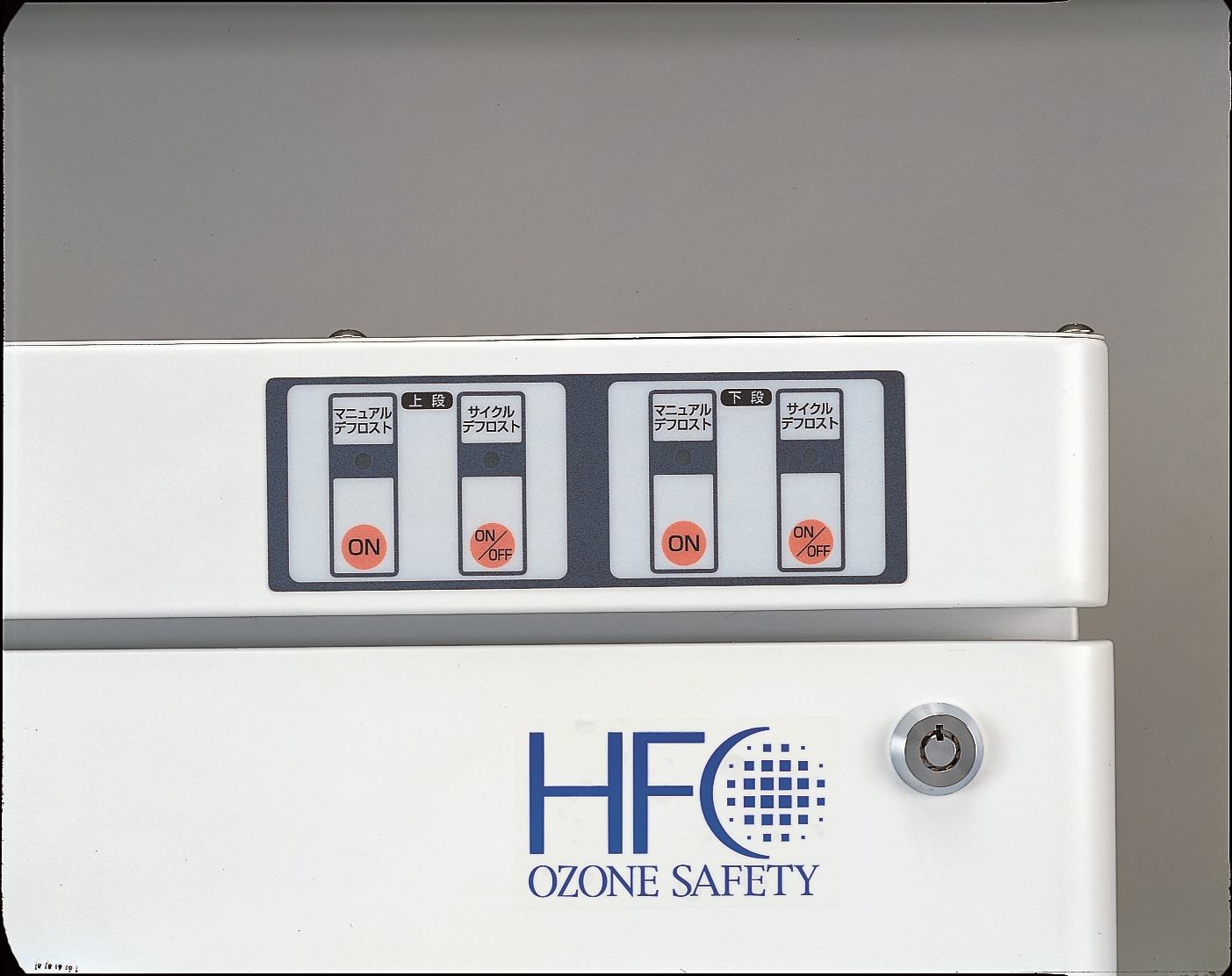

Simple pressing of the special button allows setting of the manual defrosting operation in addition to cycle defrosting operation (Fixed).
Feature
Large cable port of I.D. 50 mm on each chamber
Feature
Comprehensive safety functions including self diagnostic function, Key lock function, electric leakage breaker with over current protection, overheat preventive device.

Additional information

Model

IQ822
Cable port

50mm ID（Right side from the front for upper and lower chamber）
Weight

165kg
Item Code

211309

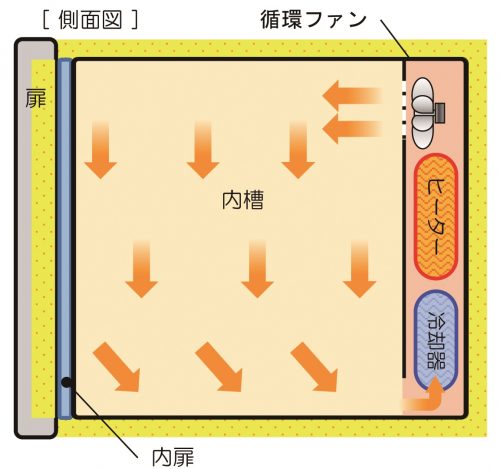

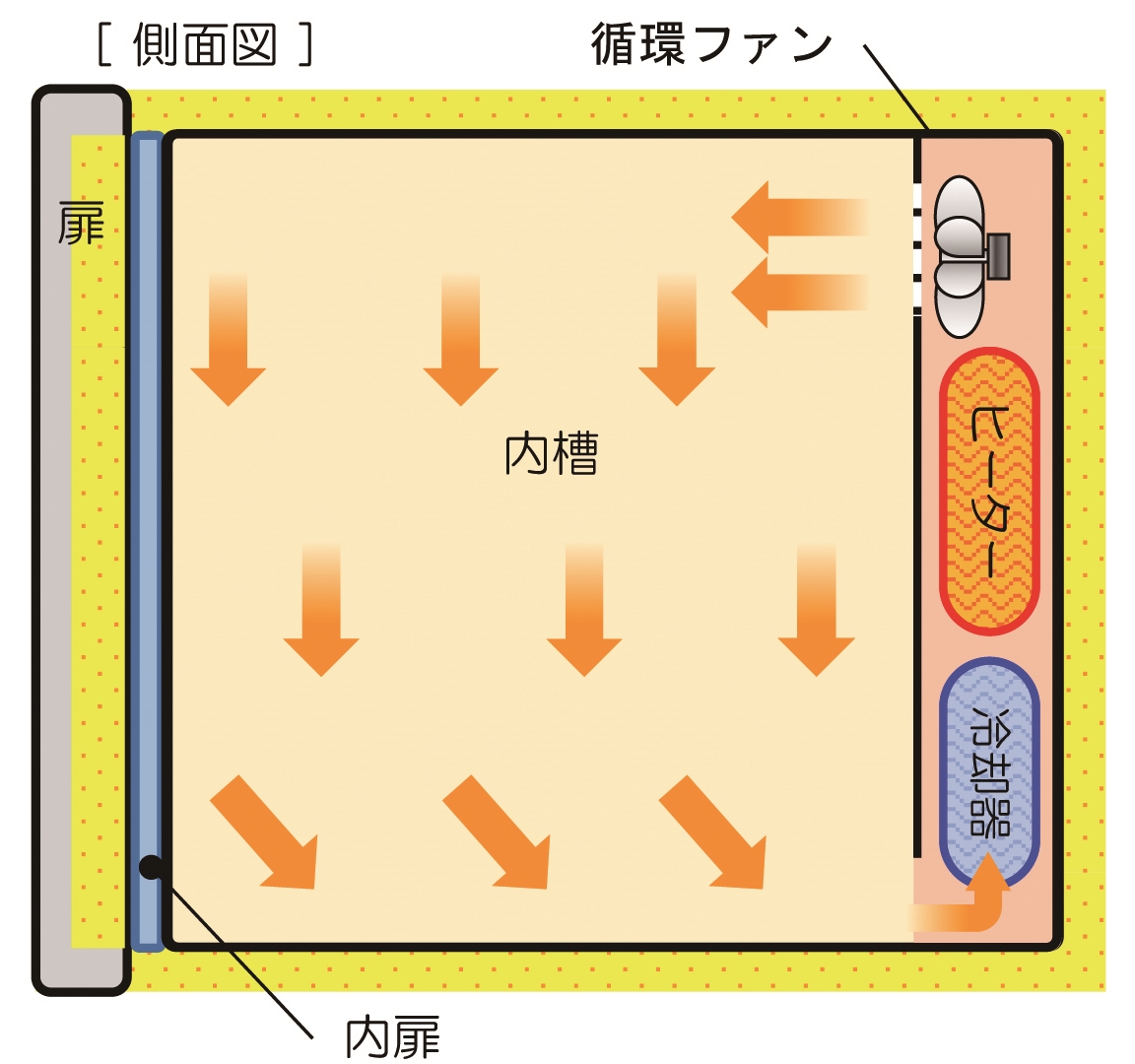

System

Forced Convection
Operating Temperature Range

-10～+50℃
Temperature adjustment accuracy

±0.3℃(During continuous refrigeration for both upper and lower chamber)
Temperature distribution accuracy

±1.0℃(at 37℃ during continuous refrigeration for both upper and lower chamber)

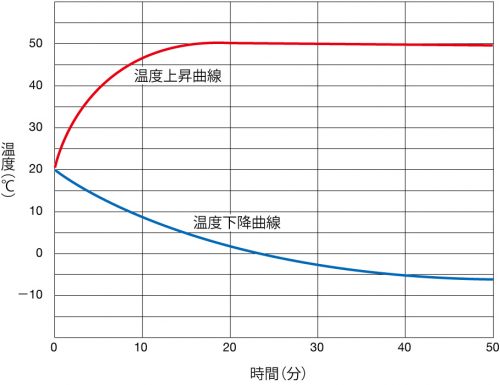

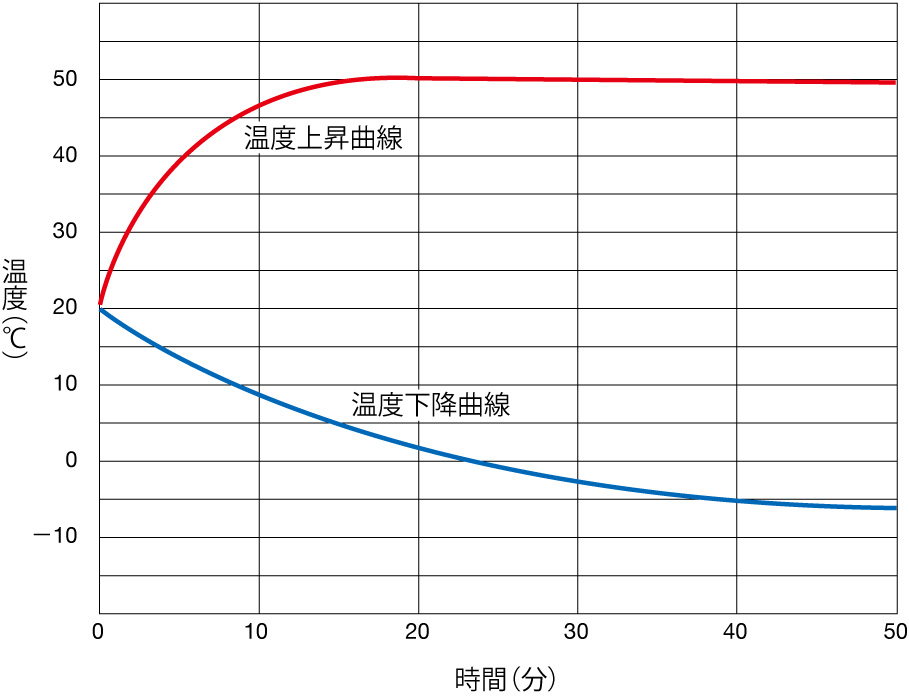

Time to reach the Max. Temp.

20～+50℃：Approx. 25min.
Time to reach the Lowest Temp.

20～-10℃：Approx. 45min.
Interior

Stainless steel
Exterior

Chrome-free electronic galvanized plated steel plate chemical-proof baking finish
Refrigerant

R404A
Defrost Operation

Manual defrost (Manual ON/ Auto OFF), Cycle Defrost
Sensor

Pt100Ω(Temperature controller), K-thermocouple(Overheat prevention device)
Temperature control

PID control
Temperature distribution accuracy 2

Digital setting attribute:Method by ▲▼ key with the dedicated select key
Temperature Display

Setting temperature: Green LED digital display, Actual temperature: 4-digit red LED digital display
Timer

1min.～99hrs. 59min. or 100～999hrs. 50min.（Timer wait function）
Operation function

Fixed, program(Max. 30 steps, 3 pattern）Auto start, Auto stop、クイックオートストップ
Additional functions

Calibration off-set function, Blackout recovery function
Safety Functions

Self-diagnostic functions (Memory error, Abnormal temp. sensor, heater disconnection, SSR short circuit, Automatic overheat preventive function), Key lock, Over-current ELB, Overheat preventor
Shelf loading Capacity

15kg / shelf
Shelf Step / Pitch

13 steps ×2 chambers / 30mm
Shelf / support

Stainless steel punching metal, 3 shelves x 2 chambers / 6pcs.× 2 chambers
Door Lock Key

2 pcs. / each chamber
Internal dimensions（W×D×H mm）

600×477×500mm
External dimensions（W×D×H mm）

710×645×1675mm
Remarks(dimensions)

143L × 2 chambers
Power Source

AC220V
Single-phase with step down transformer
