Dry Sterilizer (Laboratory use) (SK801)

Description

Dry heat sterilization with independent overheat prevention device

Features of Dry Sterilizer (Laboratory use) (SK801)

Features: Programmable
Features: High precision controller with improved
display visibility and operability
Features: Standard equipped with calibration offset,
lock function, power recovery mode,
power on and operation time accumulation,
calendar time, accumulation power
consumption monitoring, total CO2 emission,
and heat output, save and access
operator setting information
Features: Maximum 99 steps, 99 patterns, repeat
operation
Features: Easy sample data collection with cable port
Safety features: Standard equipped with self diagnostic
functions, independent overheat prevention
device and earth leakage breaker

Model	SK801
Item Code	212911
Weight	108kg

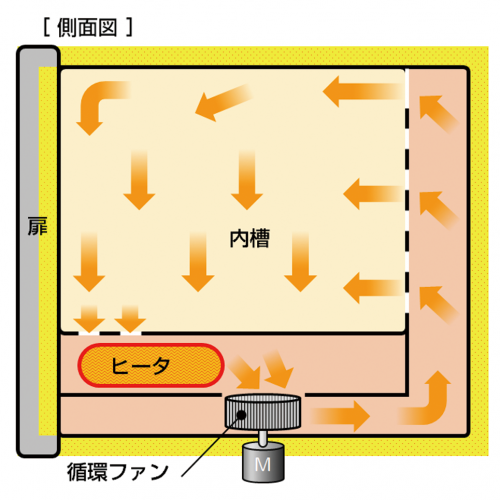

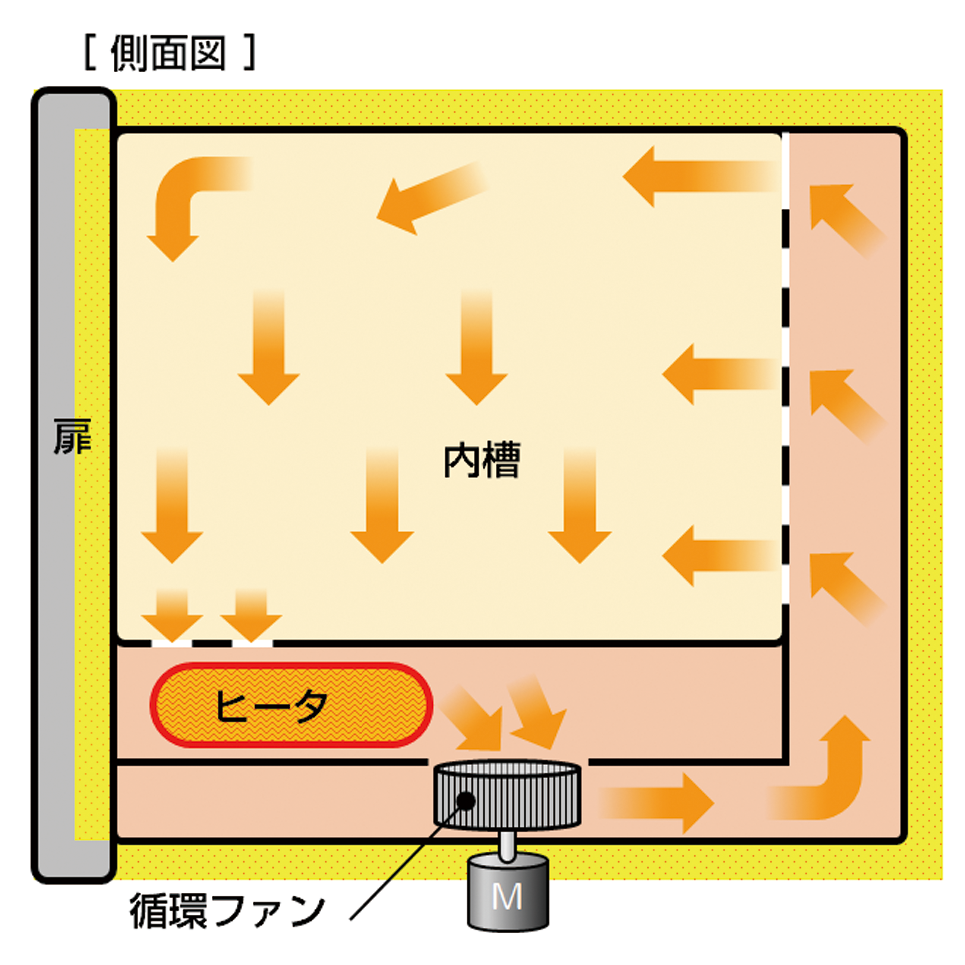

Circulation method	Forced convection
Temp. setting range	Room temp. +10~210°C
Temp. control accuracy	±1℃（at 210℃）JTM K05
Temp. fluctuation	2℃（at 210℃）JIS

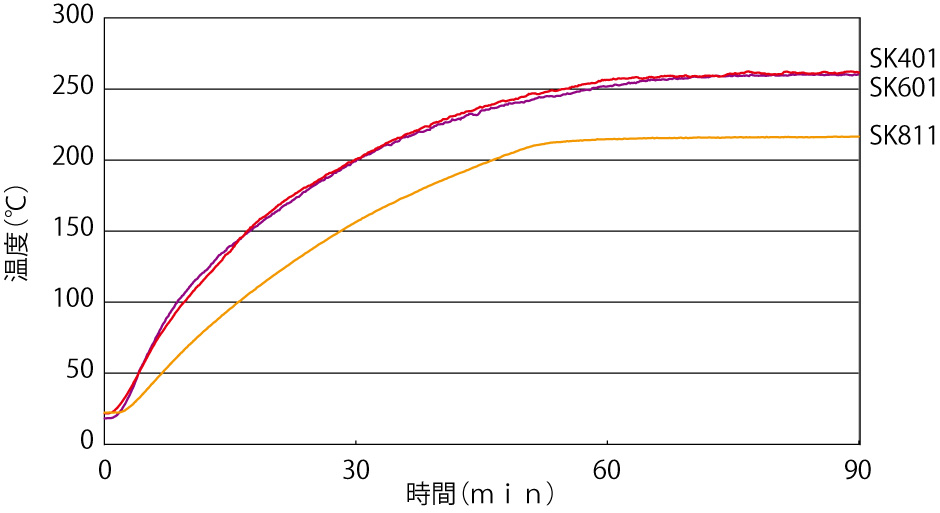

Temp. rising time	Approx. 60min.
Interior / Exterior material	Stainless Steel / Chrome free electrogalvanized carbon steel sheet coated with chemical-proof baked-on finish
Insulation Material	Glass wool
Heater	SUS 2.4kW
Sensor	K type Thermocouple
Fan type / Fan motor	Sirocco Fan / Condenser type motor 30W
Cable port	I.D. 33mm (right side)
Exhaust port	I.D. 33mm×2 (back side)
Temperature control	PID control by microprocessor
Temperature display	Temp. display: Green 4-digit LED digital display (increment: 1°C)
Timer	0 min~99 hrs 59 min (increment: 1 min. or 1 hr.)
Operation function	Fixed temperature, Auto start, Auto stop, Quick auto stop, Program (99 steps, 99 patterns, Repeat operation function)
Additional function	Power on and operation time accumulation function (up to 65535 hours), Calendar time (24 hours), Calibration offset,
Safety device	Self-diagnostic functions (Sensor failure, SSR short circuit, Heater failure, Main relay contact failure, Automatic overheat prevention),
Internal dimensions（W×D×H mm）	600×500×1000mm
External dimensions（W×D×H mm）	710×650×1640mm
Remarks(dimensions)	Internal capacity　300L
Power Source	AC115V 22A
