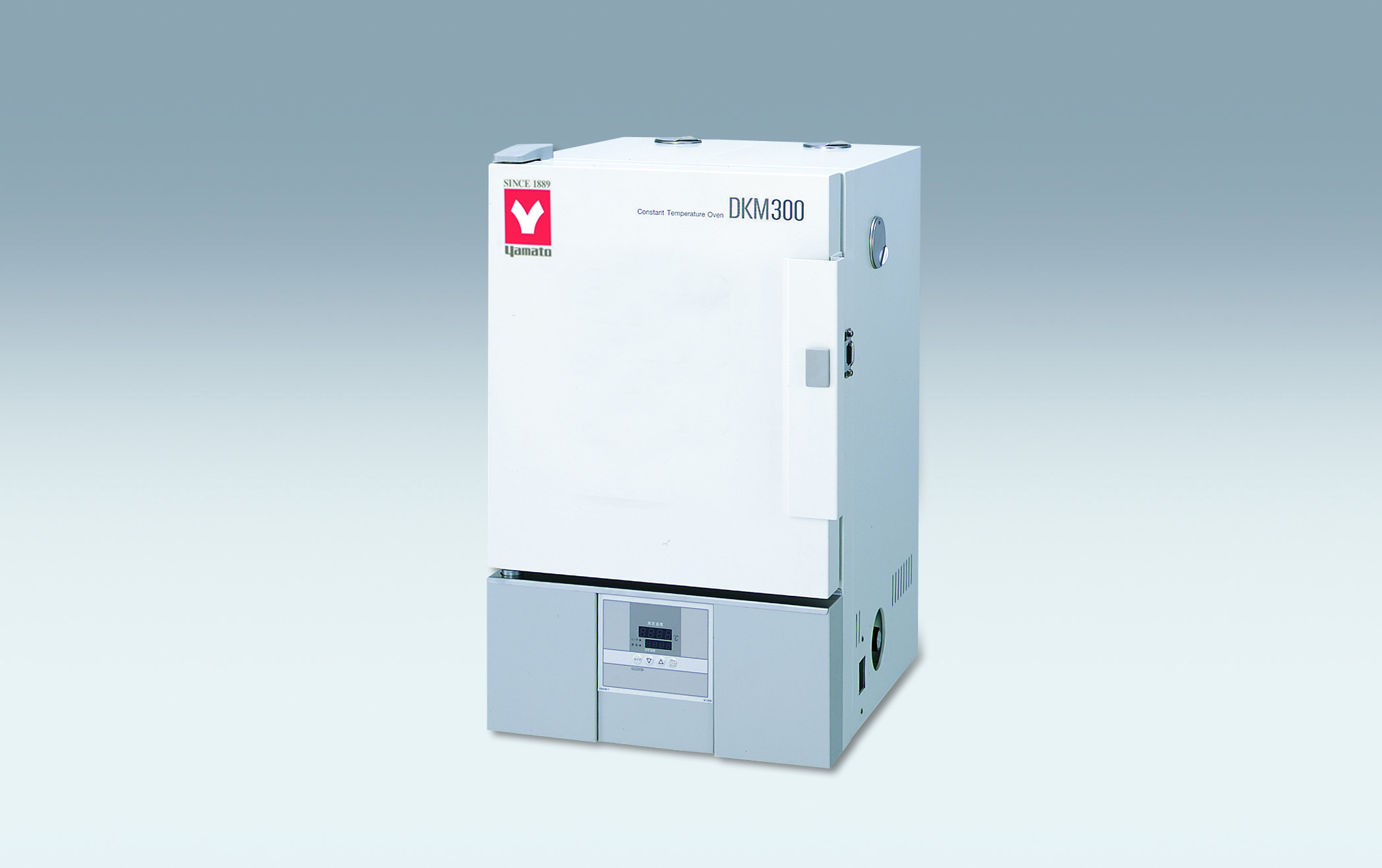

Economical Forced Convection Oven (DKM300)

Economical Forced Convection Oven (DKM300)

Forced Convection Oven (DKN812)Industrial Forced Convection Oven (Silicorn/Fluoro-rubber Gasket) (DKG850V)
Category:
Download Brochure

Description

Basic fixed setting forced air convection ovens

Features of Economical Forced Convection Oven (DKM300)

Basic fixed setting forced air convection ovens
Forced convection, constant temperature oven with simple operation functions.
Feature
Fixed temperature, Quick Auto stop, Auto stop, and Auto start operating modes are possible, along with easy control capabilities
Feature
Settings can be made digitally using the dedicated operation menu keys or the up and down keys
Feature
Auto recovery after power failure, calibration offset and key-lock are possible through the auxiliary functions
Safety features
Self-diagnostic functions, Auto overheat prevention, Independent overheat prevention

Additional information

Model

DKM300
Temp. controller

PlD control by microprocessor
Internal dimensions（W×D×H mm）

300×300×300mm

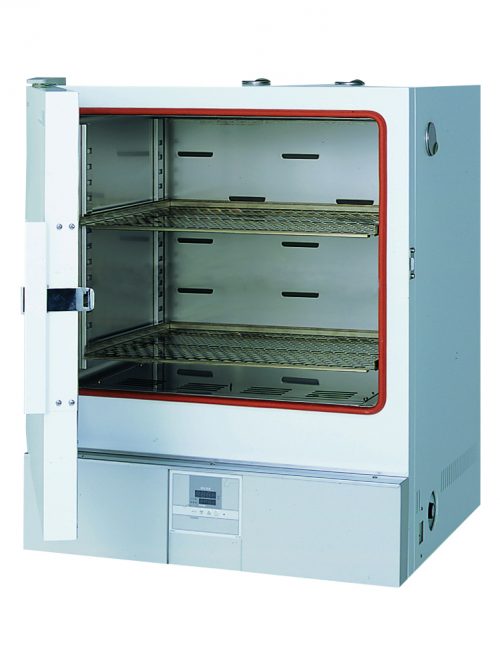

Shelf support

4 pcs.
Shelf plate quantity

2 pcs.
Shelf plate

Stainless steel
Shelf support pitch

30mm
Temp. setting method

Operation menu key and digital setting by UP/DOWN key
Safety device

Self diagnostic functions (Sensor trouble detection, Memory error, Measured temperature lower limit error, Measured temperature error), Auto overheat prevention, Independent overheat prevention.
Shelf plate with standard load

15kg/pc.
Heater circuit control

SSR control
Additional functions

Calibration off-set function, Key lock, Uninterruptible power for memory
Operation functions

Fixed temperature operation, Quick Auto-stop, Auto start, Auto stop
Timer

1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. 50 min. (with time wait function)
Weight

35kg
External dimensions（W×D×H mm）

410×451×670mm
Internal capacity

27L
Shelf support step number

6 steps

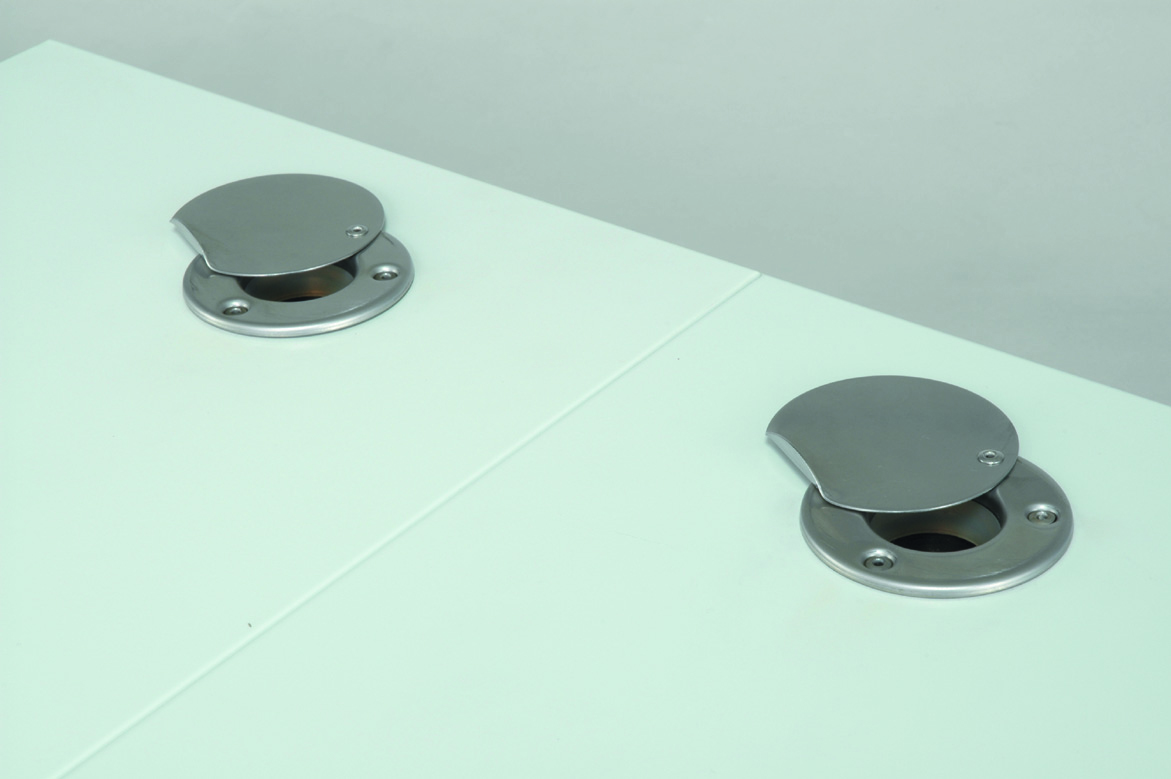

Exhaust port

30 mm l.D.×2 pcs.(the top)
Operating Temperature Range

Room temp. +10~260°C
Heater Power

0.8kW
Heat insulating material

Glass wool
Exterior material

Cold rolled steel plate with melamine resin baking finish
Interior material

Stainless Steel

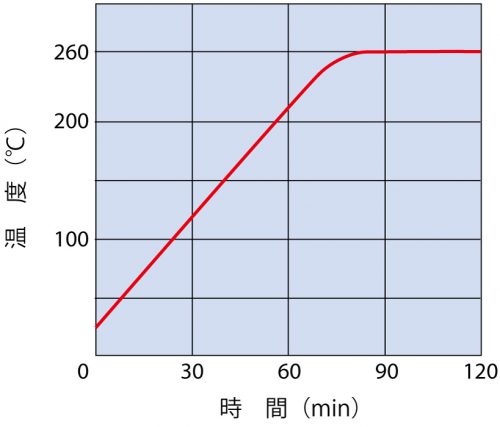

Max. temp. reaching time

Approx. 90 min. (at room temp. +10°C~260°C)
Temp display method

Measurement temp. : Digital display by green LED　Setting temp. : Digital display by red LED
Temp. control accuracy

±1°C (at 210°C)
Temp. distribution accuracy

±2.5℃（at 210℃）

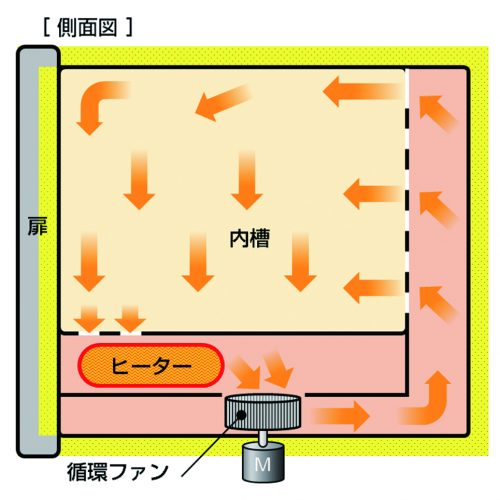

Circulation Method

Forced air circulation
Item Code

212876
Power Source

AC220V 4A
Single-phase
Heater

SUS pipe heater
Sensor

K-thermocouple

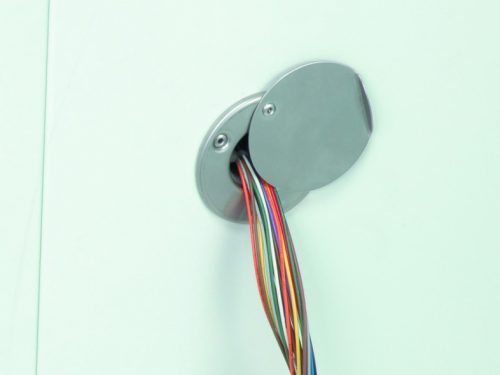

Cable port

30 mm l.D.×1 pc. (right side)
Fan type / Motor

Scirocco fan / Condenser type motor
