Best-selling incubator for long years, various capacity

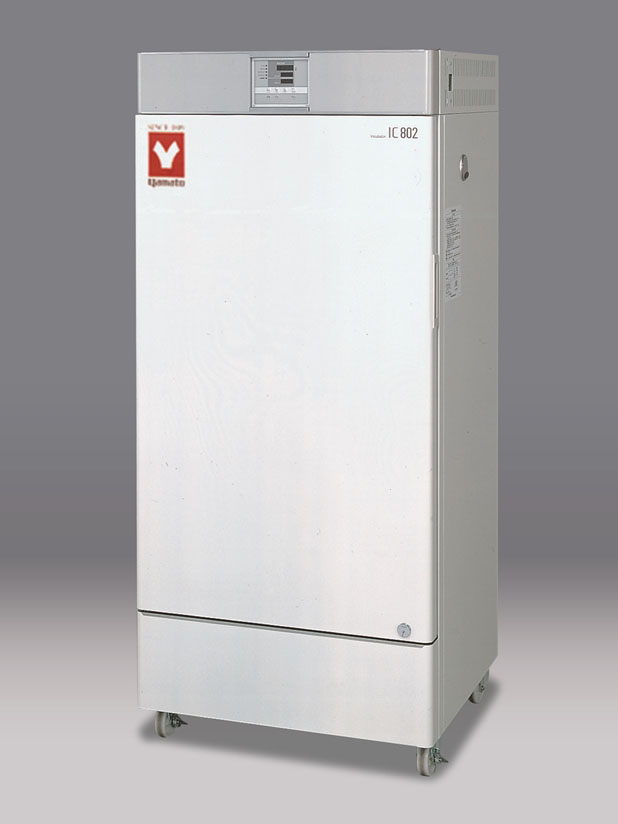

Features of Economical Incubator (Natural Convection) (IC802)
| Model | IC802 |
|---|---|
| Temp. setting method | Digital Setting by ▼▲ Key |
| Weight | 102kg |
| Item Code | 211197 |
| Type | Air Jacket Type, Natural Convection |
| Temperature Range | Room Temp. +5～80℃ |
| Temp. adjustment accuracy | ±0.5℃ at 37℃ |
| Temp. distribution accuracy | ±1.0℃ at 37℃ |
| Interior | Stainless Steel |
| Exterior | Cold Rolled Steel Plate with Chemical-resistant Coating |
| Inner Glass Window | Glass wool |
| Heater | 0.7 kW |
| Exhaust port | 30mm ID x 2 (one each side) |
| Temp. control method | PID cntrol |
| Temp. display | Measuring Temp.: Green 4 digit LED Digital Display / Setting Temp.: Red 4 digit Digital Display |
| Timer | 1 to 99hrs 59min. and 100 to 999.5hrs (with Timer Wait Function) |
| Operating Function | Fixed Temp., Quick Auto-stop Operation, Auto-stop Operation, Auto-start Operation |
| Additional Function | Calibration offset, Key-lock Function, Blackout Recovery Function |
| Sensor | Temp. Control: Pt. Thermal Resistance Pt100Ω, K-Thermcouple: Overheat Preventor |
| Safety device | Self Diagnostic Function（Automatic Overheat Prevention, Abnormal Temp. Sensor, Heater Disconnection, SSR Short Circuit, Overheat Preventor, Overcurrent ELB, Key-lock Function |
| Shelf loading Capacity | Approx. 15kg/shelf |
| Shelf support step number/Pitch | Max. 29 steps / 30mm |
| Shelf/ Support | 4 shelves/ 8 supports |
| Internal dimensions（W×D×H mm） | 600×530×1000mm |
| External dimensions（W×D×H mm） | 710×656×1619mm |
| Remarks(dimensions) | 318L |
| Power Source | AC220V 4A |
