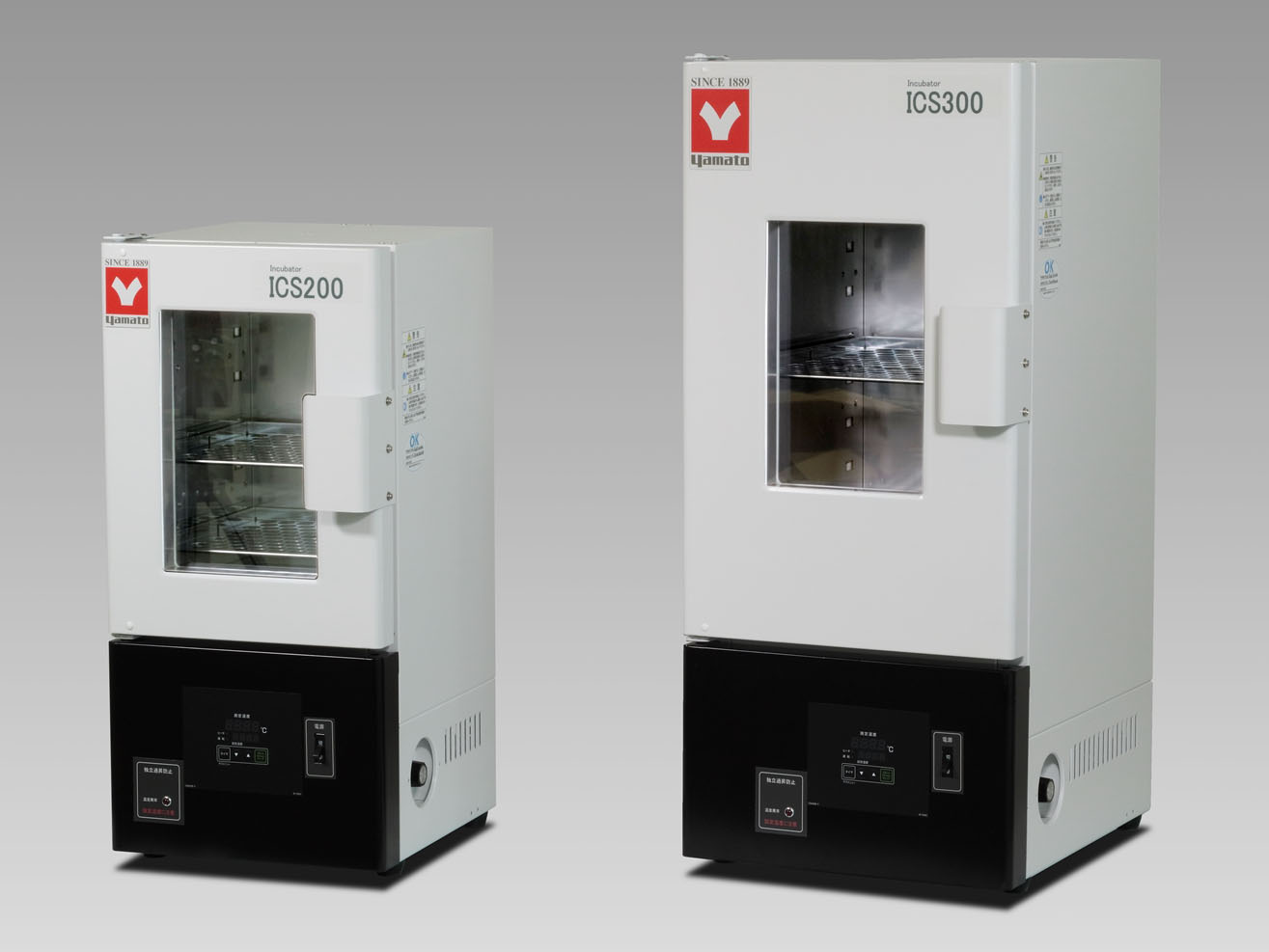

Economical Incubator (Natural Convection, Slim Type) (ICS200)

Economical Incubator (Natural Convection, Slim Type) (ICS200)

Description

Slim Type Incubator

Features of Economical Incubator (Natural Convection, Slim Type) (ICS200)

Features
Compact Setting Space.
Observation window (Double glass) is included as standard.
Temperature adjustment is achieved through PID control (microprocessor).
Auto-start, Auto-stop, and Timer features.
The unit has several safety features, such as Independent Overheat Prevention, Abnormal Overheating Prevention, Alarm for Sensor Input, Short Circuit Breaker.

Additional information

Model

ICS200

Door

Chrome-free electrogalvanized steel plate with melamine resin baking finish with Double Glass Observation Window

Weight

20kg

Item Code

211105

Convection Type

Air Jacket Type

Operating temp. range

Room Temp. +5 to 70deg.C

Temp. adjustment accuracy

±1deg.C (at 37deg.C)

Temp. distribution accuracy

±1deg.C (at 37deg.C)

Time to Reach to Max. Temp.

Approx. 60min.

Exterior

Steel, Baked Paint Finish 0.8t

Heat Isolation Material

Rock Wool / Styrene Foam

Heater

Iron Chrome Wire Heater, 150W

Temp. controller

PID Control by Micro Computer

Timer

0 to 999.9hrs.

Temp./Timer Display

LED Digital Display

Temp. sensor

Platinum resistance thermometer Pt100Ω

Operating Function

Fixed Operation (Automatic Start and Stop by Timer Setting)

Operation Panel

Sheet Key (LED: Temp., Timer / Lamp: Heater, Temp. Abnormal) Main Switch (Electric Leakage Breaker)

Additional Function

Calibration Off set function, Power failure return mode

Safety Countermeasure

Independent Overheat Prevention by Liquid Pressure Type, Individual Overheat Prevention, Heater Wire Broken/Sensor Input Alarm, Electric Leakage Breaker, Key Lock Function

Internal dimensions(W×D×H mm)

240×250×340mm

External dimensions(W×D×H mm)

320×340×685mm

Remarks(dimensions)

20L

Power Source

AC220V 0.7A
Single-phase with step down transformer
