Description
Easy to use, digital setting, compact design oil bath
Features of Economical Oil Bath (BO601)
- Features
- Digital temperature setting by ▲/▼ keys.
- Features
- Protected oil tank prevents burns caused by contact.
- Features
- Equipped with a drain.

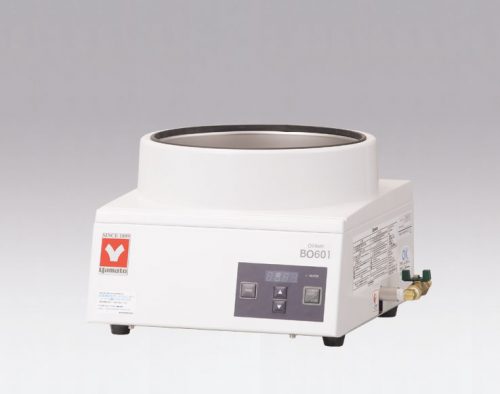

Economical Oil Bath (BO601)
Economical Oil Bath (BO601)
Additional information
| Model | BO601 |
|---|---|
| Item Code | 222118 |
| Weight | 8kg |
| Operating temp. range | Room temp. +5 to 180°C |
| Temp. control accuracy | ±0.3℃ (at 100°C) |
| Temp. control system | PlD control by microprocessor |
| Temp. setting / display method | Digital setting by ▲/▼ keys |
| Operation function | Fixed temperature, Quick autostop, Auto stop, Auto start |
| Heater | SUS316 pipeheater 1kW |
| Sensor | K thermocouple |
| Safety device | Bath protection cover |
| Safety device 2 | Self-diagnostic function (Automatic overheat prevention, Temperature sensor error, Triac short circuit, heater disconnection, Main relay failure), Circuit protector, Thermal fuse |
| Interlocking control function | – |
| Additional function | Keypad lock, Power failure recovery, Calibration off-set |
| Accessories | Shelf |
| Internal dimensions（φ×H mm） | φ250×150mm |
| External dimensions（W×D×H mm） | 310×360×230mm |
| Remarks(dimensions) | Tank maximum inner diameter 250×D150mm approx. 7L |
| Power Source | AC220V 7A |
