Economical Water Bath (Constant Temp.) (BM200)

Description

Stand, clamp and lid are standard equipment, round · Erlenmeyer flask are usable as well.

Features of Economical Water Bath (Constant Temp.) (BM200)

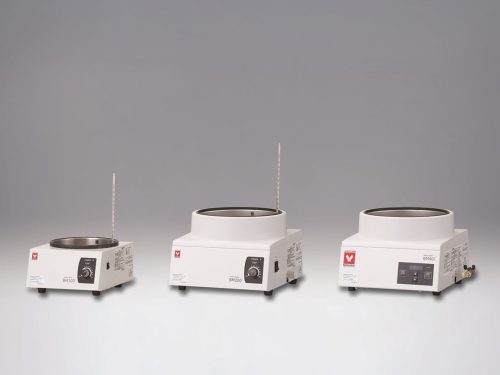

Features: BM100/200 : Analog set up system, Thermometer is included to verify actual temperature, Protected water tank prevents burns caused by contact, Equipped with a drain (BM200).
Features: BM401: Digital temperature setting by ▲/▼ keys, Protected water tank prevents burns caused by contact, Equipped with a drain.
Features: BM500/510 : Digital temperature setting by ▲/▼ keys, Removable water tank for convenient cleaning and changing of water, Heater situated outside the water tank, Exclusive connection for bath operational setting function with RE601/801 rotary evaporator.

Model	BM200
Item Code	222107
Weight	6kg
Operating temp. range	Room temp. +5~95°C
Temp. adjustment accuracy	±2°C (at 60°C)
Temp. control system	ON/OFF control
Temp. setting / display method	Analog setting (Glass thermometer indication)
Additional function	―
Heater	SUS316 pipe heater 1kW
Sensor	Liquid expansion type
Safety device	Bath protection cover, Overcurrent protection (fuse: 15A), thermal fuse
Interlock control function	―
Accessories	Bar thermometer (10~110°C) with immersion line
Internal dimensions（φ×H mm）	φ250×150mm
External dimensions（W×D×H mm）	310×360×230mm
Remarks(dimensions)	Water bath Approx. 7L
Power Source	AC115V/220V Single phase with step-down transformer
