Stand, clamp and lid are standard equipment, round · Erlenmeyer flask are usable as well.

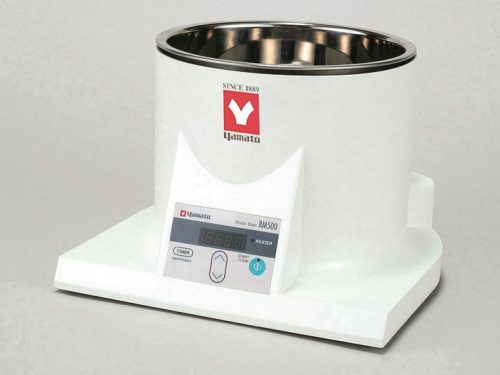

Features of Economical Water Bath (Constant Temp.) (BM500)
| Model | BM500 |
|---|---|
| Item Code | 222120 |
| Operating temp. range | Room temp. +5~90°C |
| Temp. adjustment accuracy | ±1.5°C (at agitation) |
| Temp. control system | PlD control by microprocessor |
| Temp. setting / display method | Digital 7 segment LED, Digital setting by ▲/▼ keys |
| Additional function | Keypad lock, maintenance function (RE signal transmission and reception), calibration off-set, power failure recovery |
| Heater | 1kW (100V) 1.44kW (120V) |
| Sensor | K thermocouple |
| Safety device | Self-diagnostic functions (automatic overheat prevention, sensor trouble, triac short circuit,heater disconnecton, main relayfailure), circuit protector, thermalfuse, micro switch to detectheating without water |
| Interlock control function | Automatic control by signal reception from RE 600/800 controller (operation continuation, heat retention operation, stop), error declaration to RE 600/800 |
| External dimensions（W×D×H mm） | 340×349×231mm |
| Remarks(dimensions) | Max. I.D.240×bottom, Dia165×D122mm, Approx. 4L |
| Power Source | AC100 to 120V 10.5 to 12.5A |
| Weight | 5.5kg |
