Description

Highly reliable accuracy oven with simple settings for various temperature characteristics test that require complicated programming.

Features of Fine Oven (DF412)

Features
Simple Operation by Interactive Key Input.
Features
Operation Monitor visualizes Controller Status, Temp and Temp. Changing.
Features
Incorporates with maximum 99 steps, 99 patterns program controller with repeat function.
Features
Loaded with Total Operation Hours Timer.
Features
Exhaust damper allows quick exhaust and cooling of inside.
Features
Accumulated timer function useful for maintenance and management is equipped as standard.
Features
Cable port useful for a monitor for temperature during testing is equipped as standard.

Additional information

Model

DF412
Additional functions

Calendar timer (max. 24 Hrs.), Integration time (max. 65535Hrs.), Clock, Calibration off-set, Display the amount of Power consumption
Additional functions 2

CO2 discharge/Heater operation amount, Power failure recovery mode, User setting information save and recall, Wind velocity changeable function
Power Source

AC220V 10A
Single-phase
Remarks(dimensions)

91L
External dimensions（W×D×H mm）

1050×630×850mm
Internal dimensions（W×D×H mm）

450×450×450mm
Accessories Shelf support

4 pcs
Accessories Shelf

2 pcs
No.of shelf stages/peg pitch

9 stages/45 mm
Safety device

Self diagnosis functions(Sensor, Fan, Heater, Relay, Triac, Automatic overheat prevention), Independent overheat prevention, Key lock function, Electric leakage breaker, Door switch
Heat insulator

Glass wool
Cable port

I.D. 33 mm x 1 pc (rear)
Blower fan (motor)

Axial flow fan (capacitor motor)
Heater

Stainless pipe heater
Operation and manipulation functions

Fixed temp., Auto-start, Auto-stop, Quick auto stop, program (Max.99 steps, 99 patterns, repeat)
Sensor

Double K-thermocouple
Timer display range

1 min. to 99 hr 59 min. and 24hr. setting
Temp. and time setting system

Digital Setting by UP/DOWN Key
Temp. control system

PID control with a micro computer
Time to attain max. temp.

Approx. 50 min. (to 260℃)
Temp. Gradient (JIS)

10℃（at 260℃）
Temp. distribution accuracy (JTM K05)

±1.5℃（at 260℃）
Temp. fluctuation (JIS)

1.0℃（at 260℃）
Temp. control accuracy (JTM K05)

±0.1℃（at 260℃）
Operating temp. range

Room temp. + 15 to 260℃
System

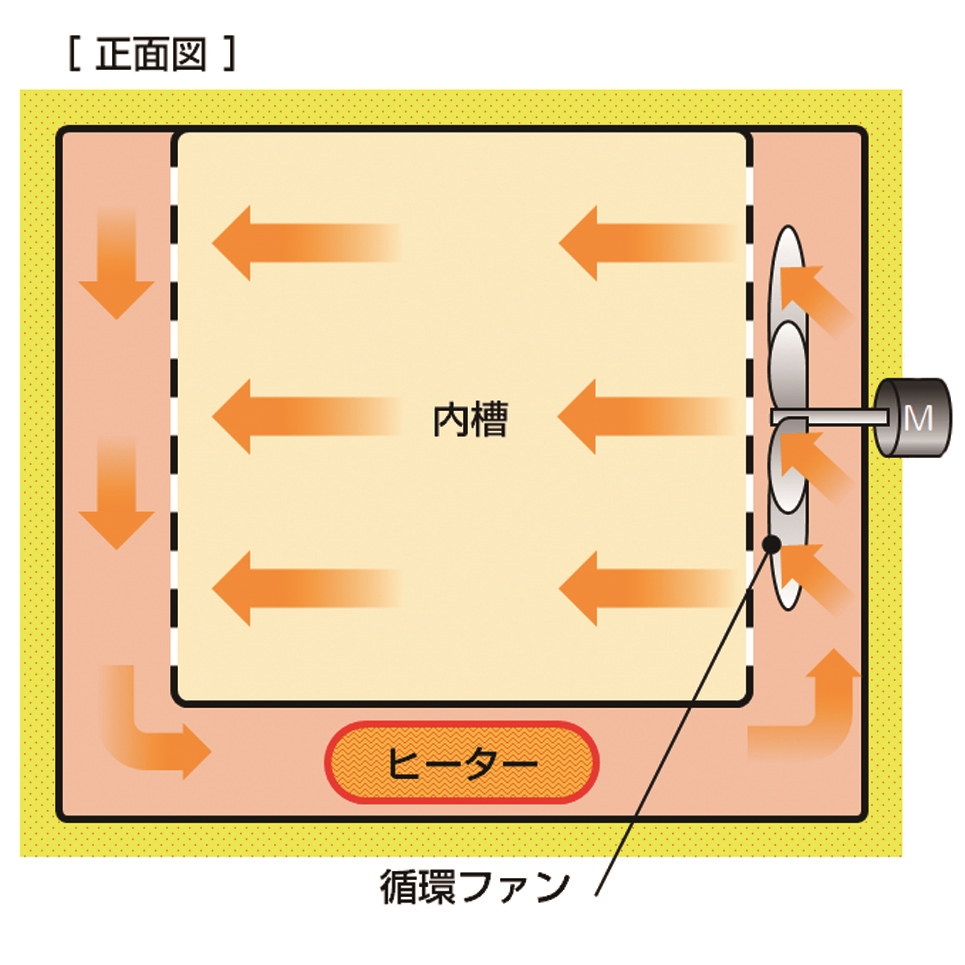

Forced convection and ventilation
Item Code

211780
Weight

112kg
