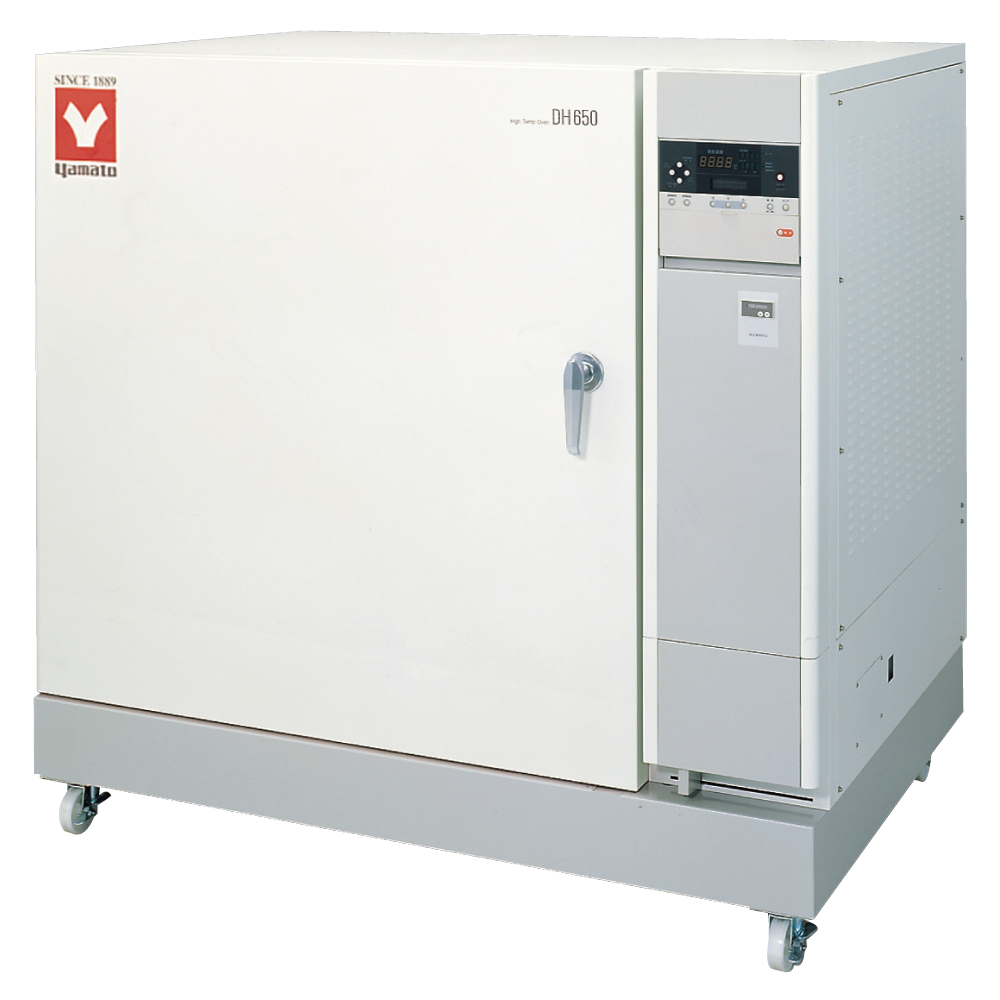

Fine Oven (High Temp., 500℃) (DH650)

Description

Fine constant temp. oven of max. working temp. 500°C.

Features of Fine Oven (High Temp., 500℃) (DH650)

Fine constant temp. oven of max. working temp. 500°C.: Easy operation, available for fixed temp., program, quick auto stop, auto stop and auto start operations.
Features: Use specialized function menu key and up/down key to set. With repeat function, the program controller has 3 segments and 30 steps.
Features: Use submenu key to operate overheat protector, deviation correction and key lock.

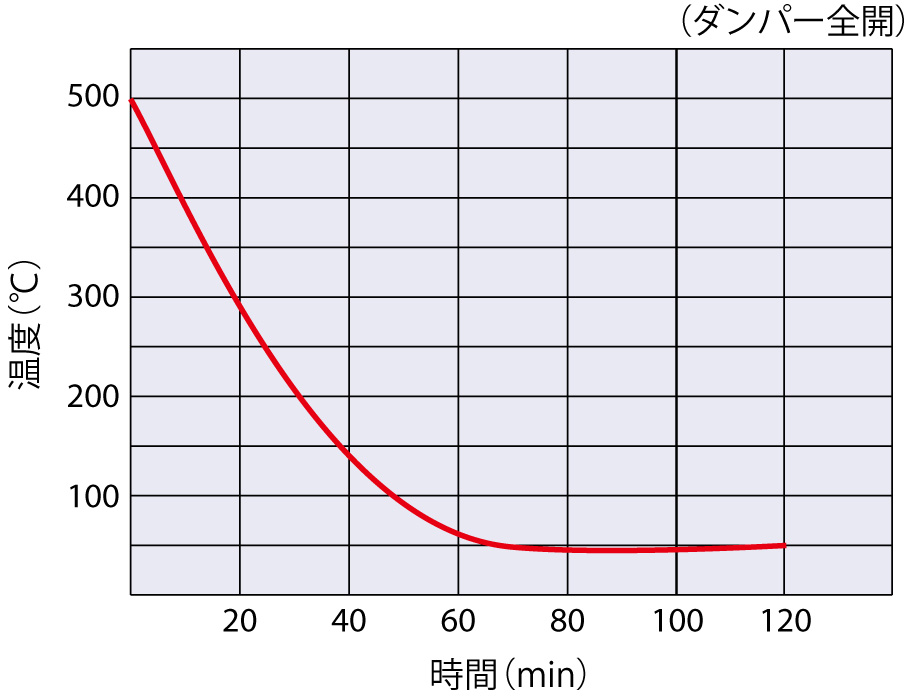

Features: Allows quick exhaust and cooling in the unit with the exhaust damper.
Safety Protect: Self-diagnosis circuit (abnormal temp. sensing, heater disconnection, auto overheat prevention, SSR short circuit), overheat protector, electric leakage breaker, key lock, etc.

Model	DH650
Exhaust port/Cable hole	I.D. 80mm with damper x 1 pc. (at back)
Weight	250kg
Item Code	211140

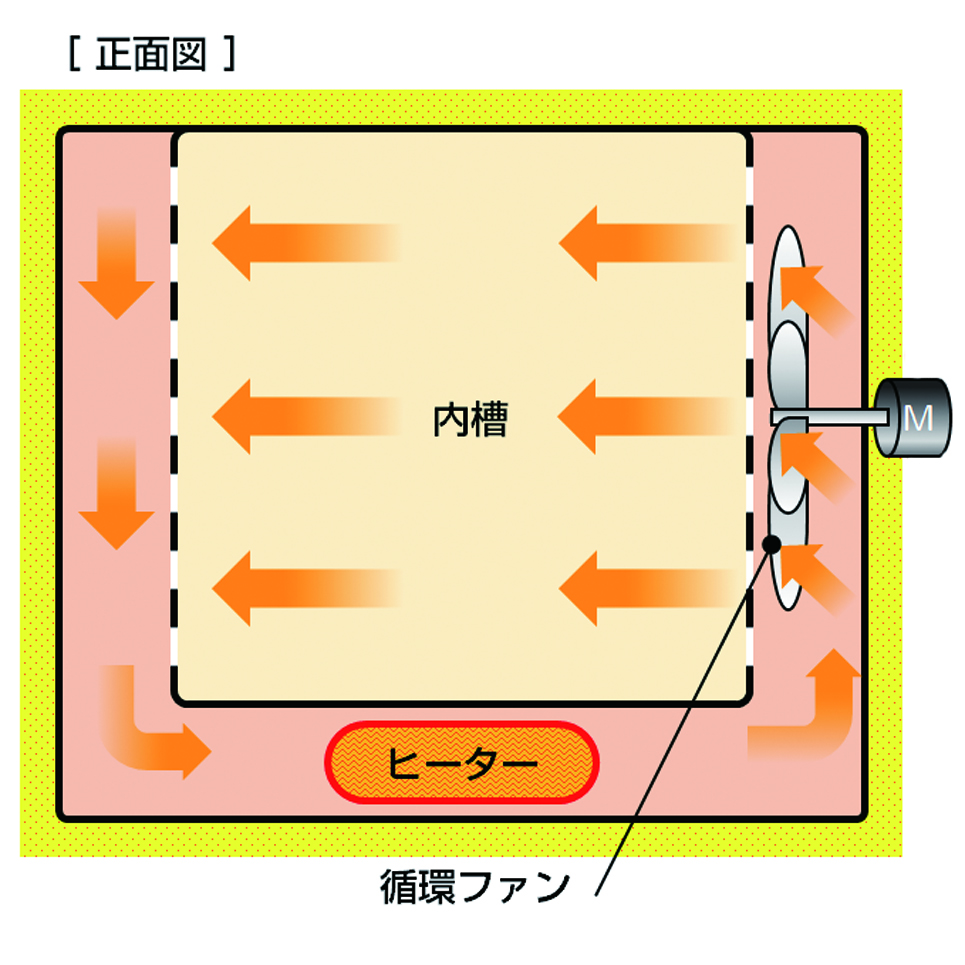

Method	Forced convection circulation
Operating Temperature Range	Room temp. +10~500°C
Temp. control accuracy	±0.5℃（at 500℃）
Temp. distribution accuracy	±3℃（at 300℃）、±5℃（at 500℃）

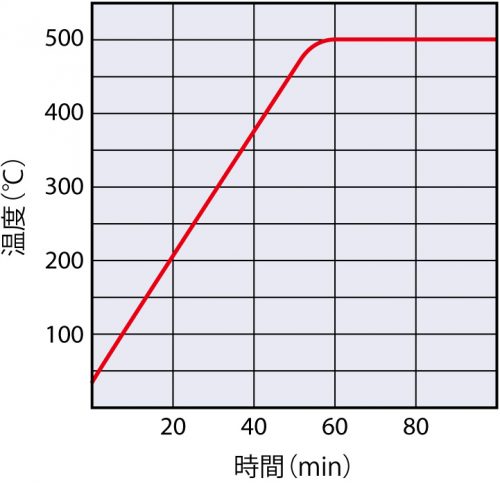

Max. temp. reaching time	Approx. 60min （at 500℃）
Interior material	Stainless steel plate
Exterior material	Cold rolled steel plate with chemical proofing coating
Heater	Alloy heating wire, 7.8KW
Insulating material	Ceramic fiber block, Heat insulation block, Rock wool
Blow fan / motor	Propeller fan / Condenser type motor
Heater circuit control	SSR driving
Sensor	K thermocouple (Temp. controller and overheat protector)
Damper	Circulation, Exhaust control by manually
Safety device	Self-diagnosis circuit (Abnormal temp. sensing, Heater disconnection, Auto overheat prevention, SSR short circuit), Overheat protector, Overcurrent ELB, Key lock.
Additional functions	Calibration offset, Key lock, External alarm
Shelf plate with standard load	30kg / piece
Shelf support step number/pitch	9 steps / 60mm
Shelf plate	Stainless steel wire shelf 3 pcs
Shelf support	6 pcs
Internal dimensions（W×D×H mm）	600×600×600mm

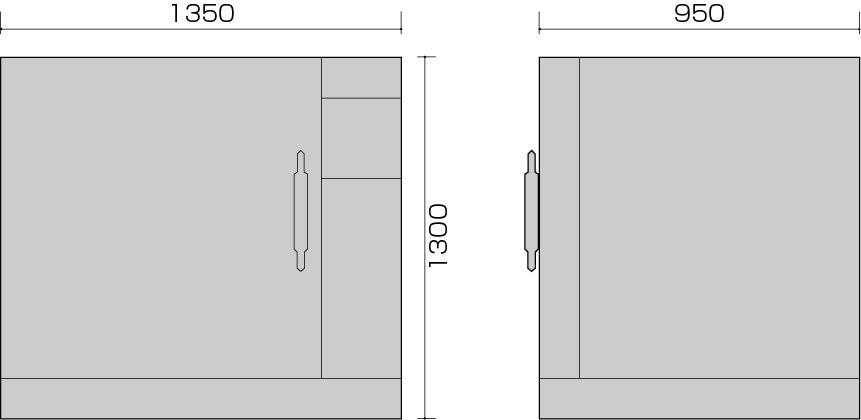

External dimensions（W×D×H mm）	1350×950×1300mm
Remarks(dimensions)	216L
Power Source	AC380V 12.5A Three-phase
