Fine Oven (with Explosion Vent) (DF412S)

Fine Oven (with Explosion Vent) (DF412S)

Description

Fine oven with an explosion preventive vent door.

Features of Fine Oven (with Explosion Vent) (DF412S)

Features

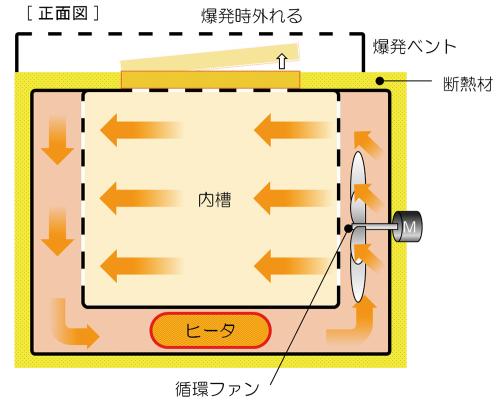

The product is equipped with a safety door to relief an explosion pressure (explosion preventive vent door) and an interlock door knob that reliably secure the main unit and the door.
Features
The product is integrated with the following interlock functions:
I) Operation can be started by closing the door with the door lock.
II) The main power will be shut off when the explosion detection switch on the ceiling is activated.
Features
Standard functions include program operation and other high precision functions.
Features
Improved safety functions include the self diagnostic function, the automatic overheat prevention function, and the key lock function

Additional information

Model

DF412S

Heater capacity

2.1kW

Weight

130kg

Item Code

211764

Method

Forced convection and ventilation

Operating temp. range

RT+10°C to 260°C

Temp. Gradient

10℃(at 260℃)

Temperature control

PID control with a micro computer

Operation & control

Fixed temp., Auto-start, Auto-stop, Quick auto stop, program (Max.99 steps, 99 patterns, repeat)

Additional functions

Calendar timer (max. 24hrs.), Integration time (max. 65535hrs.), calibration off-set, Display the amount of power consumption/CO2 discharge / Heater operation amount,

Additional functions 2

Power failure recovery mode, User setting information save and recall, Wind velocity changeable function

Temp. sensor

K-thermocouple (double sensor)

Heater

Stainless pipe heater

Fan

Axial fan (Condenser motor: 20W)

Cable port

I.D. 30mm (rear panel)

Heat insulator

Glass wool

Other Additional Function

Explosion preventive vent door

Safety Functions

Self diagnosis functions(Sensor, Fan, heater, Relay, Triac, Automatic overheat prevention), Independent overheat prevention, Key lock function, Electric leakage breaker, Door switch

Accessories Shelf

Stainless wire

Accessories Shelf 2

2pcs.

Accessories Shelf support

4pcs.

Internal dimensions(W×D×H mm)

450×450×450mm

External dimensions(W×D×H mm)

1050×620×1240mm

Remarks(dimensions)

91L

Power Source

AC220V 10A
Single-phase
