Economically-priced, space-saving forced convection constant temperature ovens

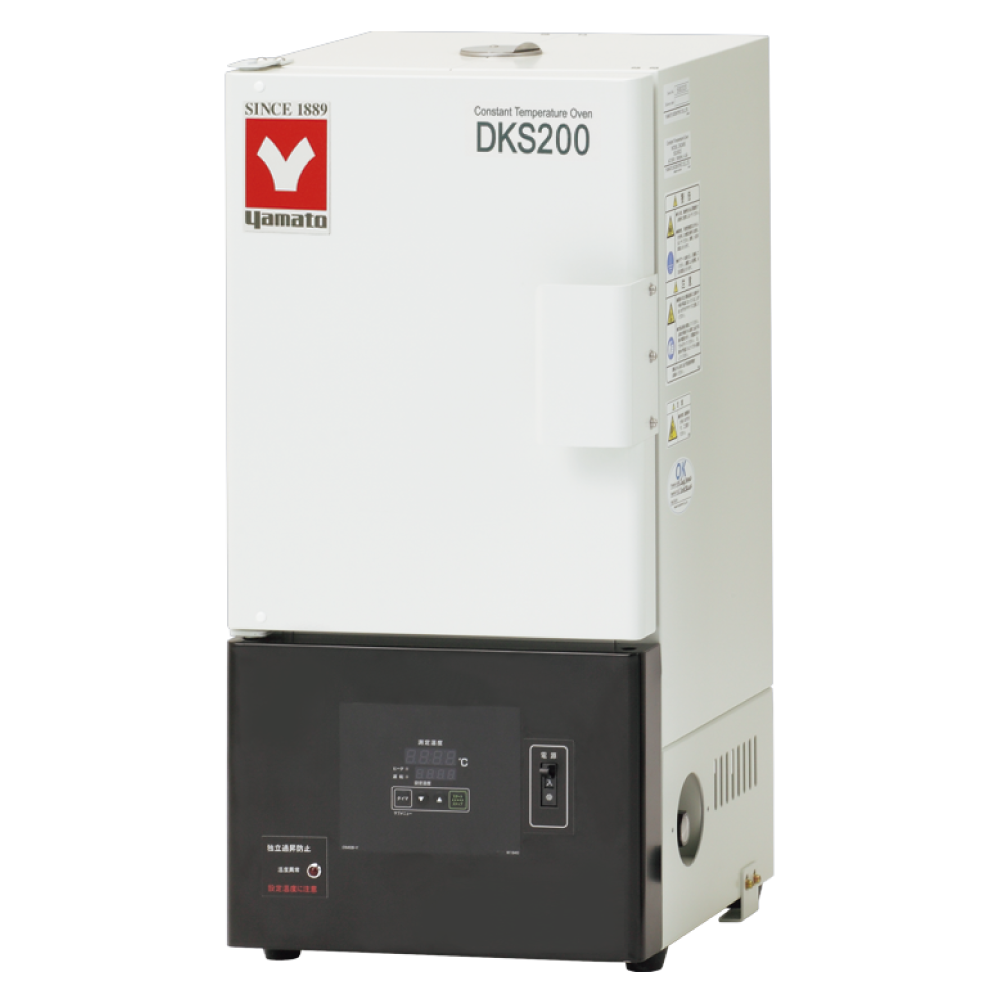

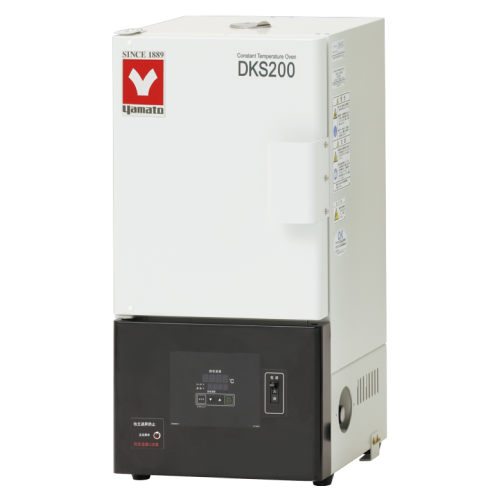

Features of Forced Convection Oven (Slim Type) (DKS200)
| Model | DKS200 |
|---|---|
| Exhaust port | Stainless steel, 30 mm I.D. × 1pc. (on the top) |
| Timer | 0 to 999.9 Hrs. |
| Power Source | AC220V 2.1A |
| Remarks(dimensions) | 20L |
| External dimensions（W×D×H mm） | 320×340×685mm |
| Internal dimensions（W×D×H mm） | 240×250×340mm |
| Safety countermeasures | Independent overheat prevention, Automatic overheat prevention, Alarm for sensor input, Short circuit breaker, Key Lock Function |
| Additional Function | Sheet key, (LED; Temperature, Timer Lamp; Heater, Abnormal Temperature) Main switch for Short circuit breaker, Calibration Off set function, Power failure return mode |
| Operation function | Fixed temperature operation, auto-start or auto-stop by timer |
| Temp display method | Digital display by LED |
| Temp. setting method | Digital setting with UP/DOWN key |
| Temp. controller | PID control by microprocessor |
| Door | Chrome-free electrogalvanized steel plate with melamine resin baking finish |
| Heater | Iron-chrome wire heater, 400W |
| Fan type | Axial flow fan, 130mm diameter steel plate fan |
| Heat insulating material | Rock Wool |
| Exterior material | Chrome-free electrogalvanized steel plate with melamine resin baking finish |
| Interior material | Stainless steel |
| Max. temp. reaching time | Approx. 60 min |
| Temp. distribution accuracy | ±3.0 deg.C (at 210 deg.C) |
| Temp. control accuracy | ±1.0 deg.C (at 210 deg.C) |
| Operating Temperature Range | Room temp.+10 deg.C to 210 deg.C |

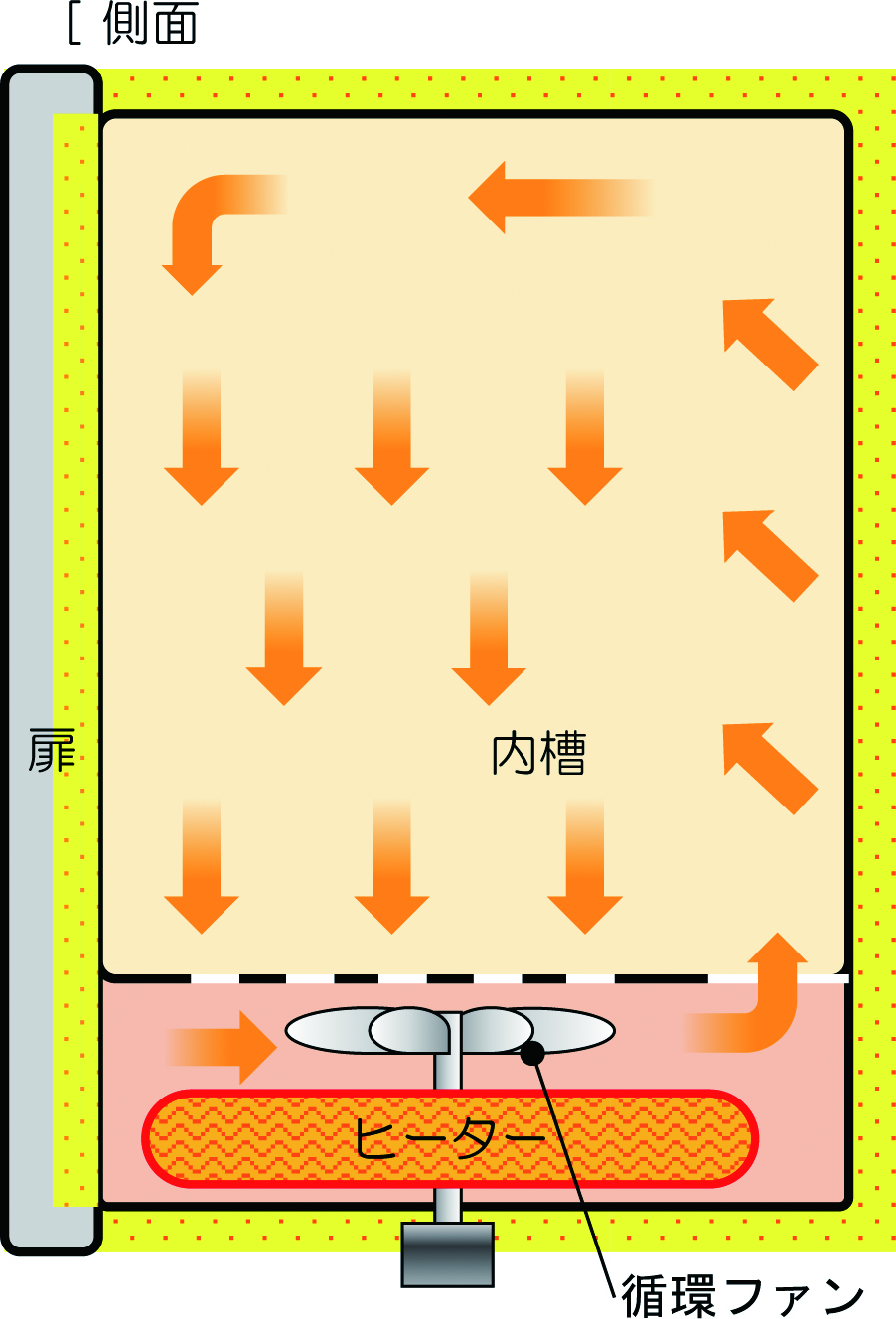

| Circulation Type | Forced Convection |
| Item Code | 212913 |
| Weight | 23kg |
