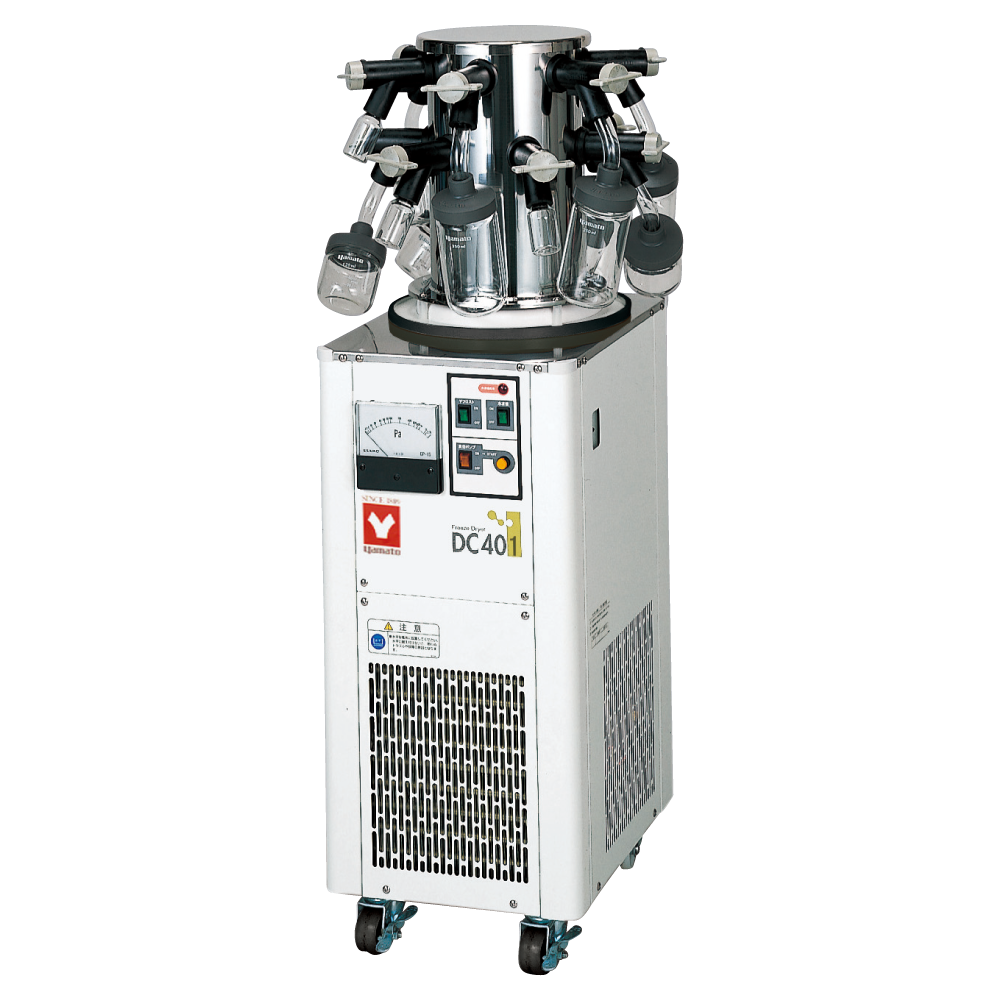

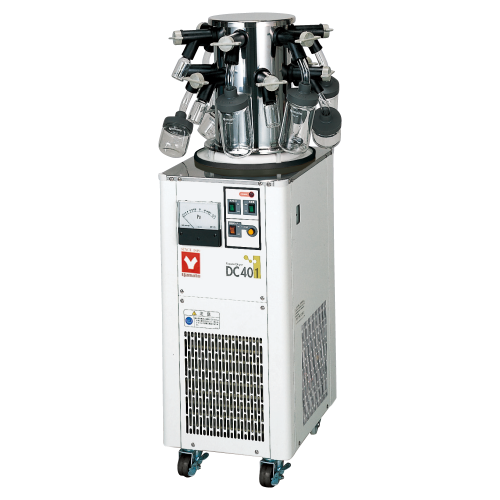

Freeze Dryer (DC401)

Description

Contaminant free system

Features of Freeze Dryer (DC401)

Features: Designed with automatic safety vacuum venting system which prevents oil back flow when turn off power supply or power failure.
Features: Ice can be refrozen and removed smoothly from the vessel by Hot Gas Bypass System.
Features: Equipped with Pirani Vacuum Gauge.
Features: Safety Valve is linked with Service Receptacle for Vacuum Pump.
Features: Environment friendly coolant used for refrigeration.
Features: Highly mobile on wheels.

Model	DC401
Bath Shape, material	Cylinder, Stainless steel
Weight	43kg
Item Code	212537

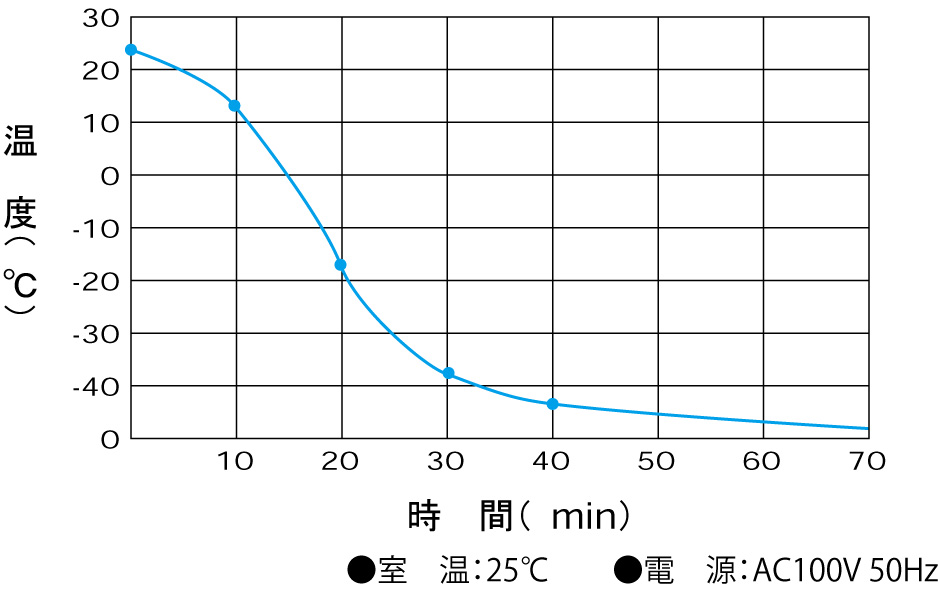

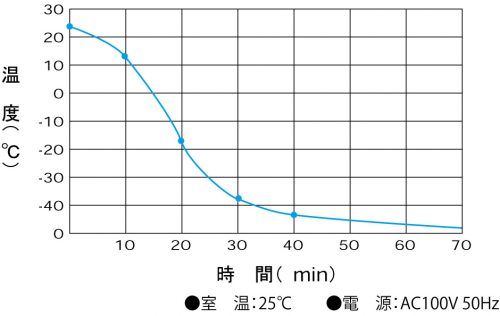

Trap cooling temperature	-45℃
Dehumidify amount	0.6L
Temperature sensor	N/A
Temperature Display	N/A
Refrigerator	Air Cooling Type, 400W
Refrigerator, coolant	R404A, Coolant amount: 225g
Compound gauge	N/A
Drain	Vacuum Hose with Stopper
Vacuum gauge	Pirani vacuum measure
Trap defrost	Defrosted by Hot Gas
Exhaust port (vacuum pump connection	Dia.17mm
Ambient temperature range	5~30°C
Safety device	Electric leakage breaker with over current protection,refrigerator overload relay, valve for back flow prevention
Trap dimensions	Dia.153 x H235mm
Accessories	Vacuum silicone grease, Vacuum hose, 10A fuse
External dimensions（W×D×H mm）	300×450×720mm
Remarks(dimensions)	Internal capacity approx. 4L
Power Source	AC115V/AC220V Single phase with step-down transformer
