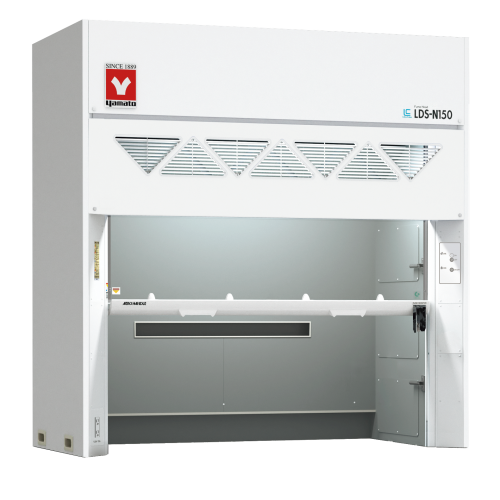

Fume Hood (Benchtop type) (LDS-N150T)

Fume Hood (Benchtop type) (LDS-N150T)

Fume Hood (Benchtop type) (LDS-N150T)

Fume Hood (LDS-N180S)Fume Hood (Low-ceiling type) (LDS-N150SJ)
Category:
  Contact Us

Description

Fume hood with fixed exhaust air volume

Features of Fume Hood (Benchtop type) (LDS-N150T)

Features
Main unit is made of steel, chemical resistant powder coating applied; excellent fire resistance
Features
Non-asbestos, non-combustible veneer interior with excellent chemical and heat resistance
Features
Selectable work surface material
Features
Storage located in the lower base (not applicable to benchtop type)
Features
Equipped with multi-slit baffle to efficiently exhaust harmful gas in the fume hood
Features
Safety features include door drop prevention stopper, ventilator delay timer and exhaust blower activation monitor
Features
Outlets and switches are located at an easy operating height
Features
Selectable air speed meter, which digitally displays the front air speed and exhaust air volume (option)

Additional information

Model

LDS-N150T
Item Code

A003038
Exterior

Cool-milling steel, chemical-resistant baked paint finish
Interior

Non-asbestos, non-combustible decorative board (baffle plate: multi-slit type)
Working surface material

Ceramitite
Glass window

Reinforced glass, 6mm thickness, balance weight type
Outlet

AC115/ 220V with dual grounding wire (dropout prevention) 1pc.
Fluorescent lamp

32W 1pc
Safety feature

Door drop prevention stopper, ventilator delay timer, exhaust blower activation monitor
Option

LDX anemometer, LED lighting, safety mechanism (double wire door fall prevention mechanism)
Standard discharge air quantity

16m3/min
Static pressure

59Pa
External dimensions（W×D×H mm）

1500×750×1550mm
Power Source

AC115/ 220V
Weight

150kg
