Dry exhaust gas treatment system installed. It helps to remove organic solvents which difficult to remove, acids, alkali etc.

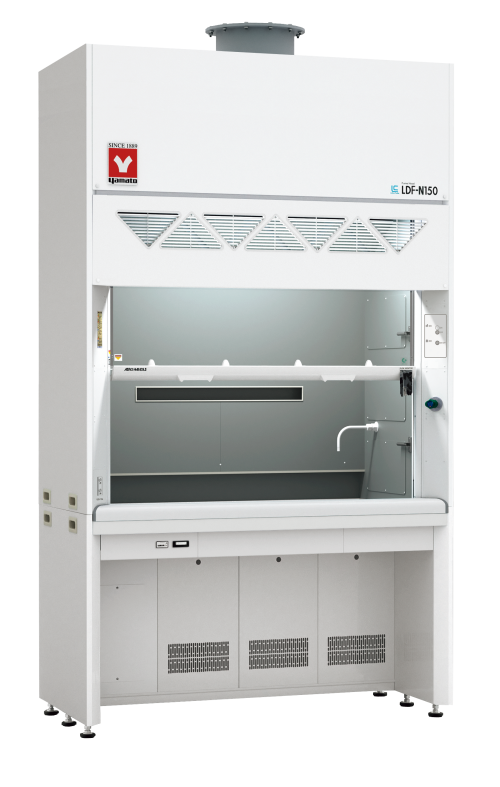

Features of Fume Hood (Dry Scrubber Built-in) (LDF-N150L)
| Model | LDF-N150L |
|---|---|
| Case material | PVC |
| Weight | 390kg |
| Exterior | Cold-rolled steel plate (chemical resistance coating) |
| Interior | Non-asbestos and non-combustible decorative board |
| Working surface (selection) | Stainless (L) |
| Glass door | Tempered glass 6mm balance weight |
| Water faucet | Single type 1pc |
| Socket | AC115V/220V × 1pc |
| Fluorescent lamp | 32W 1pc |
| Item Code | A002995 |
| Timer | 0 ～ 9,999.9h (for adsorbent specification time) |
| Adsorption | Adsorbent amount (K type) 30 kg |
| Differential pressure | For pre-filter ( 0 ～ 490Pa / 0 ～ 50mmH2O) 1pc |
| Safety mechanism | Exhaust delay timer, Door falling prevention stopper, Flow monitor |
| Option | Gas tap, LED, safety mechanism |
| Exhaust air volume | 16m3/min |
| Internal static pressure | 245Pa (25mmH2O) |
| External dimensions（W×D×H mm） | 1500×750×2600mm |
| Power Source | AC115/220V |
