Description
Features of Fume Hood (with Exhaust volume controller) (LDX-N150S)

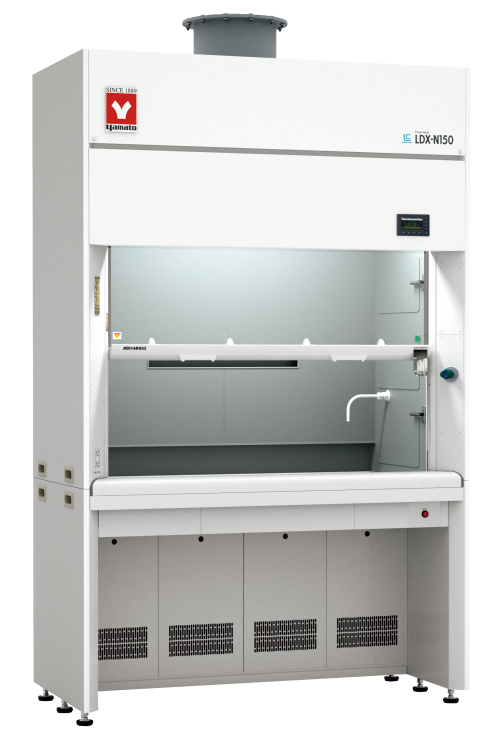

Fume Hood (with Exhaust volume controller) (LDX-N150S)
Fume Hood (with Exhaust volume controller) (LDX-N150S)
Additional information
| Model | LDX-N150S |
|---|---|
| Fluorescent lamp | 32W 1set |
| Weight | 320kg |
| Exterior | Cold-rolled steel plate (chemical resistance baking finish) |
| Interior | Non-asbestos and non-combustible decorative board (Baffle plate: multi slit system) |
| Working surface material | Ceramitite (S) |
| Glass window | Tempered glass 6mm Balance weight |
| Water faucet | Single type 1pc |
| Outlet | AC115/ 220V with dual grounding wire (dropout prevention) 1pc. |
| Item Code | A002968 |
| Atmosphare conditions | Room temp. : 5-35oC, Room humidity : 20-80% ( No condensation) |
| Safety feature | Exhaust delay timer, Door falling prevention stopper, Flow monitor, Emergency exhaust switch |
| Option | Gas tap, LED, Safety mechanism |
| Standard setting range | Constant wind speed mode (0.5m/sec) / Constant air flow mode (16 m3/min) |
| Standard discharge air quantity | 6 to 31 m3/min |
| Static pressure | 196Pa (at 31 m3/min) |
| External dimensions（W×D×H mm） | 1500×750×2605mm |
| Power Source | AC115/220V |
