Description

Easy-operational and highly acclaimed Glassware drying oven.

Features of Glassware Drying Oven (DG850)

Features
Use a big observation window for easy observation.
Features
Many labwares can be dried at one time which can be safe kept or used after drying.
Features
The interior and exterior use twofold structure of high-insulative effect.
Features

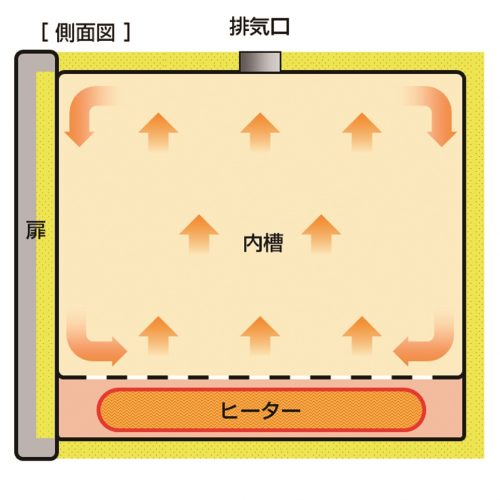

The chamber heater is stainless steel heating pipe with a water pan at the bottom, use at ease even for dripping labwares.
Features
The interior is made of stainless steel, easy to keep clean.
Safety
Self-diagnosis function, overcurrent ELB, independent overheat protector

Additional information

Model

DG850
Temp. Setting

Digital setting by dial
Weight

83kg
Item Code

211994
Operating temp. range

RT＋5 to 70℃
Interior material

Stainless steel
Exterior

Cold rolled steel plate with chemical proofing coating
Heater

Stainless steel pipe heater
Heater Power

1.34kW
Observation window (W×Hmm)

250×700
Exhaust port

Axial flow fan forced exhaust
Suction port

Set air suction filter
Germicidal lamp

15W×1
Temp. control

PID control
Operation function

Fixed temp., Quick auto stop, Auto start, Auto stop operation
Additional Function

Calibration offset, Key lock, Power outage compensation
Sensor

K thermocouple
Safety device

Self-diagnosis function, Independent overheat protector, Overcurrent ELB
Shelf plate with standard load

15kg / piece
Shelf support step number/pitch

29 steps / 30mm
Shelf plate

Stainless punching metal
Shelf rest

4 pcs
Shelf bracket

8 pcs
Water pan

1 pc
Internal dimensions（W×D×H mm）

620×600×1195mm
External dimensions（W×D×H mm）

674×711×1618mm
Remarks(dimensions)

445L
Power Source

AC220V 7A
Single-phase
