Description
Quick heat up
Features of Heating Block (HF200)
- Features
- The more precise temp. adjustment accuracy (±0.2℃) with calibration off-set function.
- Features
- 10 types aluminium block.

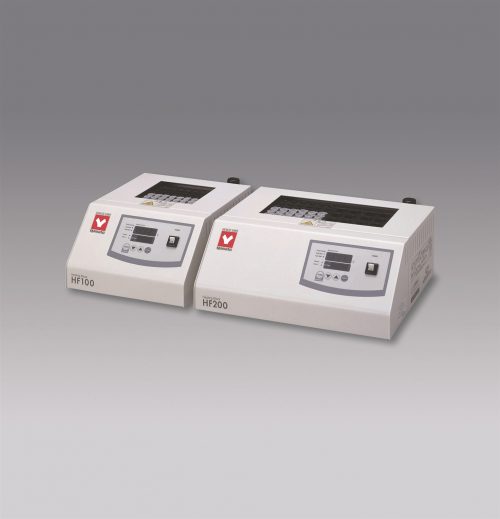

Heating Block (HF200)
Heating Block (HF200)
Additional information
| Model | HF200 |
|---|---|
| Temp. setting/display | Digital setting, Min. indication unit 0.1℃ |
| Weight | 6.5kg |
| Operating temp. range | Room temp. +5 to 200℃ |
| Temp. adjustment accuracy | ±0.2℃ (at 200℃ , at using φ16.5 testing tube) |
| Time to reach to max. temp. | Approx. 35min. (Room temp. 23℃ ) |
| Loadable block | Aluminium block 2pcs. |
| Temp. control | PID Control by digital controller |
| Temp. Sensor | Pt Sensor, Pt100Ω |
| Item Code | 213106 |
| Heater | Mica heater 600W |
| Function | Fixed. temp. operation, quick automatic stop timer operation, automatic stop timer operation, automatic start timer operation |
| Safety countermeasures | Over current / electric leakage breaker, Automatic overheat prevention (Main relay shut down at setting temp. +12deg.C, Manual recovery), Independent overheat preventor (Manual recovery type bimetal, Reaction temp. Approx. 230deg.C) |
| Other function | Key lock function, Calibration Off -Set function, Breakout protection function |
| Accessory | Handle for aluminium block loading /Unloading |
| Internal dimensions（W×D×H mm） | 222×112×70mm |
| External dimensions（W×D×H mm） | 340×310×139mm |
| Power Source | AC115V/AC220V |
