Description

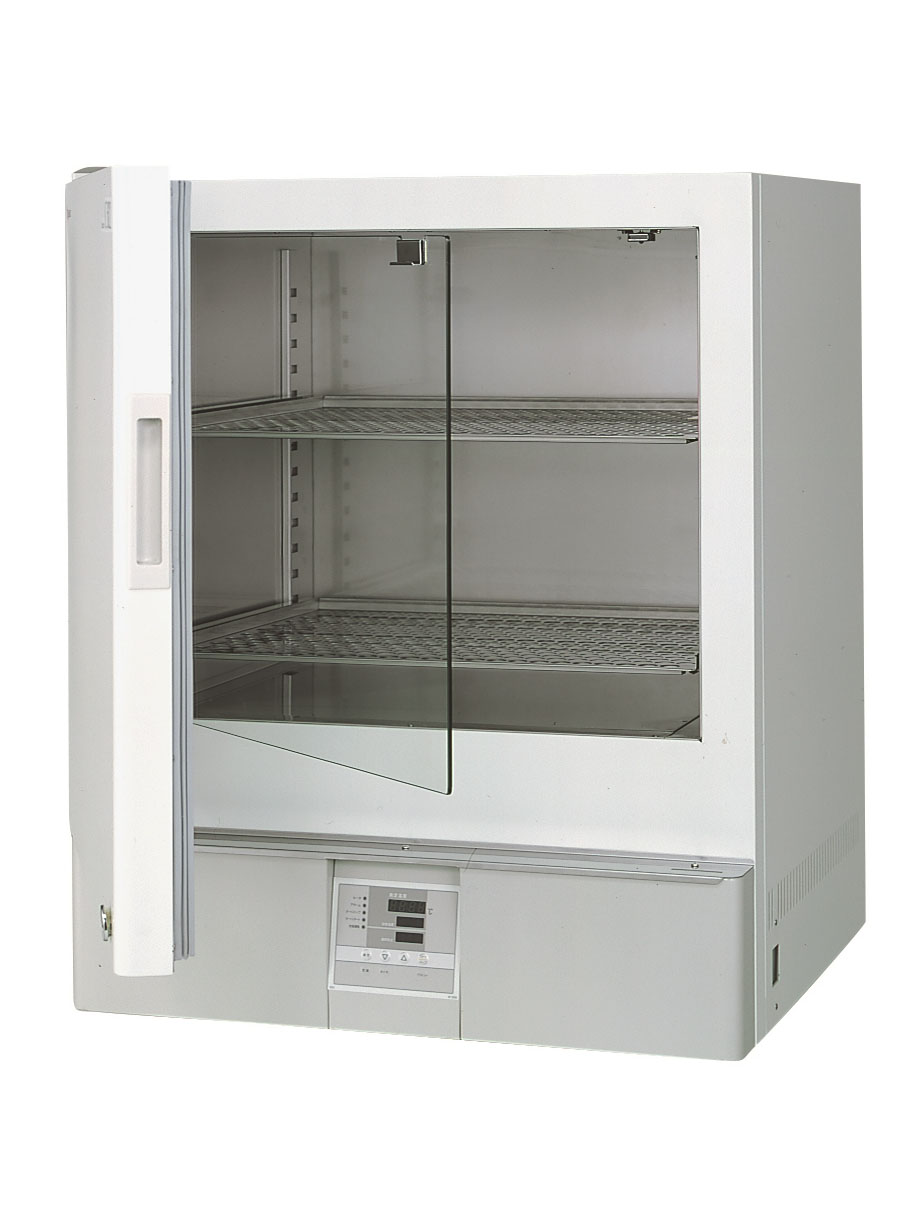

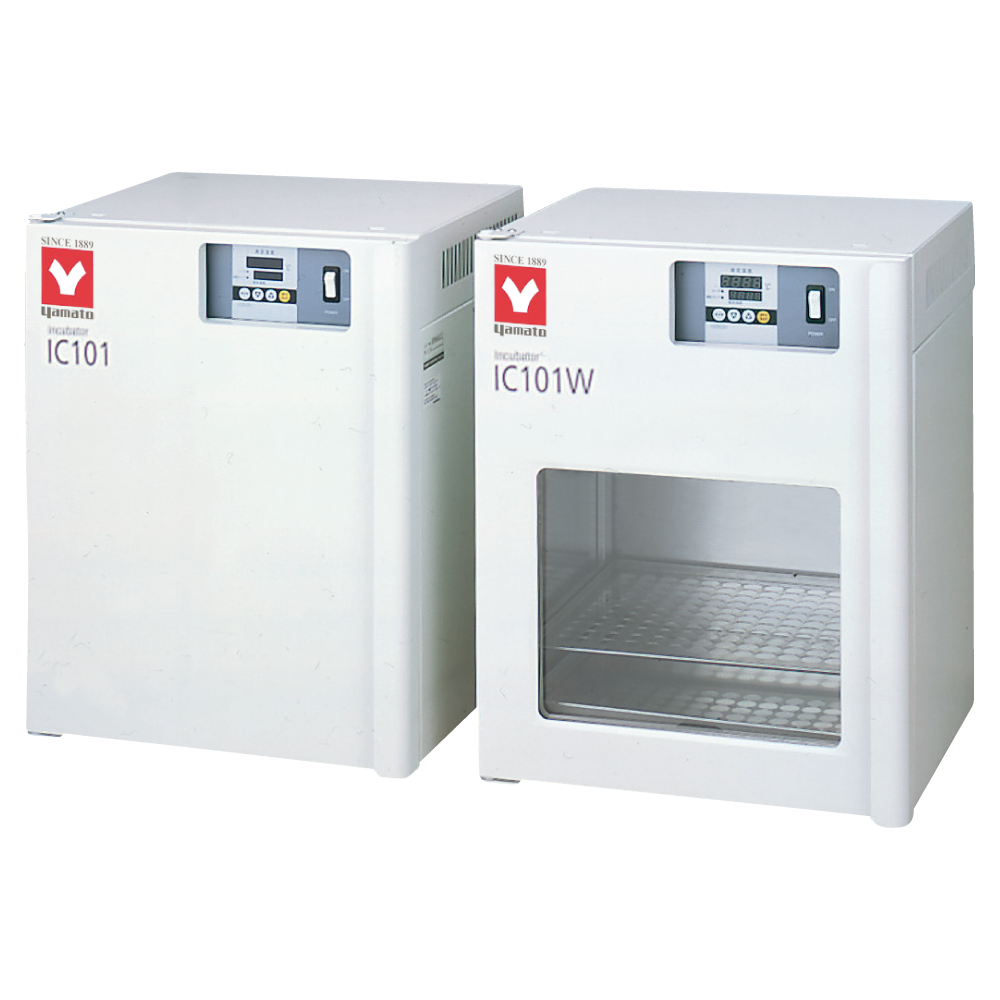

Desktop incubator that improves visibility with a large observation window.
Features of Incubator (Natural Convection, Compact, Window) (IC101W)
Incubator (Natural Convection, Compact, Window) (IC101W)
Incubator (Natural Convection, Compact, Window) (IC101W)
Additional information
| Model | IC101W |
|---|---|
| Temp. control method | PID control |
| Weight | 17kg |
| Item Code | 211139 |
| Type | Air Jacket Type, Natural Convection |
| Temperature Range | Room temp.+5 to 60 deg.C |
| Temp. adjustment accuracy | ±0.5℃ at 37℃ |
| Temp. distribution accuracy | ±1.5℃ at 37℃ |
| Interior | Stainless Steel |
| Exterior | Cold Rolled Steel Plate with Chemical-resistant Coating |
| Heater | 100W |
| Inner Glass Window | 290W x 240H mm, Double glazing |
| Temp. setting method | Digital Setting by ▼▲ Key |
| Temp. display | Digital Display |
| Timer | 0 min to 999 hrs 50 min |
| Time Division of Timer | 1min. |
| Operating Function | Fixed Temp., Quick Auto-stop, Auto-stop , Auto-start |
| Sensor | K-Thermcouple |
| Safety device | Self Diagnostic Function（Abnormal Temp. Sensor, internal memory error), Circuit breaker, Automatic Overheat Prevention, Key-lock Function |
| Shelf support step number/Pitch | 2 shelves/ 2 supports |
| Internal dimensions（W×D×H mm） | 350×300×360mm |
| External dimensions（W×D×H mm） | 410×380×520mm |
| Remarks(dimensions) | 37L |
| Power Source | AC115V/AC220V |
