Reduced heating time to 1/2.5, cooling time to 1/4 (compared with conventional company products), horizontal air flow appropriate for loaded operation, the standard oven for production lines supporting multi power supplies. The product lineup includes a silicon free type.

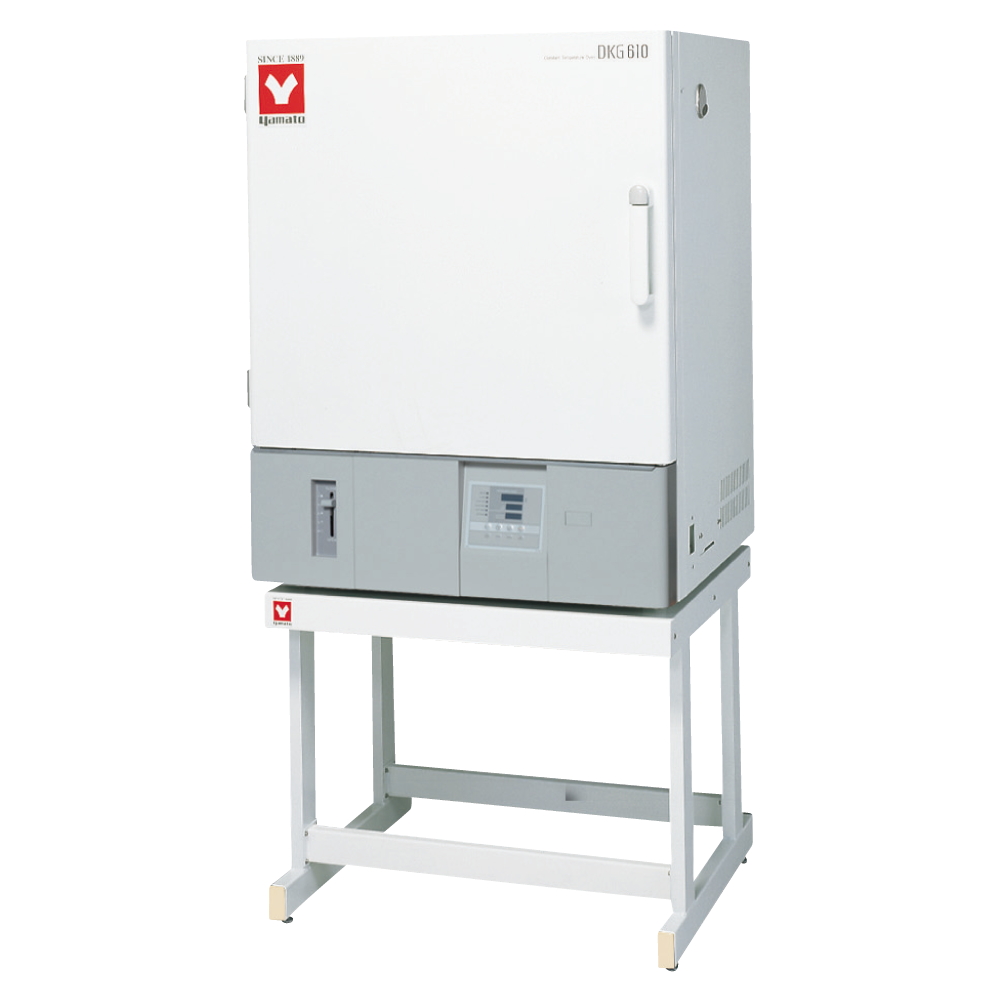

Features of Industrial Forced Convection Oven (Silicorn/Fluoro-rubber Gasket) (DKG610V)
| model | DKG610V |
|---|---|
| Door packing | Fluororubber |
| Remarks(dimensions) | 150L |
| Item Code | 212885 |
| Operating Temperature Range | Room temp. +30°C to 260°C |
| Temperature adjustment accuracy | ±0.5℃ |
| Temperature distribution accuracy | ±2℃（at 200℃）、±2.5℃（at 260℃） |
| Time to attain max. temp. | Within 45min. from 25°C ->260°C |
| Temp. decrease time | About 30min. from 260°C ->50°C |
| Air supply/exhaust damper | Front operation/manual damper Air supply pipe/exhaust pipe at the rear NSSC180 With exhaust duct |
| Interior/exterior | Stainless steel plate/chrome free electro galvanized steel plate Chemical proof baking finish |
| Heater and heat insulator | SUS pipe heater & glass wool |
| Heater capacity | 200 to 220V 2.6 to 3.15kW |
| Blower fan | Sirocco fan×1 |
| Fan motor | Condenser type motor × 1pc |
| Cable port | I.D.: 30mm One at the right side of the main body |
| Air supply port | Bottom of heater room (Open/Close with a manual damper) |
| Damper control | Linked air supply / Exhaust with manual knob on the front of the main body |
| Exhaust port | Upper part of rear of the main body: φ80 (Open / Close with a manual damper) |
| Heater control | SSR control |
| Sensor | K-thermocouple (for temp. adjustment, Indivisual overheating prevesion) |
| Safety unit | Program lock, Overheat preventive device, Over current electric leakage breaker, Door switch, Temperature fuse, External alarm terminal |
| Internal dimensions（W×D×H mm） | 600×500×500mm |
| External dimensions（W×D×H mm） | 770×696×985mm |
| Withstand load of shelf | 15 kg / pc. |
| Shelf support step number | 7 steps |
| Shelf support pitch | 60mm |
| Accessories Shelf | 2 pcs. |
| Accessories Shelf support | 4 pcs. |
| Power Source | AC200 to 220V 13.5-15A |
| Weight | 110kg |
