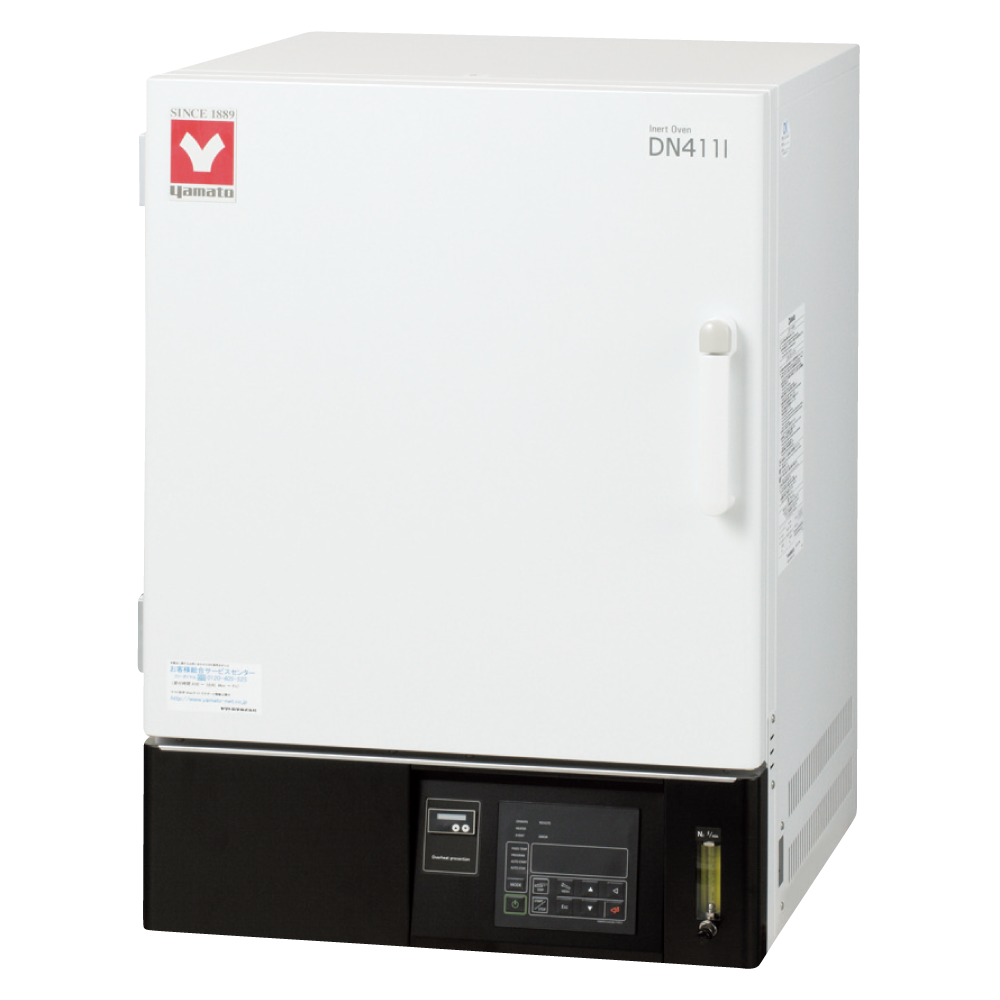

Inert Oven (DN411I )

Description

Suitable for Low Oxidation Environment

Features of Inert Oven (DN411I )

Suitable for curing process in a low oxygen atmosphere.: Suitable for heat insulation test and curing process up to 360°C.
Feature: Simple operation by interactive key input
Features: Operation monitor visualizes controller status, temp and temp. changing.
Features: Incorporates with maximum 99 steps, 99 patterns program controller with repeat function.
Features: Loaded with total operation hours timer.
Features: N2 gas flow amount controllable.

Additional information

Model	DN411I
Weight	90kg
Operating temp. range	Room Temp. +15 to 360°C
Temp. adjustment accuracy	±0.2℃（at 360℃）
Temp. fluctuation	1.2℃（at 360℃）
Temp. uniformity	±3℃（at 360℃）

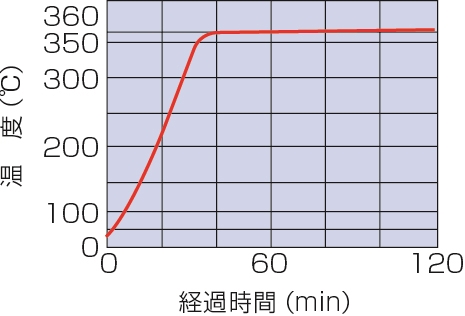

Max. temp. reaching time	Approx. 60 min.
Temp. Gradient	12℃（at 360℃）
Interior	Stainless steel plate

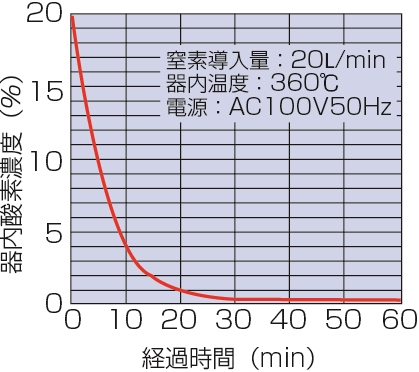

Nitrogen substitution time required	Approx. 30 min. (Ordinary temp with Oxygen concentration of 2%)
Exterior	Cold rolled steel plate with baked melamine resin coating
Heat insulator	Glass wool + Ceramic fiber
Heater	Stainless pipe heater 3.0kW
Sensor	K thermocouple for temperature control and independent overload prevention device
Fan type / Motor	Sirocco Fan / Condenser type
Item Code	212903

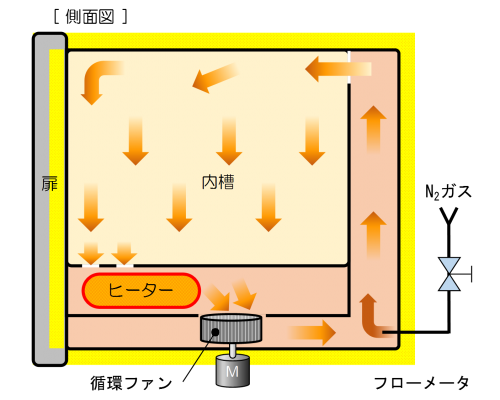

Method	Forced Convection

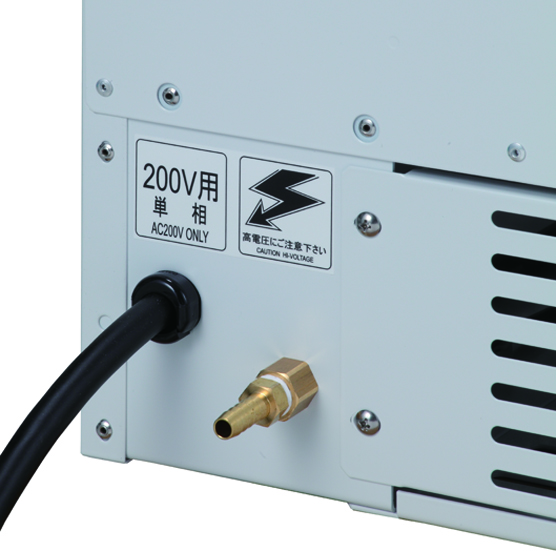

Flow meter, Gas carrier	Max. flow 30L/min, O.D. 9mm hose nipple
Temp. controller	PID control by microcomputer
Shelf support step number/pitch	12pcs. / 30mm
Program mode	Repeatable operation function up to max 99 steps or 99 patterns.
Additional functions	Power on and operation time integrating function (up to 65535 hours), Calendar time (24 hours), Calibration offset, Monitor display of integrated power consumption
Additional functions 2	Total CO2 emissions and heater operating output, Power failure recovery mode, Save and read out of user settings
Heater circuit control	Triac with Zero-cross
Safety device	Self diagnostic functions (Sensor failure, SSR short circuit, Heater line disconnection, Main relay contact damaged, Automatic overheat prevention),
Temp. display type	Temp. display: Digital display by 4 digit green LED (resolution:1oC) Setting temp. display: Digital display by 5 digit orange LED (resolution:1oC)
Shelf Max. Load	Approx. 30kg / shelf

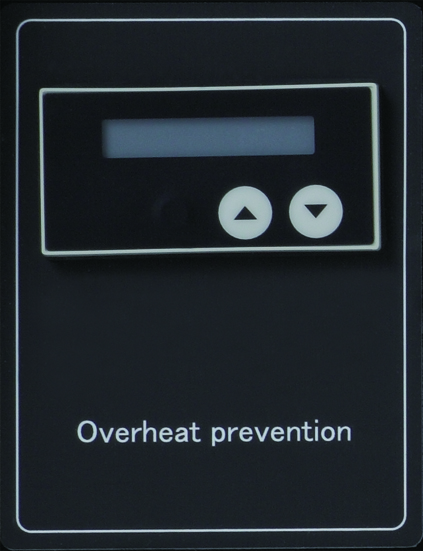

Safety device 2	Key lock function, Independent overheating prevention, Electric leakage breaker, Door switch
Shelf plate / support	Stainless wire, 2 pcs. / 4 pcs
Internal dimensions（W×D×H mm）	470×450×450mm

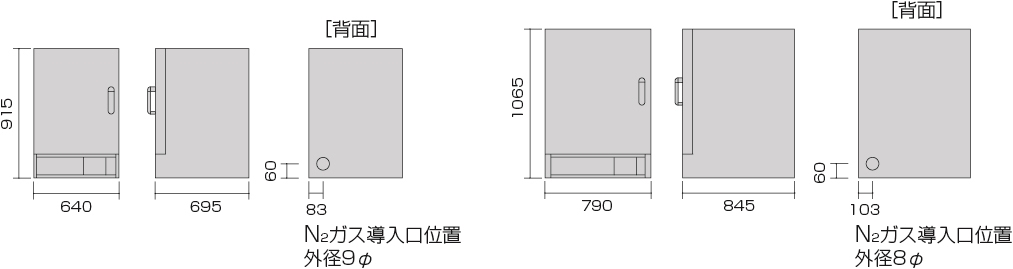

External dimensions（W×D×H mm）	640×695×915mm
Remarks(dimensions)	95L
Power Source	AC220V 15A Single-phase
Timer / Timer Resolution	1min. to 99hrs. 59mins. / 1min.
Operation function	Fixed temp. operation, Auto-start, Auto-stop, Quick autostop, Program operation
