Laboratory Flask Mixer (LM200)

Laboratory Flask Mixer (LM200)
Laboratory Flask Mixer (LM200)
Laboratory Flask Mixer (LM200)
Laboratory Flask Mixer (LM200)

Laboratory Flask Mixer (LM200)

Laboratory Stirrer (LR500A)Laboratory Flask Mixer (LM100)
Category:
Download Brochure

Description

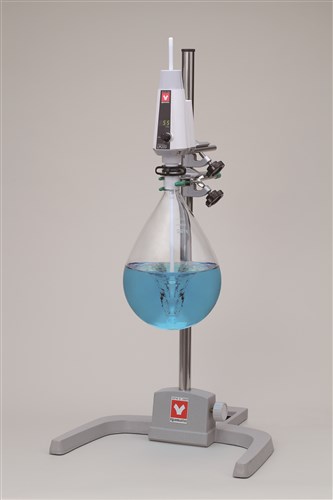

LM Series compact design flask mixer features integrated drive and stirring seal allowing direct installation of flask and stirring in a vacuum and sealed state. No time-consuming shaft alignment required. Its strong stirring power is perfect for samples of high volume and high viscosity.

Features of Laboratory Flask Mixer (LM200)

Features
LM100 is designed with manual type rotation speed while LM200 is equipped with digital indicator.
Features
Wide range rotation speed of 50-1000 rpm
Features
Capable of vacuuming up to 399.9Pa without impairing rotation efficiency
Features
Capable of AC100-240 by changing power cord

Additional information

Model

LM200
Rotation speed indication

3 digits ×10 rpm (Digital display)
Weight

0.7kg
Operating temp. range

5℃～35℃
Operating speed range *1

50～1000 rpm *1
Max. torque

Approx. 0.1N・m
Max. ultimate vacuum

Less than 399.9 Pa
Exterior

PBT /ADC12 (Surface treatment: Baking finish)
Motor

DC brushless motor 30W
Power switch

Speed control dial with switch (Stepless adjustment)
Item Code

231528
Adaptable flask size

50~5000ml
Operation indicator lamp

None (Confirm operation with speed indicator)
Joint size

TS29/42
Chuck

ø8mm (ø7.9~7.95)
Sealing material

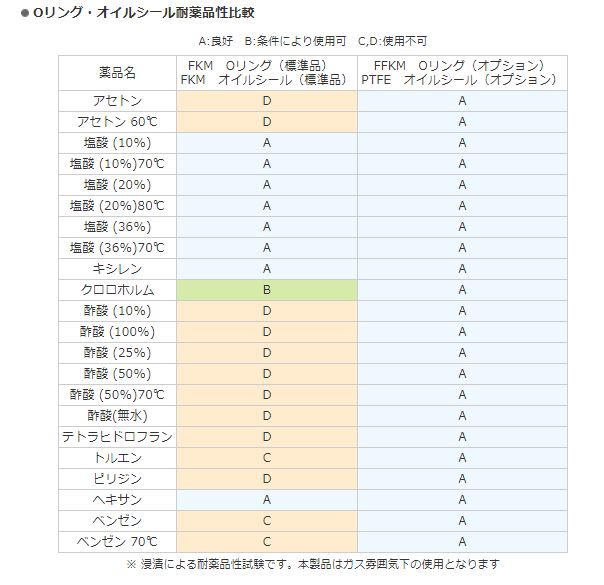

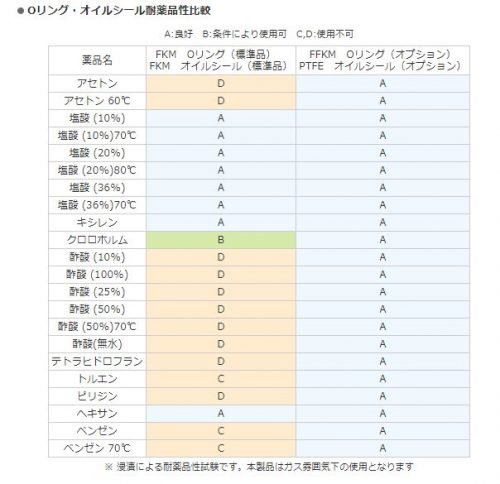

PTFE (rotary joint) / FKM (oil seal,o ring)
Safety device

Overload protection function, Coupling cover (wraparound prevention), Slow start function
Included Accessories

Hexagon socket head cap screw & wrench, AC adapter, 3m power cord, Coupling cover, Handle (arbor), Fask clip
External dimensions（W×D×H mm）

69×108×222mm
Power Source

AC100-120V 1A
Single phase (up to 240V by chaging the power cord)
