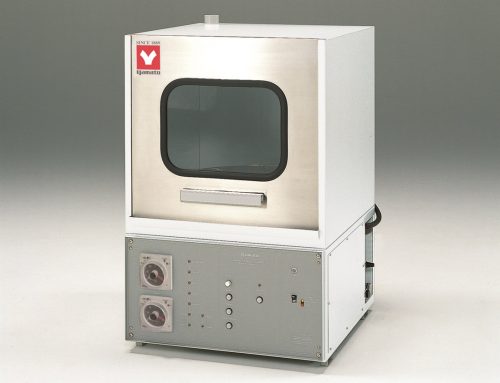

Laboratory Washer (Automatic, Compact) (AW62)

Description

Compact and powerful automatic benchtop washer with spin table helps reduce laboratory glassware cleaning workload

Features of Laboratory Washer (Automatic, Compact) (AW62)

Features: All processes from wash to rinse are fully automatic. Each process is displayed on indicator
Features: Final rinse (option) with purified water available

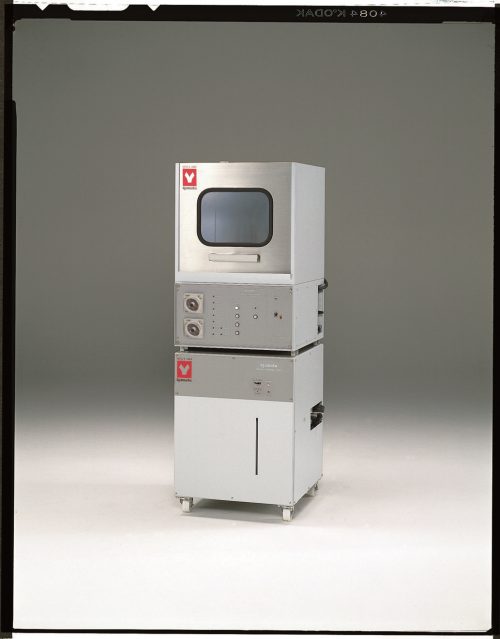

Features: Water purifier connection is possible for pure water rinse process
Features: Wash process and time can be set according to glassware shape and contamination level
Features: Cleaning water temperature impacts the final cleaning results. With built-in water heater, no boiler piping and water heating system are required
Features: Powerful upward and downward two-way pressurized water jet method

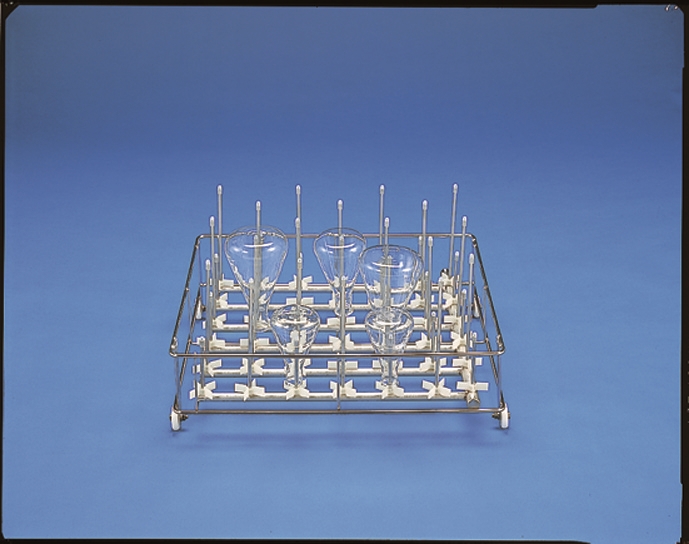

Features: Optional jet rack is available for hard to clean targets, such as glassware with narrow neck or body

Model	AW62
Water supply 2	Controlled by electromagnetic valve open / close, Water level adjustable by water level control switch
Weight	90kg
Cleaning method	Spray nozzle type, Turntable mthod
Cleaning cycle	Wash (setting range: 0 to 30min.)
Cleaning cycle 2	Rinse (setting range: 0 to 30min.)
Cleaning cycle 3	Purified water rinse (optional) when connected with water purifier, Rinse clean with 20L purified water
Water supply	Room temp. to 60°C
Washing water temp.	45 to 80°C
Water heater	Built-in heater 6kW
Supply water pressure	0.1 to 0.3MPa

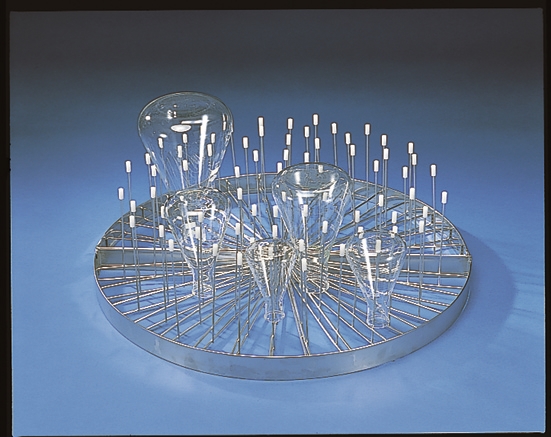

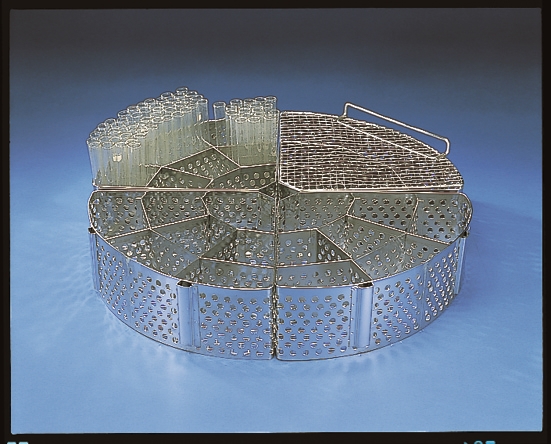

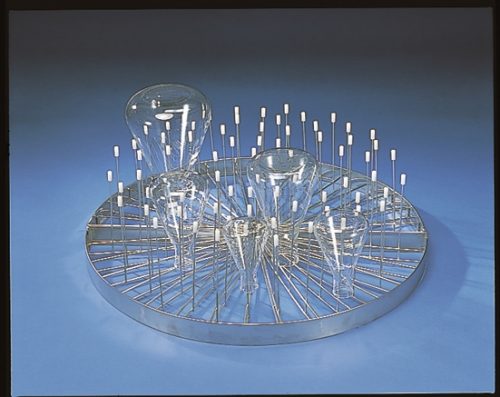

Glassware stand	Turntable (Standard), racks (Optional)
Item Code	291019
Exterior Material	Chrome-free electric galvanized steel plate, chemical-resistant paint
Water drain	Natural drainage by water level gap
Interior Material	Stainless steel
Spin table	Dia.550mm (max. load : 25kg)
Door	Drop down style (can stop at any position)
Accessories	Water supply hose (with coupler) 2m 1pc., Drain hose (I.D.25.4mm) 1.5m 1pc. , Phosphorus-free detergent 1kg (50mL measuring spoon 1pc.) , Vinyl cover, Main jet nozzle cleaning needle 1pc. , Water supply unit
Consumable	Phosphorus-free detergent
Internal dimensions（W×D×H mm）	594×572×564mm
External dimensions（W×D×H mm）	600×620×940mm
Remarks(dimensions)	Effective height: 345mm
Power Source	AC220V/AC380V Three phase with step-down transformer
