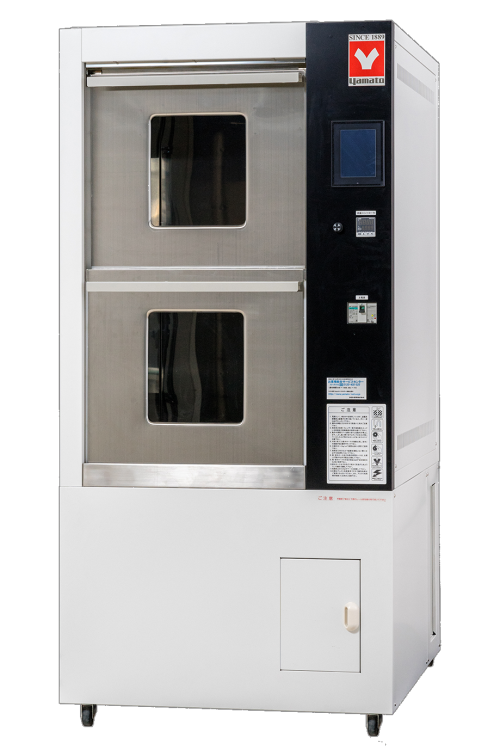

Laboratory Washer (Fully-automatic, Large Capacity) (AW83Z)

Description

Ideal for washing large equipment and a large amount of instruments

Features of Laboratory Washer (Fully-automatic, Large Capacity) (AW83Z)

Features: Two washing chambers
Features: Selectable three washing patterns

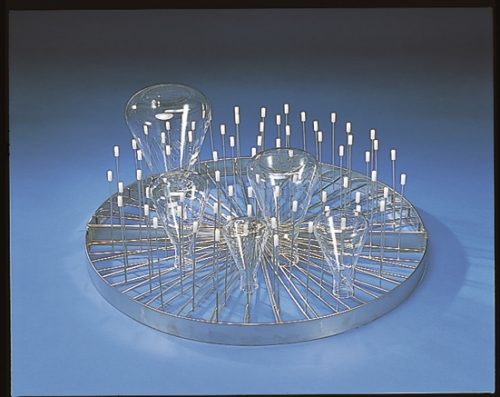

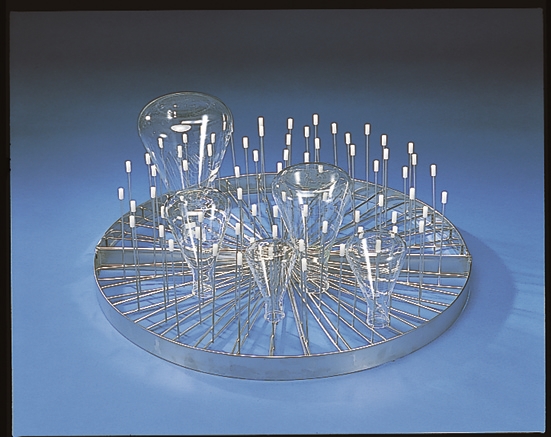

Features: Jet rack (option) can remove the dirt of containers more easily
Features: Fixing type rack and spinning type jet nozzle can avoid the brakeage of containers
Features: Available hot water washing by built-in heater
Features: Liquid detergent is automatically supplied from detergent container (powder detergent also available by adding powder in each time)

Additional information

Model	AW83Z
Item Code	200000
Weight	220kg
Washing water temp.	Supplied temp. to 80℃
Accessories	Supply hose I.D.18mm, 2m×1pc, Drain hose (with coupler) 2m×1pc, Detergent (Amorphous phosphorus) 1kg, Measuring spoon (for 50ml) 1pc, Test tube rack support 1pc, Hose clamp 1pc
Washing compartment	Two washing chambers
Washing compartment 2	Pressure water jet from two directions (Top and bottom), Jet nozzle spinning
Washing compartment 3	Upper : Jet nozzle rotation, Lower : Fixed type (jet rack)
Washing pattern	Selectable three washing patterns *Final rinse is option
Washing pattern 2	1. Pre-washing → Washing → Rinse → Final rinse*
Washing pattern 3	2. Washing → Rinse → Final rinse*
Washing pattern 4	3. Rinse → Final rinse*
Washing time	Pre-washing, Washing, Rinse: settable 1 to 99min
Washing time 2	Rinse: settable up to 5 times by batch system
Washing time 3	Final rinse (to connect with pure water supplying system): Rinse by pure water 50L, settable up to 5 times, start to wash after reaching to the set water level, Timer count starts after reaching to the setting temp.
Supplying water temp.	Room temp. to 60℃
Washing water temp. 2	Water supply temp. to 80℃. Same water temp. for pre-washing and washing, no water heat-up for rinse and final rinse
Liquid detergent supplying type	Automatic supply by pump (Adjustable supply amount)
Liquid detergent tank capacity	2L
Required water amount	Approx. 28L for each pre-wash, wash and rinse
Hot water supply system	Heater (Built-in: 6kW) heat-up or connection to primary hot water supply

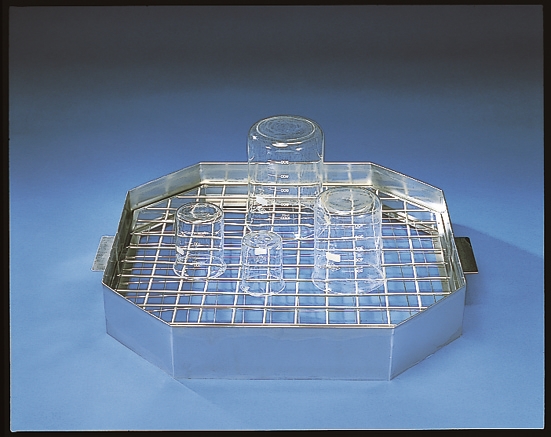

Container stand	Shelf board 2pcs. (Standard)
Water supplying system	Solenoid valve Open/Close, water flow amount is fixed by flow switch
Water drain system	Forced drain by pump
Exterior	Chrome-free electrogalvanized steel sheet, baking finish
Interior	Stainless steel
Pump	Washing pump: 355W/560W Drain Pump: 45W
Shelf board	550×550mm, max. load 245N (25kg)
Internal dimensions（W×D×H mm）	600×630×1080mm
External dimensions（W×D×H mm）	860×770×1795mm
Power Source	AC220V/AC380V Three phase with step-down transformer
