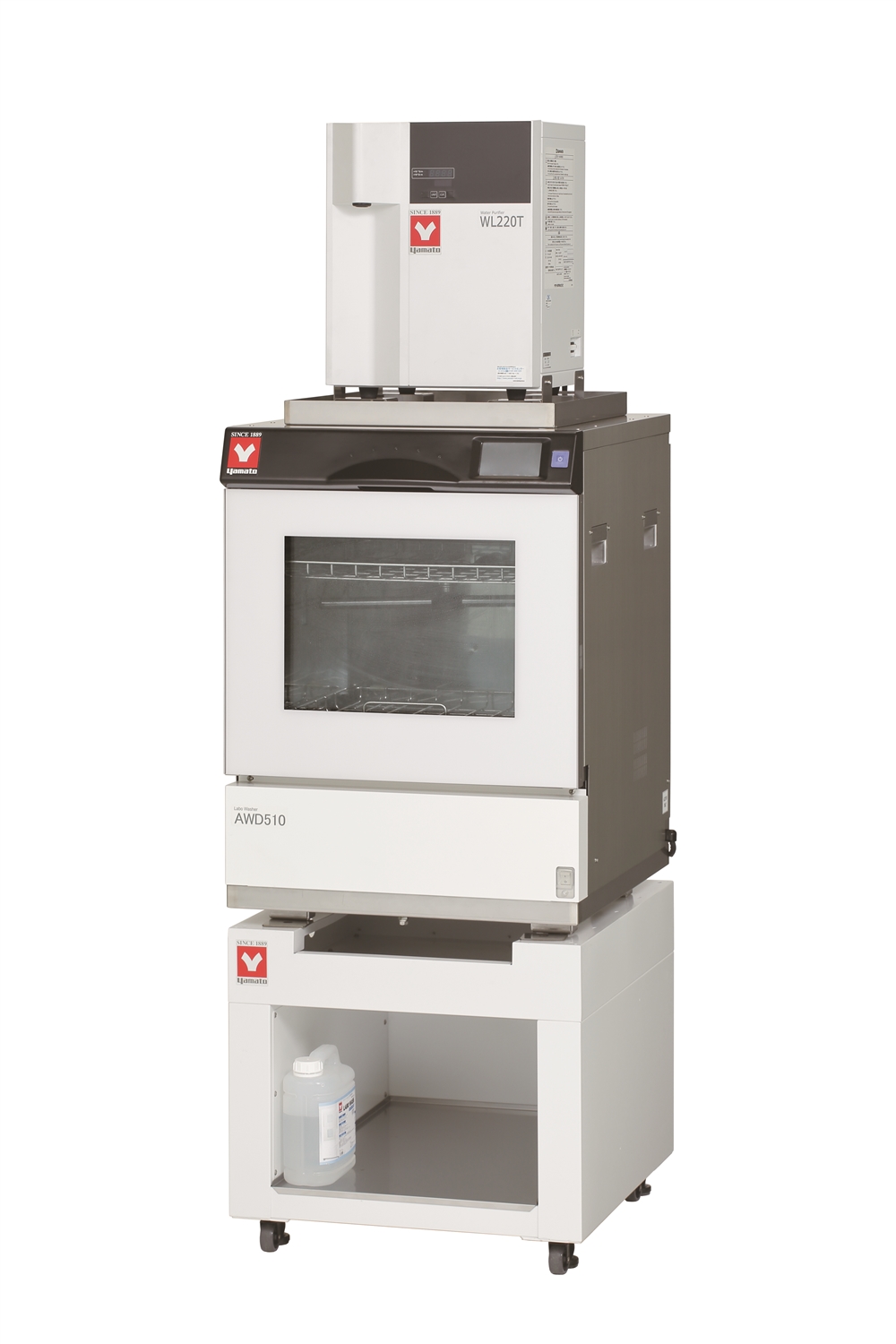

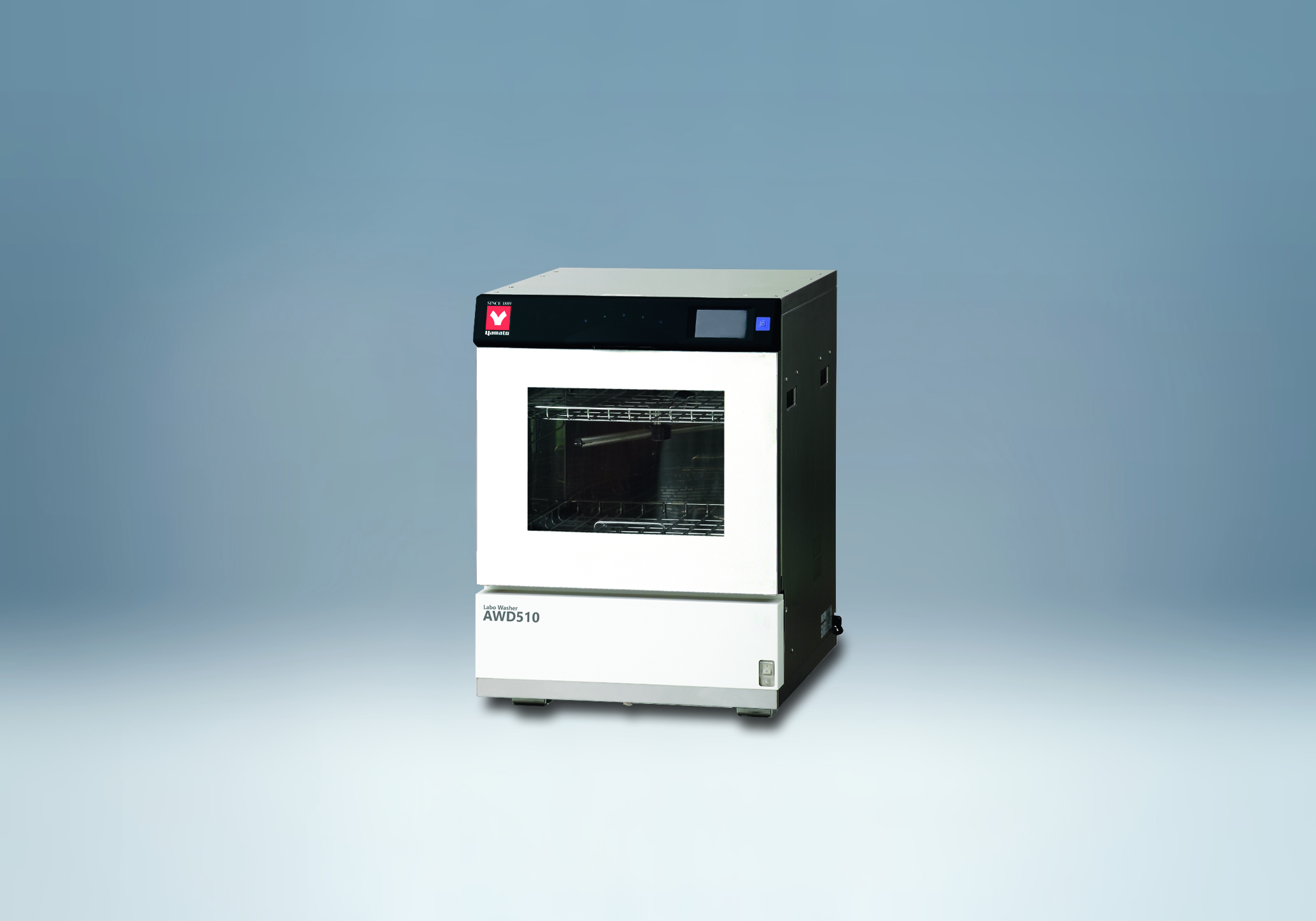

Laboratory Washer (Process Monitorable) (AWD510DRY)

Laboratory Washer (Process Monitorable) (AWD510DRY)

Description

Color lighting to make it easy to determine the stage of the washing process.

Features of Laboratory Washer (Process Monitorable) (AWD510DRY)

Features
Large double glass window affording a good viewof the inside.
Features
Powerful alkaline is set as standard liquid detergent.
Features
Effluent temperature controlled to stay at 60°C or below.
Features
Feed-water connection established between the rack and main body simply by closing the door.

Additional information

Model

AWD510DRY

Item Code

291070

Weight

87kg

Washing system

Upper / Middle / Lower-stage rotating jet nozzles

Washing process

Pre-washing, Washing, Rinsing, Rinsing with pure water (optional), Pre-drying (optional)

Water temp.

Set Off to Max. 80℃ (pre-washing / washing), Max. 93℃ (rinsing)

Hot-water supply

2kW Pipe heater

Detergent supply

Automatic weighing and loading (liquid detergent)

Drain method

Hot water cooling and forced draining with pump

Water supply Tap water (Necessary)

Temp. 5 to 25℃ , Raw water feed pressure 0.1 ~ 0.5MPa, G3/4 (main unit), G1/2 (primary)

Water supply Hot water (Discretionally)

Temp. 5 to 60℃ , Raw water feed pressure 0.1 ~ 0.5MPa, G3/4 (main unit), G1/2 (primary)

Detergent

Dedicated detergent (optional)

Pure water connection (Discretionally )

Raw water feed pressure 0.02 ~ 0.1MPa, Hose nipple I.D. 10.5mm

Exterior

Stainless steel plate (SUS304)

Interior

Stainless steel plate (SUS316)

Leg

Level adjuster

Display

4.3-inch LC touch panel / LED lamp (process) / Interior lighting color by process

Safety device

Over current/Electric leakage breaker, Overheat prevention, Door lock, Water leak detector

Drying method (optional)

Hot-air drying (HEPA filter, fixed at approx. 60℃ )

Over current/Electric leakage breaker, Overheat prevention, Door lock, Water leakage

Raw water supply hose (for tap water and hot water), Drain hose, Lid for removing upper-stage rack, Stainless steel rack for detergent, Drain hose clamp, Overflow water hose, Detergent tube

Internal dimensions(W×D×H mm)

500×480×480mm

External dimensions(W×D×H mm)

580×600×845mm

Power Source

AC220V 13A
Single phase with step-down transformer
