Description

Upgraded inverter control improved refrigeration efficiency, reduced frost significantly and minimized wasted power during refrigeration

Features of Low Temperature Incubator (Energy Saving & Programmable) (INE800)

Inverter control incubator

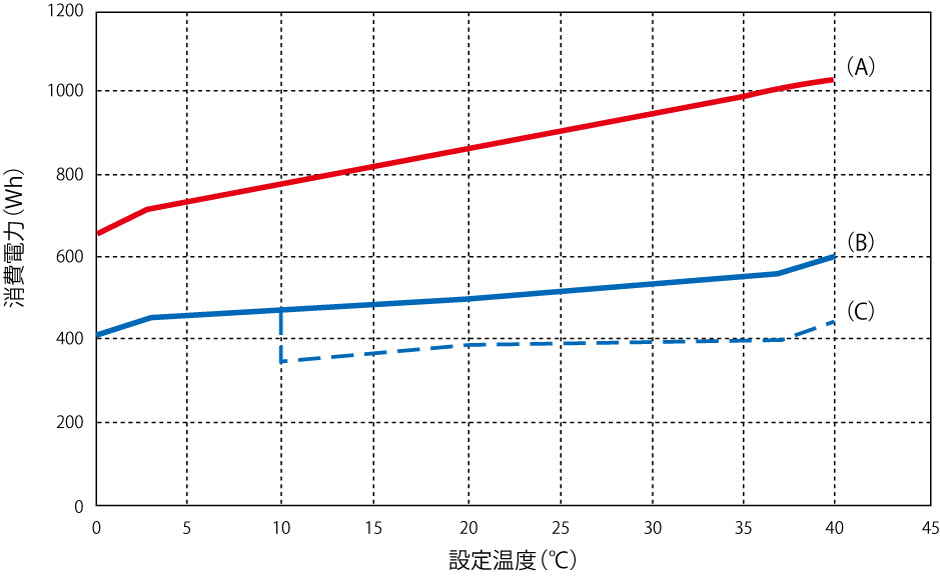

44% power savings compared to conventional models
Feature

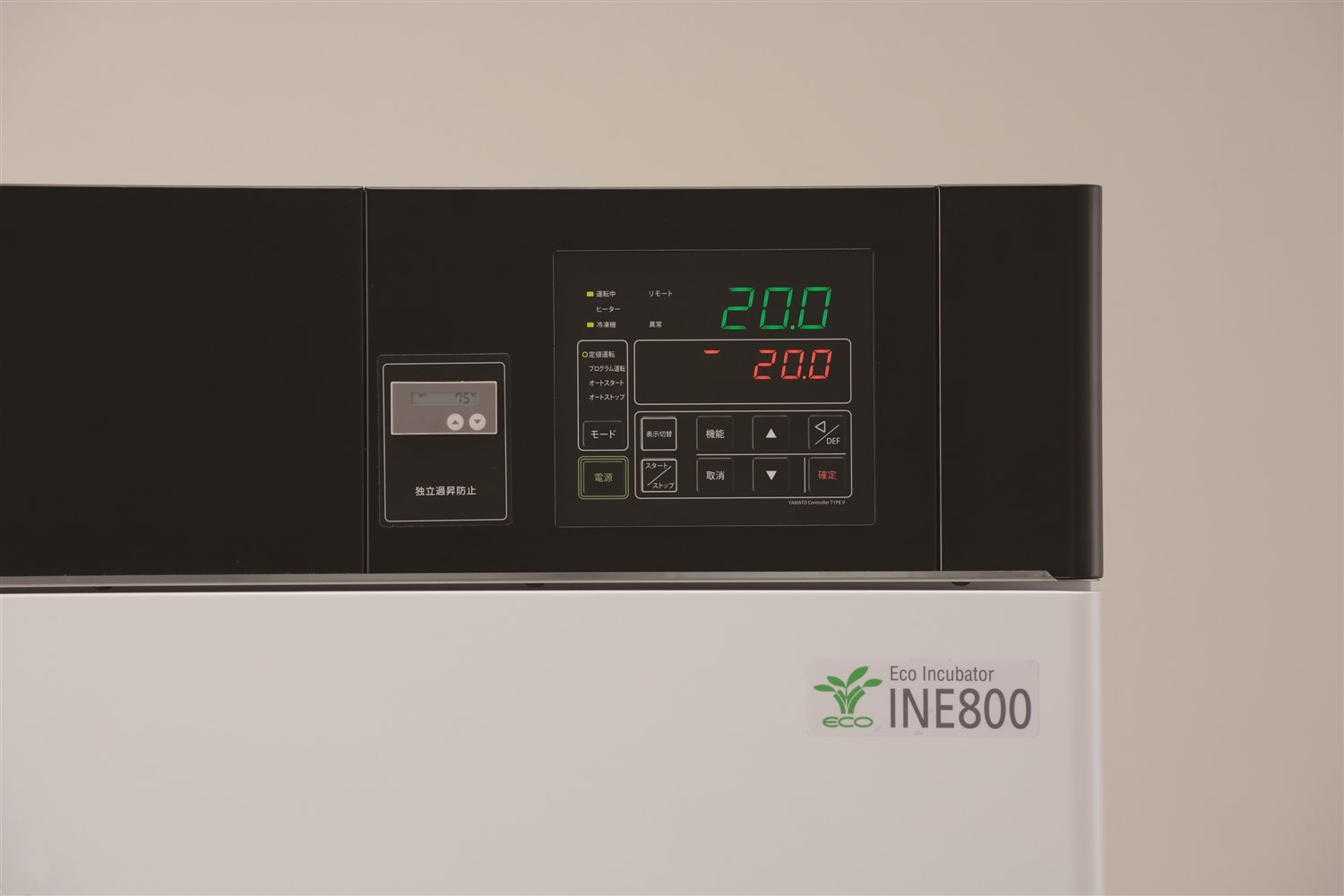

Controller upgraded for easier viewing and operability
Feature
Temperature distribution accuracy improved for better incubation
Feature
Standard equipped with program operation, auto-stop, auto-start, self-diagnostic, timer, calibration off-set, memory and electricity & O2 emmission monitor
Feature
Designed with Analog output(4-20mA) and External communication port(RS485)

Additional information

Model

INE800
System

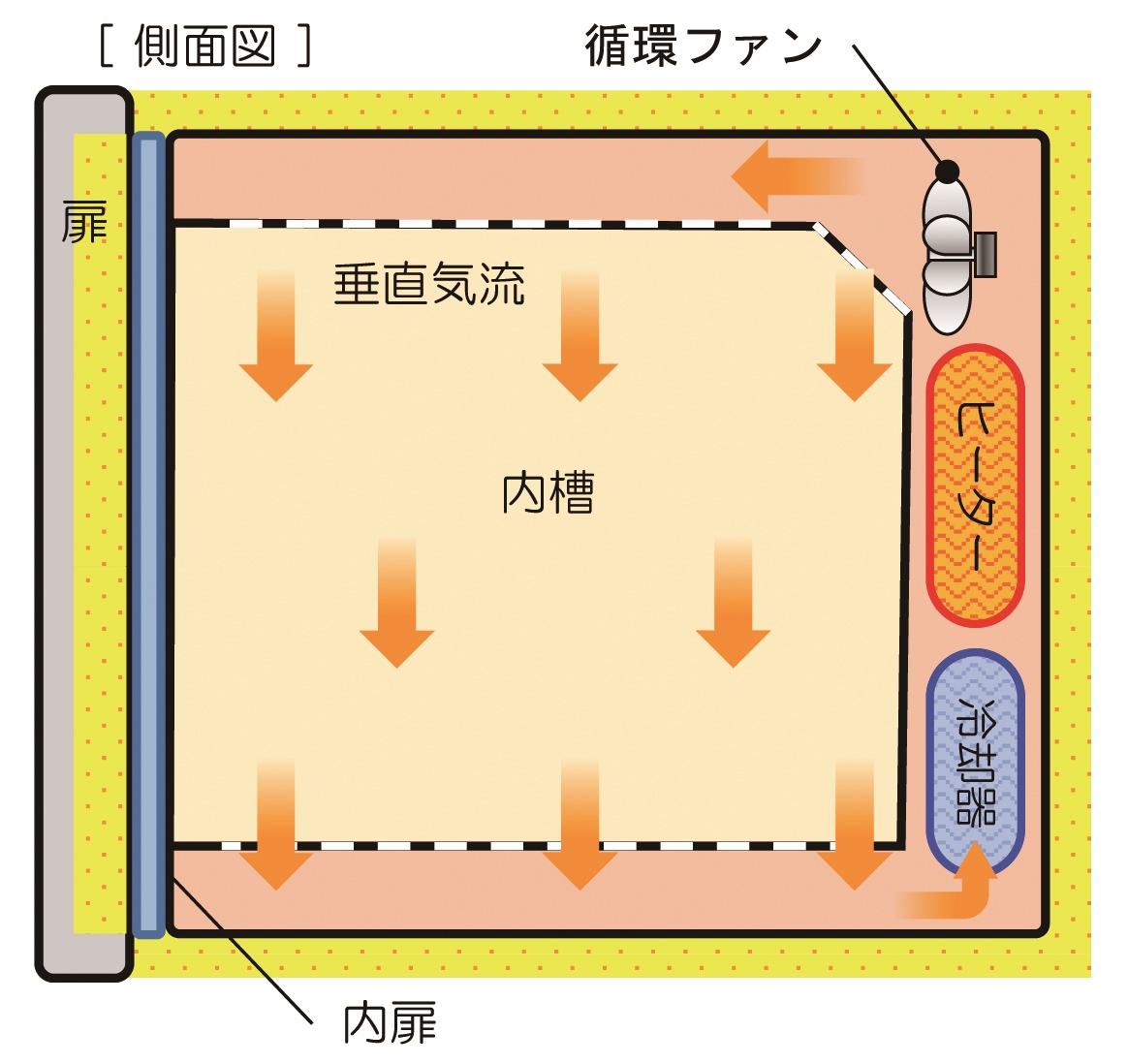

Forced air convection
Safety device

Self-diagnostic functions(Temp. sensor error, Heater disconnection, SSR short-circuit, Main relay error, Automatic overheat prevention), Key-lock, Over current ELB, Overheat preventive device
Shelf loading Capacity

15kg/shelf
Shelf support Number

23 steps
Shelf support pitch

30mm

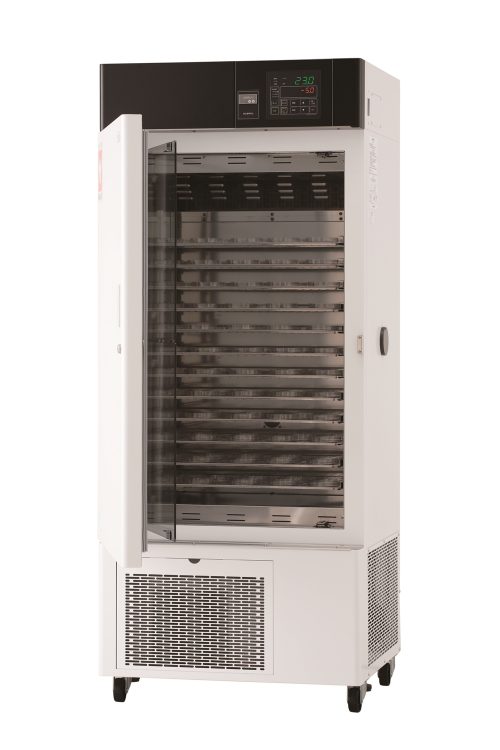

Shelf / support

Stainless steel punching metal 5 shelves / 10 supports
Door Key

2 pcs.

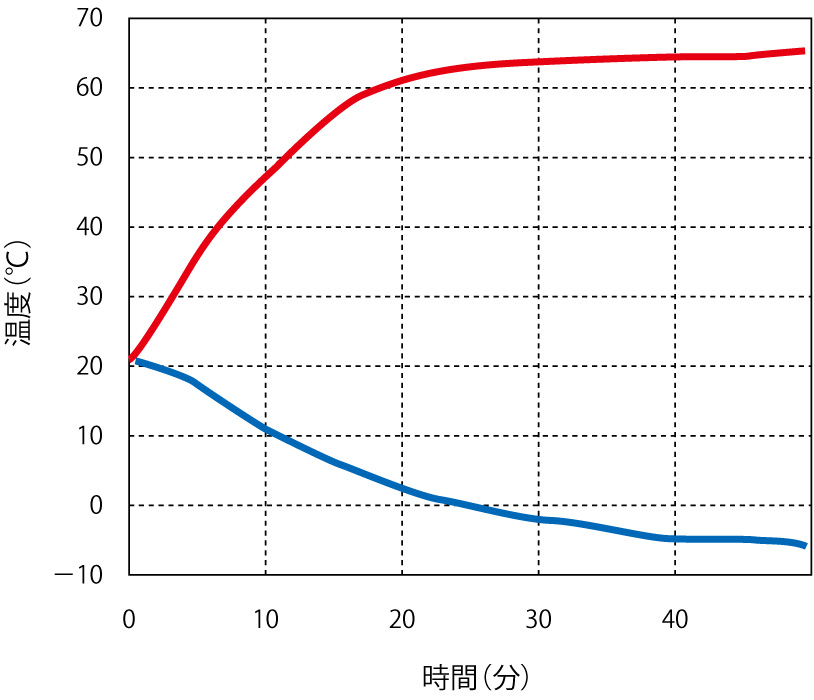

Lowest Temperature Reaching Time

20～0℃　approx. 50min.

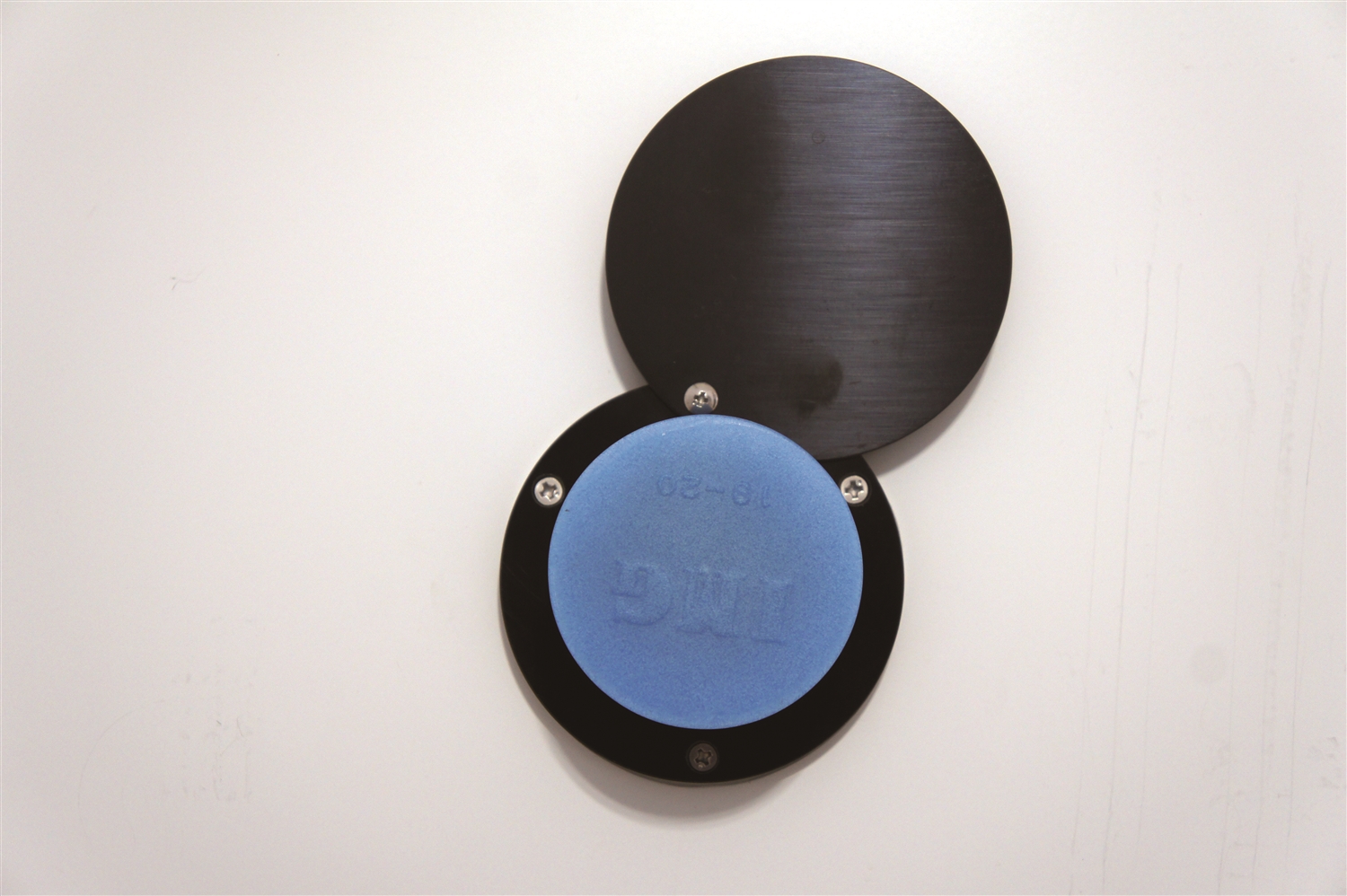

Silicon Stopper for Cable Hole

1 pc.
Operating Temperature Range

0～+60℃
Setting Temperature Range

-5～+65℃
Temperature adjustment accuracy

±0.2℃（at 37℃ during continuous operation), ±0.5℃（at 37℃ cycle operation）
Temperature fluctuation

0.6℃（at 37℃ during continuous operation), 2.0℃（at 37℃ cycle operation）
Temperature distribution accuracy

±0.5℃（at 37℃ during continuous operation）
Temperature Gradient

2.0℃（at 37℃ during continuous operation）
Max. temperature reaching time

20～60℃　approx. 35min.
Item Code

211292
Weight

135kg
Temperature control

PID conrtol
Interior

Stainless Steel
Refrigerator

200W Rotary Unit
Refrigerator Medium

R134a
Operation Range of Freezer

Below 40℃
Defrosting mechanism

Hot gas bypass attribute:Method, Manual(random) defrost / Auto (time) defrost
Sensor

Double sensor:Pt. resistance temperature detector, Pt100Ω(Temperature controller), K-thermocouple(Overheat prevention device)
Cable port

50mm ID （Right side from the front)
Temperature Display

Setting temperature: 5-digit orange LED digital display, Actual temperature: 4-digit green LED digital display
Temperature Display 2

Measured temperature: 4-digit orange LED digital display+ VFD fluorescent display
Timer/Timer Resolution

0～99 hrs. 59min. / 1min.
Cooling Mechanism

Continuous operation, Cycle operation, Cooling-stop operation
Operation function

Fixed operation, Auto stop, Auto start, Quick auto stop, Program (99 steps, 99 patterns)
Additional Function

Calibration off-set function, Electricity & CO2 emmission monitor, Blackout recovery option, Saving and Readout function for user setting, Clock display (24hrs)
Internal dimensions（W×D×H mm）

600×477×1000mm
External dimensions（W×D×H mm）

710×645×1730mm
Remarks(dimensions)

286L
Power Source

AC220V 5A
Single-phase with step down transformer
Exterior

Chrome-free electronic galvanized plated steel plate chemical-proof baking finish
