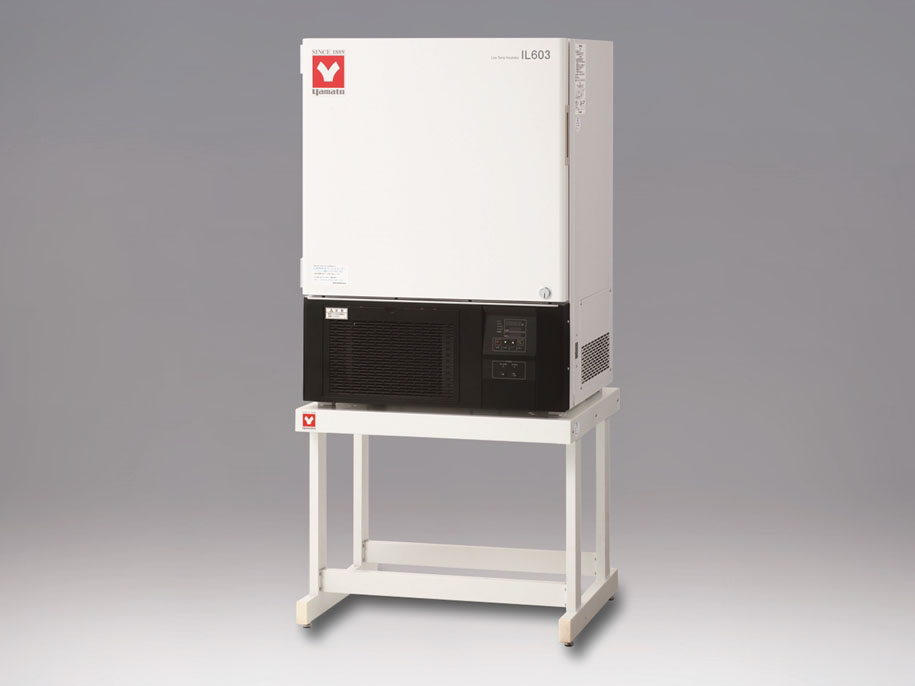

Low Temperature Incubator (Programmable, Air Jacket) (IL603)

Low Temperature Incubator (Programmable, Air Jacket) (IL603)

Description

Constant Low Temperature Incubator of Multi-function and Air Jacket

Features of Low Temperature Incubator (Programmable, Air Jacket) (IL603)

Feature

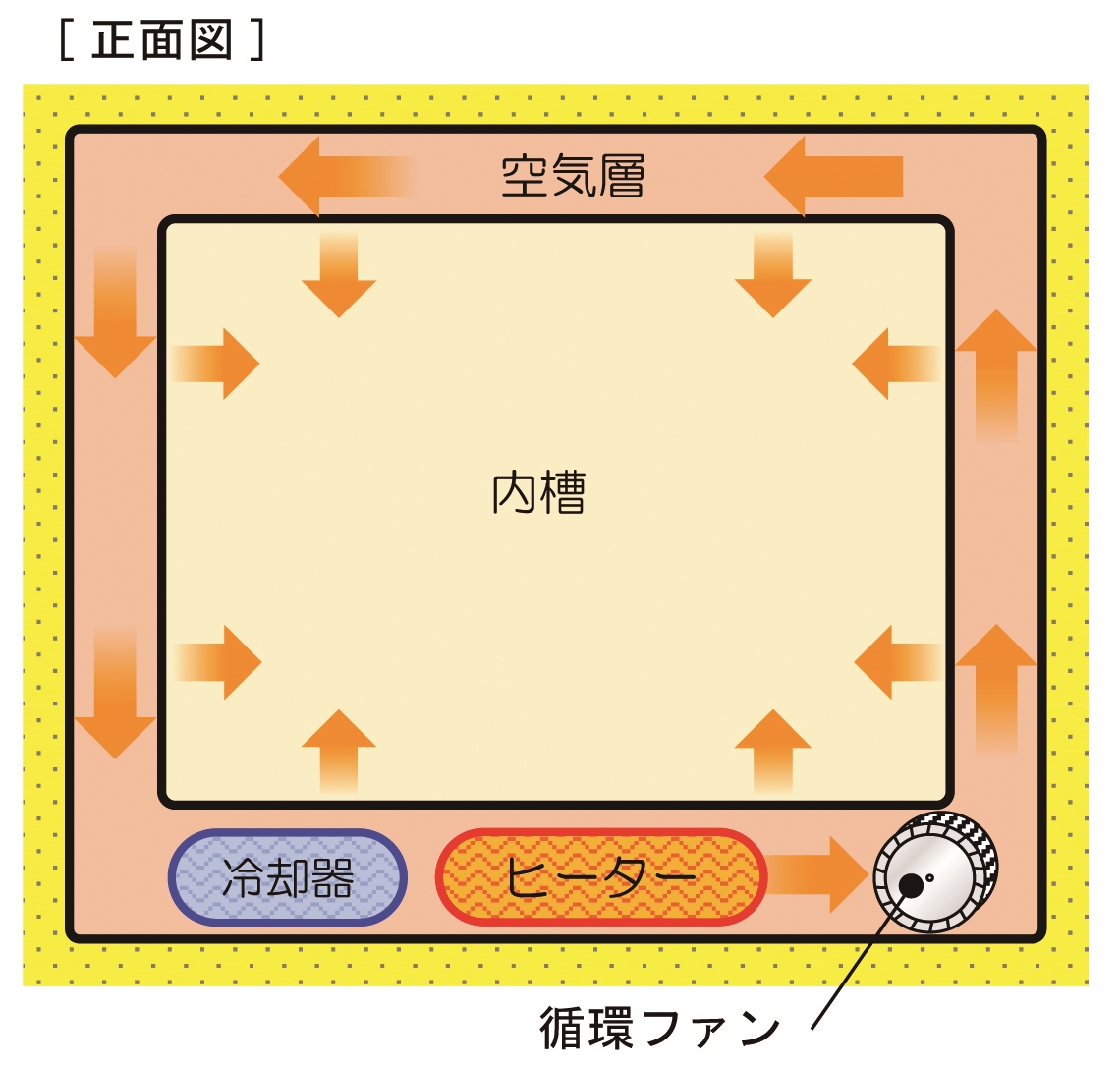

Air jacket and PID control realizes the highly precise temperature control and the uniformity of temperature distribution
Feature
Various functions such as Individual overheat protection, auto start, auto stop, defrost, RS485 communication port, temperature output terminal(4 to 20mA), Alarm output terminal(IL612C)
Feature
Equipped with individual overheat preventor, program function up to 99 steps, fixed temperature ooperation
Feature
Optional cable enables the remote operation control
Safety features
Self-diagnosis, refrigerator heat overload protector, refrigerator delay start protection, overheat protector, electric leakage breaker, key lock, etc.

Additional information

Model

IL603

Temperature controller

VS3P PID control

Weight

105kg

Item Code

211156

System

Natural convection, Air jacket

Operating Temperature Range

0~50℃

Temperature adjustment accuracy

±0.3℃(at 37℃ when refrigerator is in continuous operation), ±1.0℃(at 37℃ when refrigerator is in cycle operation)

Temperature distribution accuracy

±1.0℃(at 37℃ refrigerator is in continuous operation)

Refrigerator

Air cooling enclosed type, 300W, Refrigerant : R134a

Defrost Function

Manual / Cycle

Sensor

Double sensor:Pt. resistance temperature detector, Pt100Ω(Temperature controller), K-thermocouple(Overheat prevention device)

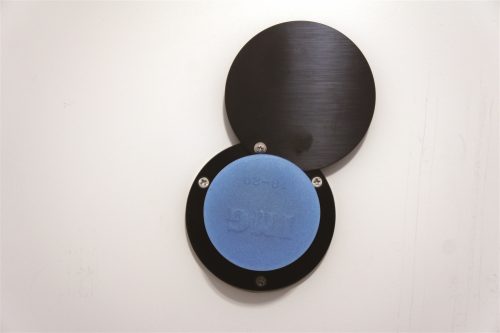

Cable port

50mm ID (Left side from the front) Silicone sponge stopper 1 pc provided

Operation

Fixed temp., Auto-start, Quick auto-stop, Auto-stop

Safety device

Self-diagnosis, Overcurrent ELB, Refrigerator overload relay, Refrigerator delay protection, overheat protector(IL612C), Individual overheat protector (IL812C)

Shelf loading Capacity

15kg/shelf

Shelf support step number

12 steps

Shelf support pitch

35mm

Shelf / support

Stainless steel punching metal 3 shelves / 6 supports

Door Key

2 pcs.

Internal dimensions(W×D×H mm)

600×530×500mm

External dimensions(W×D×H mm)

710×645×1008mm

Remarks(dimensions)

159L

Power Source

AC115V/220V
Single phase
