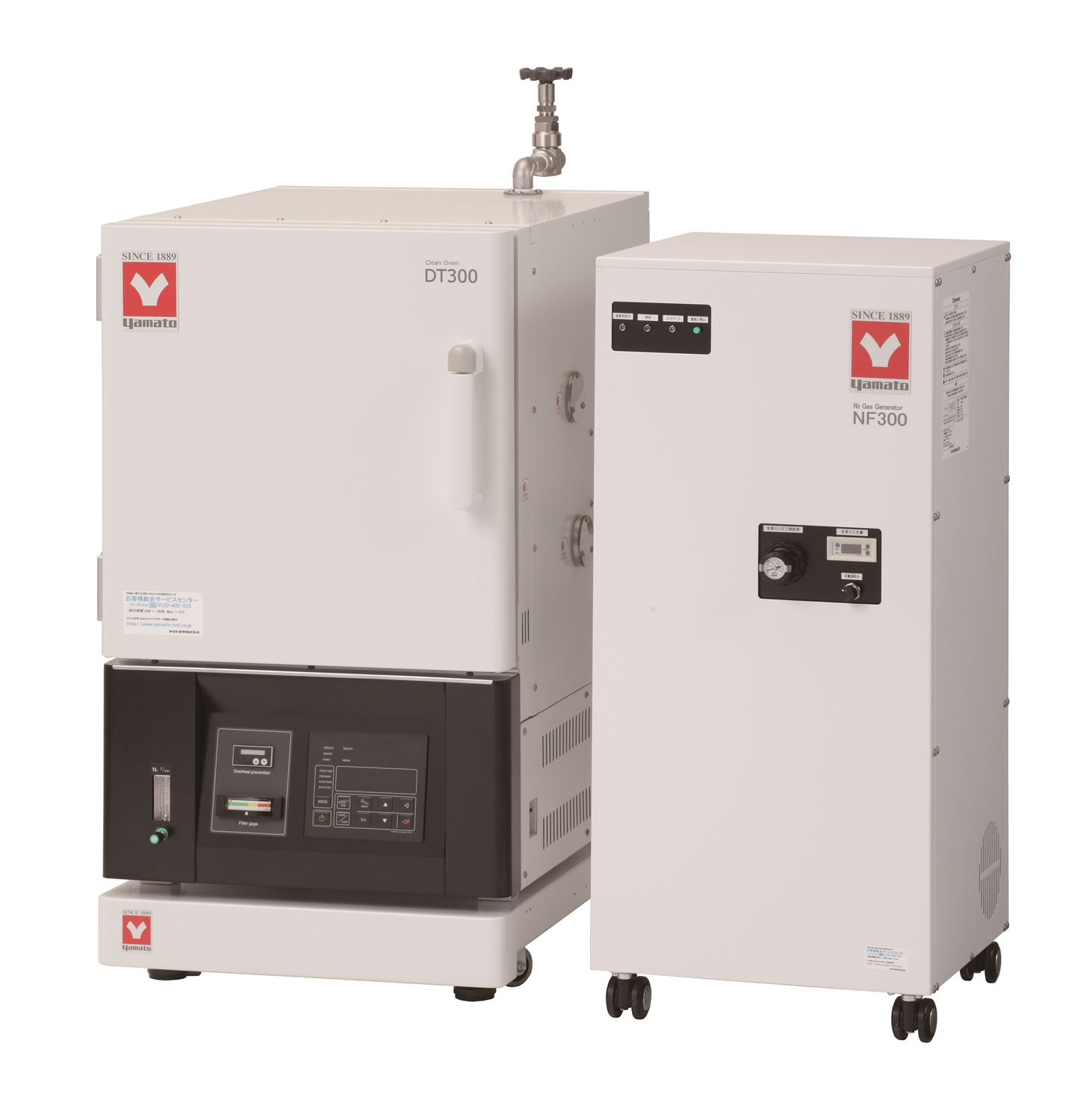

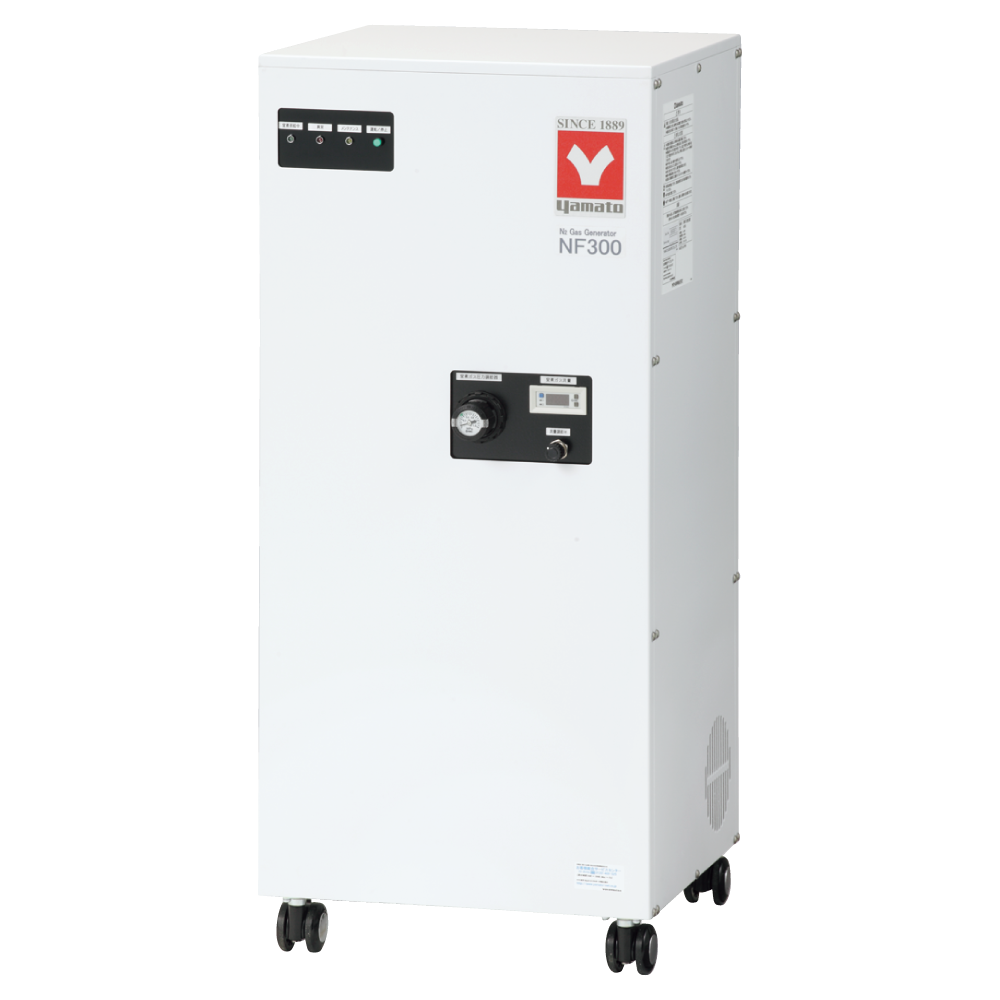

N2 Gas Generator (NF300)

N2 Gas Generator (NF300)

Description

High purity N2 gas (99~99.99%) can be generated by PSA method.

Features of N2 Gas Generator (NF300)

High purity N2 gas (99~99.99%) generator

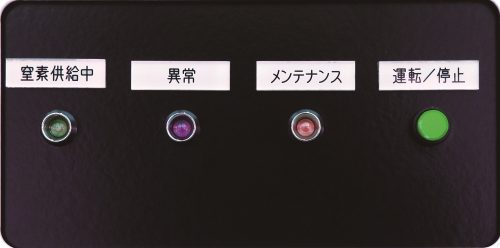

All automatic easy operation with just pressing the switches.
Features
Space-saving design.
Features
High-purity (99~99.99%) and Dry (–60℃ or less) N2 gas can
be obtained.
Features
Equipped with high reliability compressor.
Features
Standard equipped casters can easy transport.
Features
Applications sample: LC/MS FTIR ICP/MS, column drying, concentration of extraction liquid, storage cabinet humidity
control etc.

Additional information

Model

NF300

Surrounding temp. / humidity

Temp. 5~35℃ / 10~80%RH (No Condensation)

Weight

73kg

Item Code

301031

Method

Adsorbent PSA method

N2 gas purity

99~99.99% *

N2 gas generating volume

Max. 10 NL/min

N2 gas pressure

0.05~0.3MPa

N2 gas dew point

-60℃

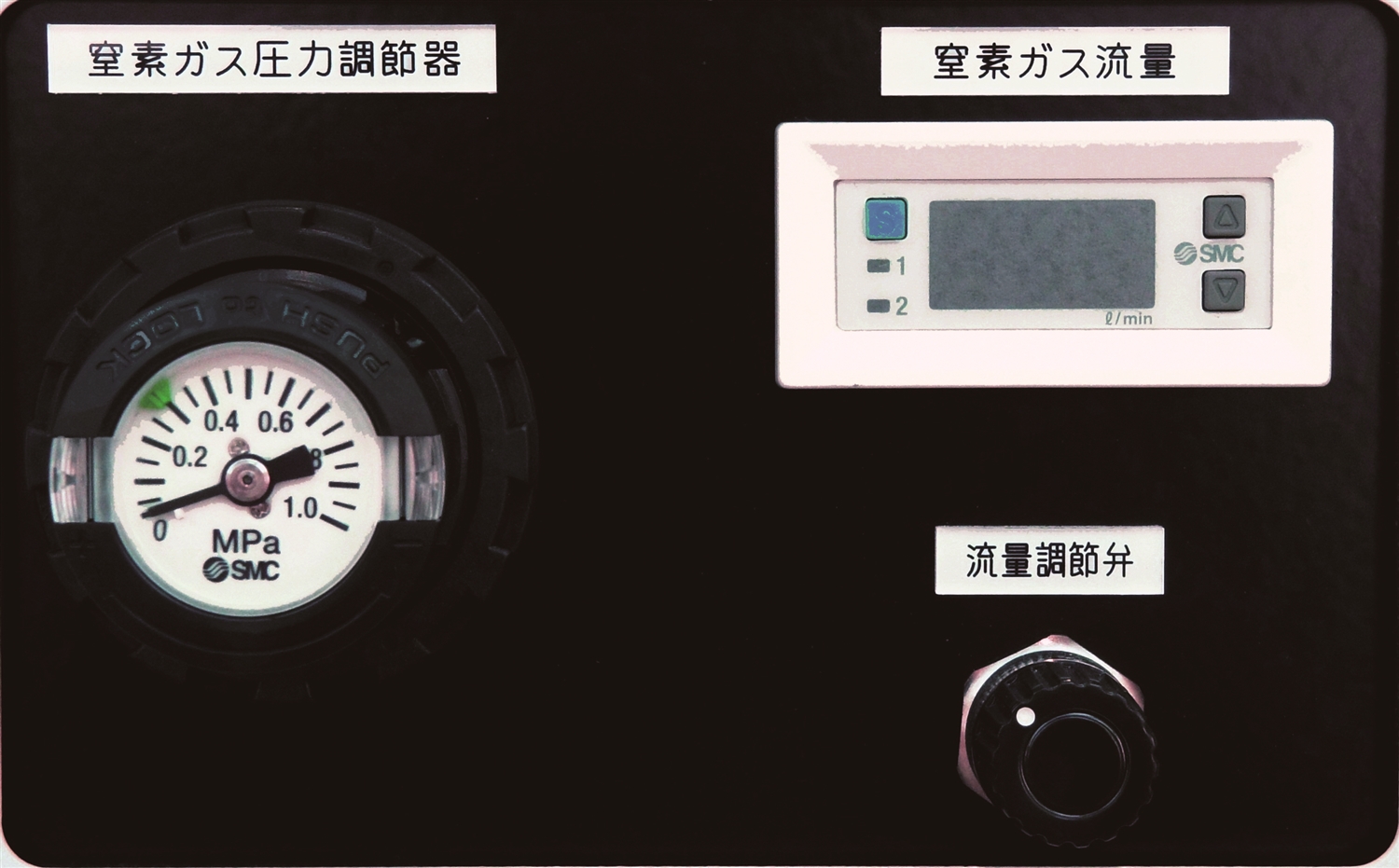

Flow meter

0.5 – 10.0 NL/min, Mass flow meter

N2 gas circulation port

O.D. 6mm, One-touch fitting

N2 gas sampling port

0.3MPa, 200mL/min (Rc 1/4)

Maintenance announcement

4000 hrs. / 8000 hrs.

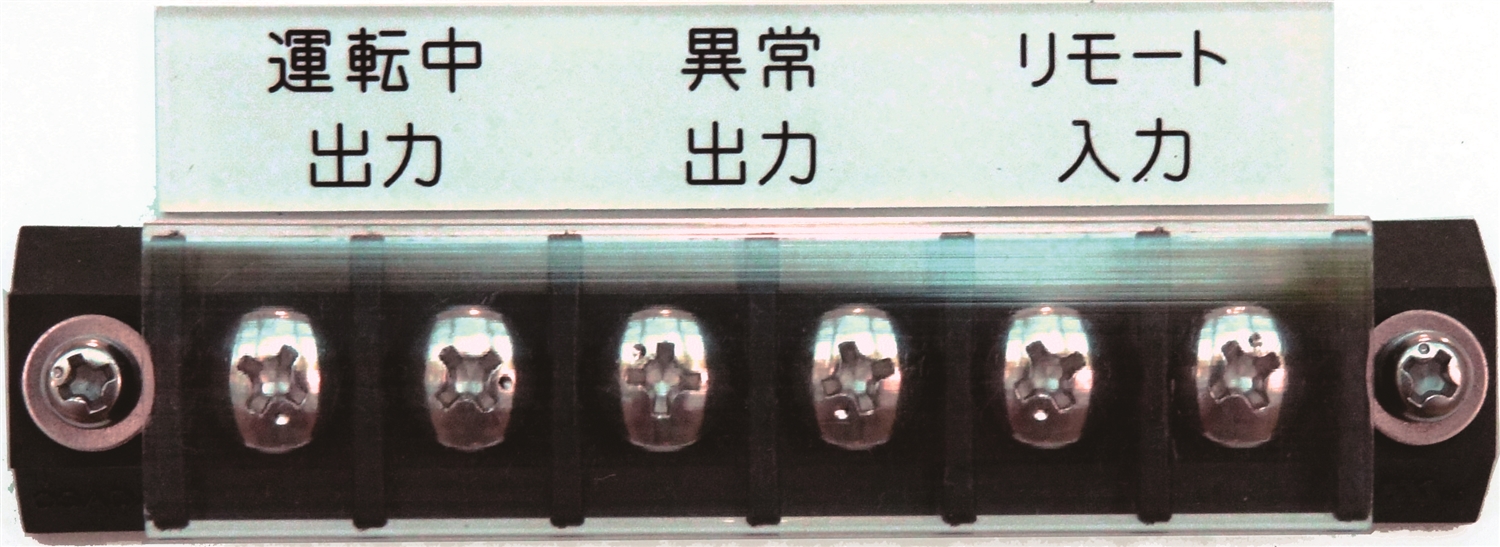

Input / output

Operation output / Error output / Remote input

Input / output 2

50Hz:288W 60Hz:336W

External dimensions(W×D×H mm)

400×400×850mm

Power Source

AC100V 3.9A
