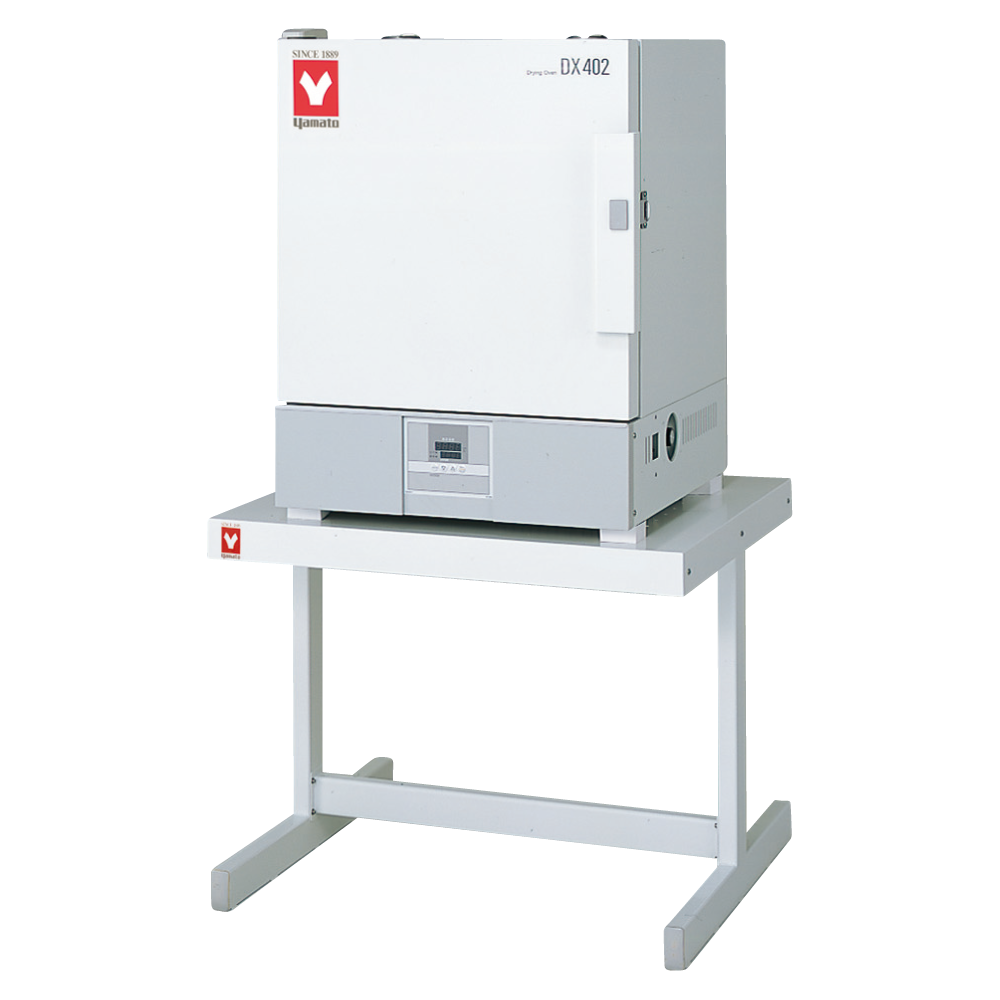

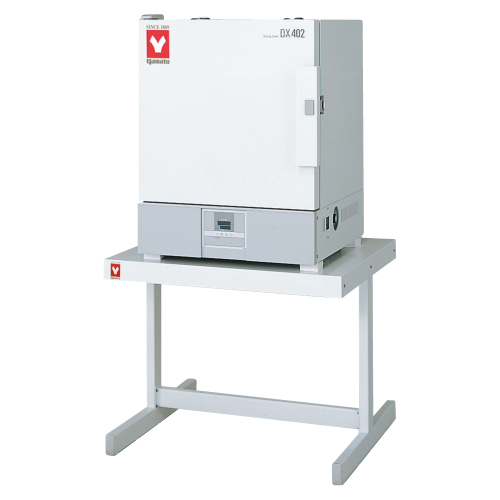

Natural Convection Oven (DX402)

Natural Convection Oven (DX402)

Description

Highly practical standard ovens with maximum temperature up to 300°C

Features of Natural Convection Oven (DX402)

Standard type of natural convection constant temperature drying ovens, with extensive features and simple operation.
Economical and cost saving
Feature
Easy to use and maintain
Feature
Excellent temperature accuracy
Feature
Digital PID controller for easy constant operation with options of Fixed setting
Feature
Quick Auto Stop, Auto Start / Stop operation
Feature
Increased safety and Self-diagnostic function
Feature
Calibration off-set function
Safety features
Temp sensor error, Temp input circuit error, Auto overheat prevention, Measured temp error, Circuit breaker with over current protection

Additional information

Model

DX402

Temp. setting method

Digital setting by UP/DOWN key

Weight

38kg

Item Code

212040

Method

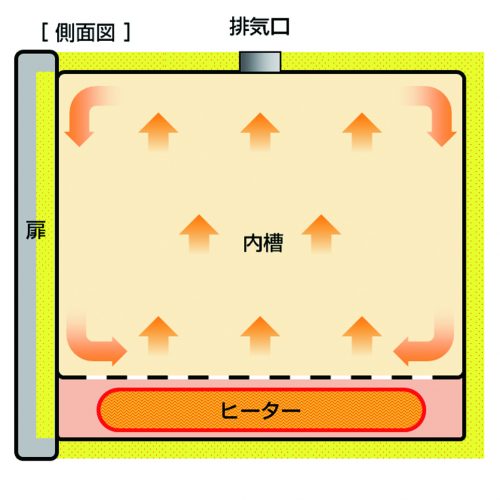

Natural gravity convection

Operating temp. range

Room temp.+5~300℃

Temp. control accuracy

±1℃(at 300℃)

Temp. distribution accuracy

±10℃(at 300℃)

Max. temp. reaching time

Approx. 60 min

Interior material

Stainless steel

Exterior material

Electro-galvanized steel sheet with melamine resin baking finish

Heat insulating material

Glass wool

Heater

Iron-chrome wire heater, 1.36 kW

Exhaust port

Rotary dampers with a 20% opening rate at closing

Temp. controller

PID control by microprocessor

Temp. display method

Measurement temp. : Digital display by green LED Setting temp. : Digital display by red LED

Timer

1 min. to 99 hrs. 59 min. and 100 hrs. to 999 hrs. 50 min.

Operation function

Fixed temperature operation, Quick auto stop, Auto stop, Auto start

Additional Function

Calibration off-set, Power failure compensation function, Key lock function

Heater circuit control

SSR control

Sensor

K-thermocouple

Safety device

Self diagnosis functions(Temp. sensor abnormal, Abnormal memory, Input temp. abnormal, Measured temp. abnormal, Automatic overheat prevention), Key lock function,

Safety device 2

Hydraulic independent overheat prevention device, Electric leakage breaker with over current protection.

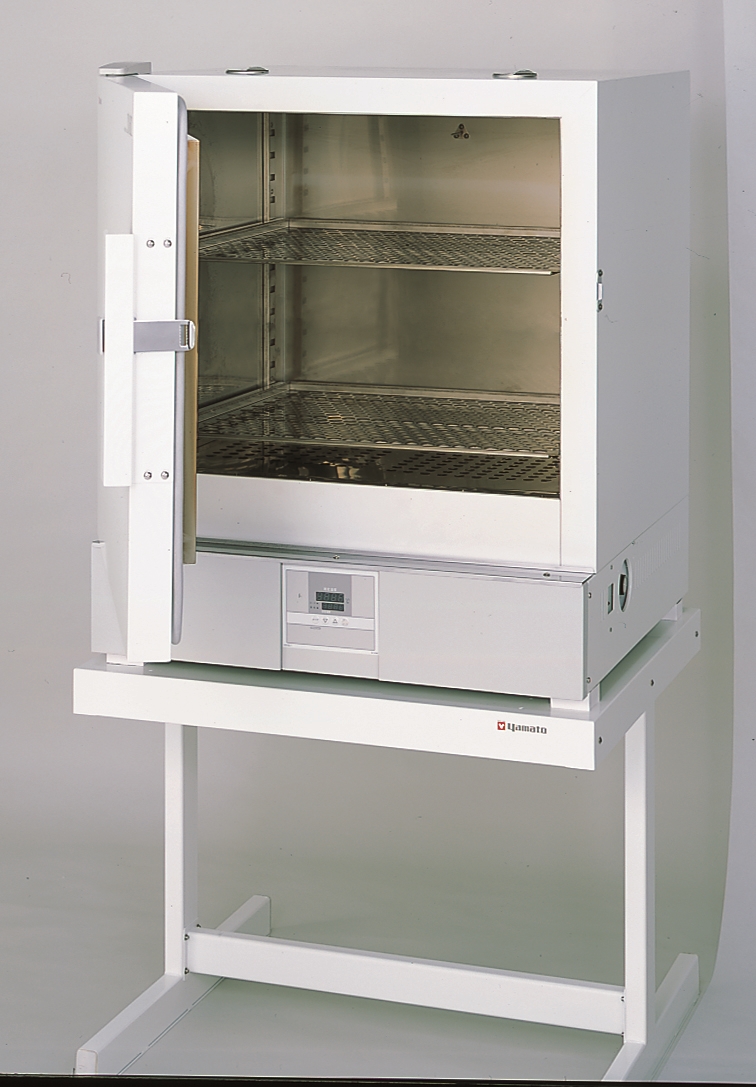

Shelf plate with standard load

15kg/piece

Shelf support step number/pitch

9 steps / 35mm

Internal dimensions(W×D×H mm)

450×410×400mm

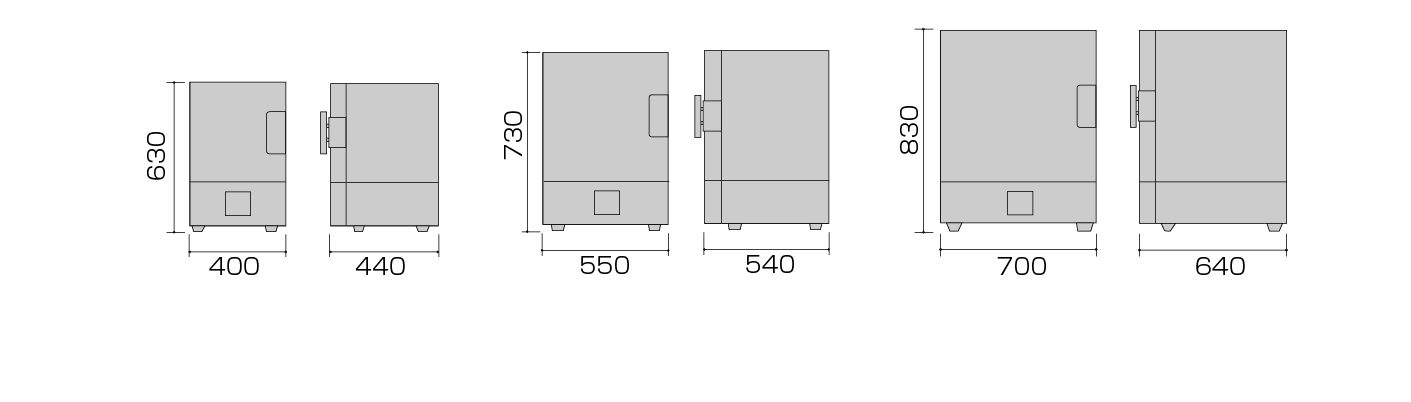

External dimensions(W×D×H mm)

550×540×730mm

Remarks(dimensions)

74L

Power Source

AC220V 7A
Single-phase
