Easier operation is based on variable function settings.

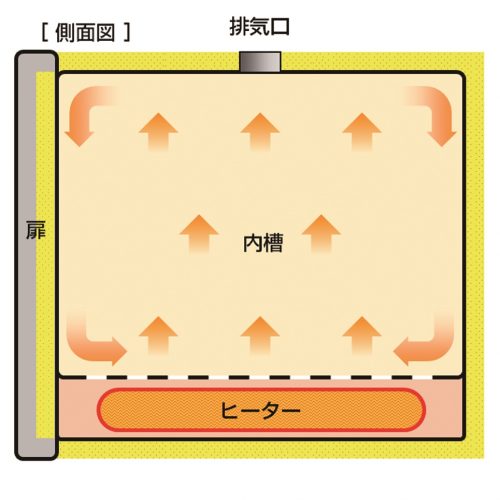

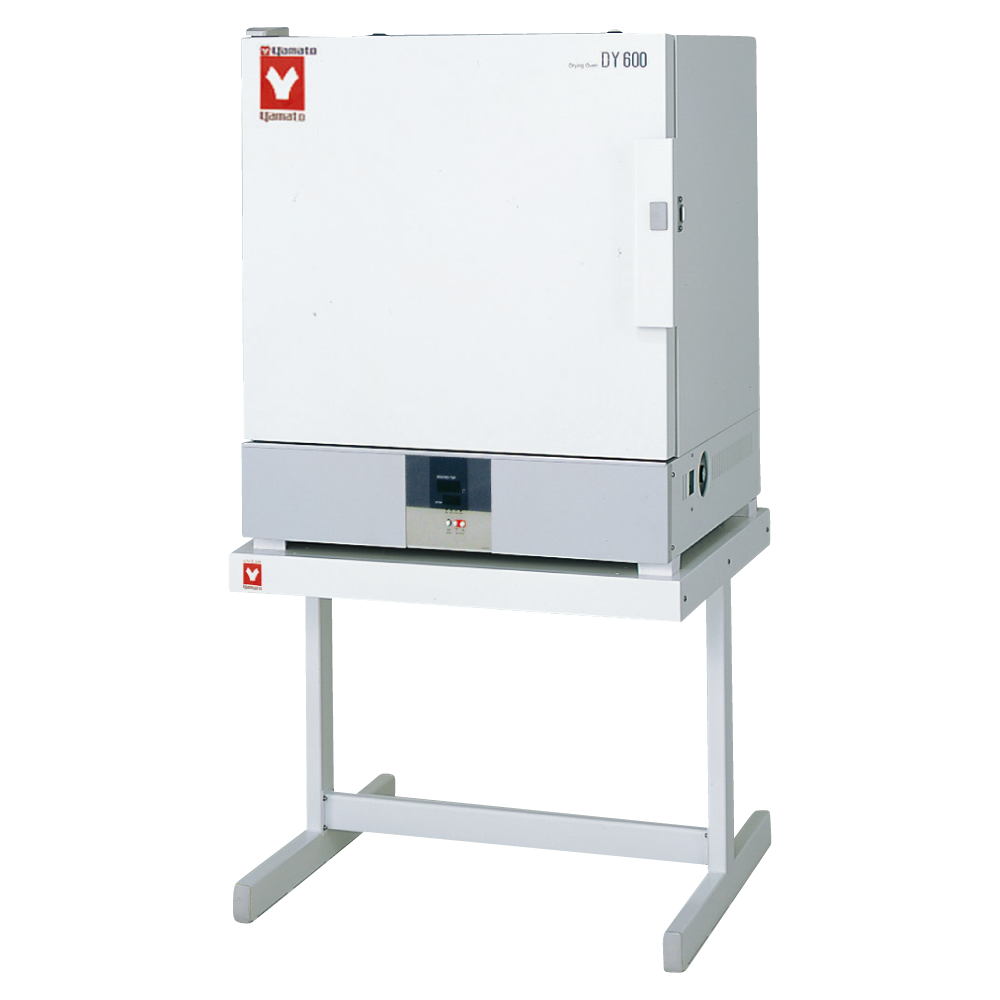

Features of Natural Convection Oven (DY600)
| Model | DY600 |
|---|---|
| Temp. Setting | Digital setting |
| Weight | 56kg |
| Item Code | 212014 |
| Operating temp. range | Room temp.＋5～280℃ |
| Temp. adjustment accuracy | ±1℃（at 280℃） |
| Temp. distribution accuracy | ±10℃（at 280℃） |
| Max. temp. reaching time | Approx. 120 min |
| Interior/exterior material | Stainless steel plate / Baking finish |
| Heater | Iron-chrome wire heater |
| Heater Power | 1.36kW |
| Exhaust port | Rotary dampers with a 20% opening rate at closing |
| Temp. control | PID control |
| Temp. display method | Digitqi display attribute:Method (Resolution:1°C) |
| Timer | 1 min. to 9999 min. |
| Operation function | Fixed temp. operation, Auto stop operation |
| Sensor | Pt100 |
| Safety device | Self-diagnosis (Temp. seosor abnormal), Independent overheat protector, Overcurrent ELB |
| Shelf plate with standard load | Approx. 15kg/pcs. |
| Shelf support step number/pitch | 12 steps / 35mm |
| Shelf plate | Stainless steel punching metal |
| Shelf plate / support | 2 pcs. / 4 pcs. |
| Internal dimensions（W×D×H mm） | 600×510×500mm |

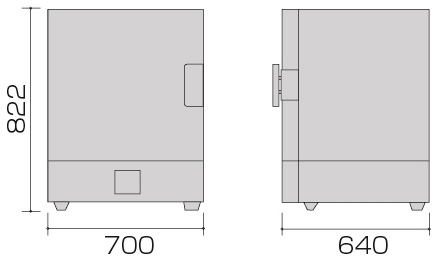

| External dimensions（W×D×H mm） | 700×640×822mm |
| Remarks(dimensions) | 153L |
| Power Source | AC220V 7A |
