Description
High performance temperature control is realized, and the CO2 discharge, power discharge also displayed at the monitor.
Features of Natural Convection Oven (Programmable) (DS401)

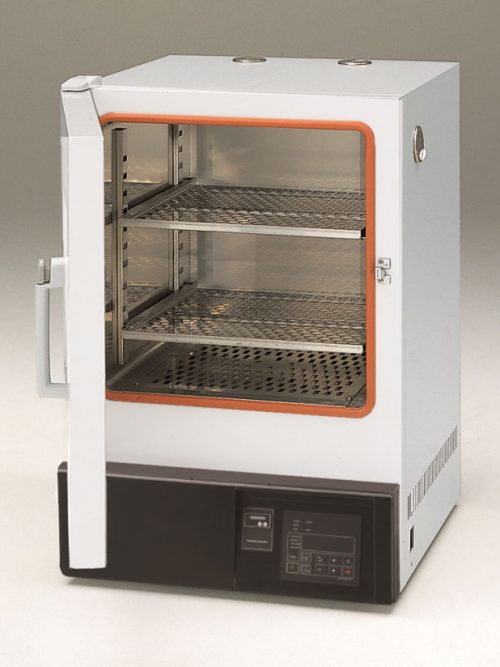

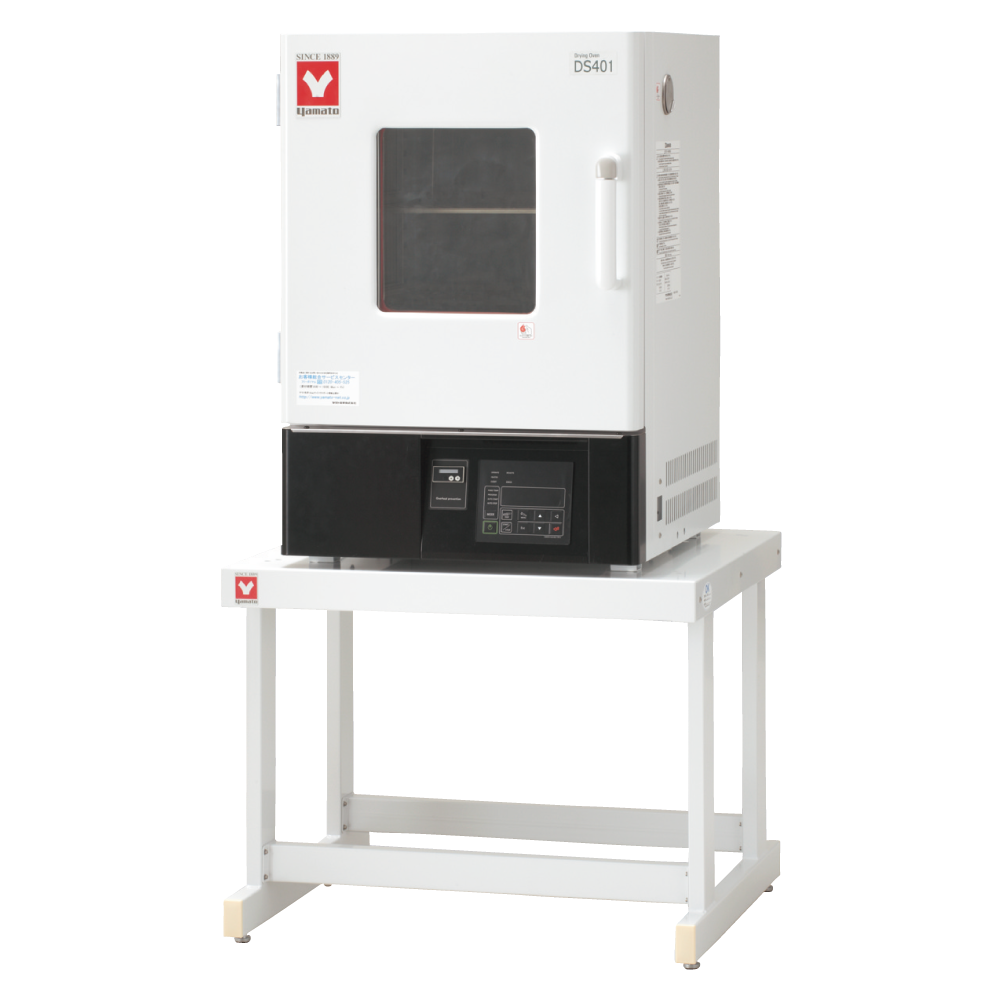

Natural Convection Oven (Programmable) (DS401)
Natural Convection Oven (Programmable) (DS401)
Additional information
| Model | DS401 |
|---|---|

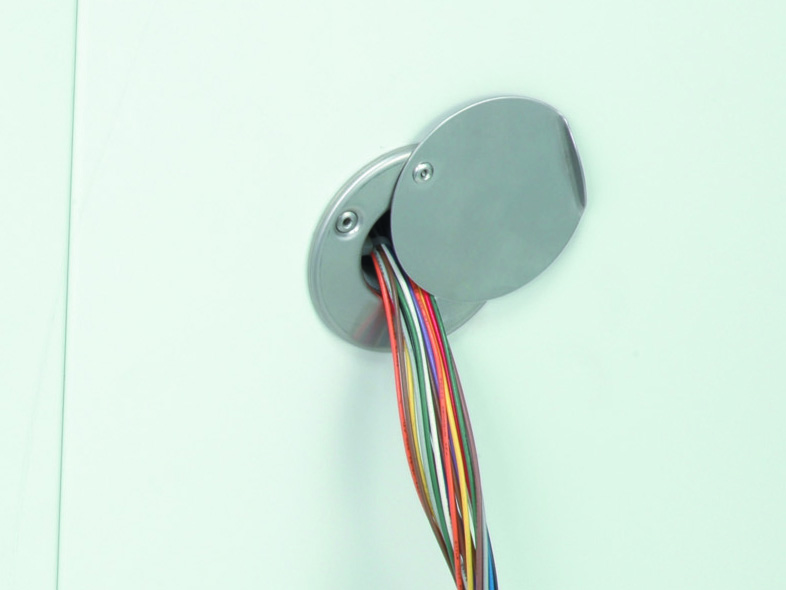

| Cable hole | I.D. 33mm (Right Side) |
| Weight | 51kg |
| Item Code | 212905 |

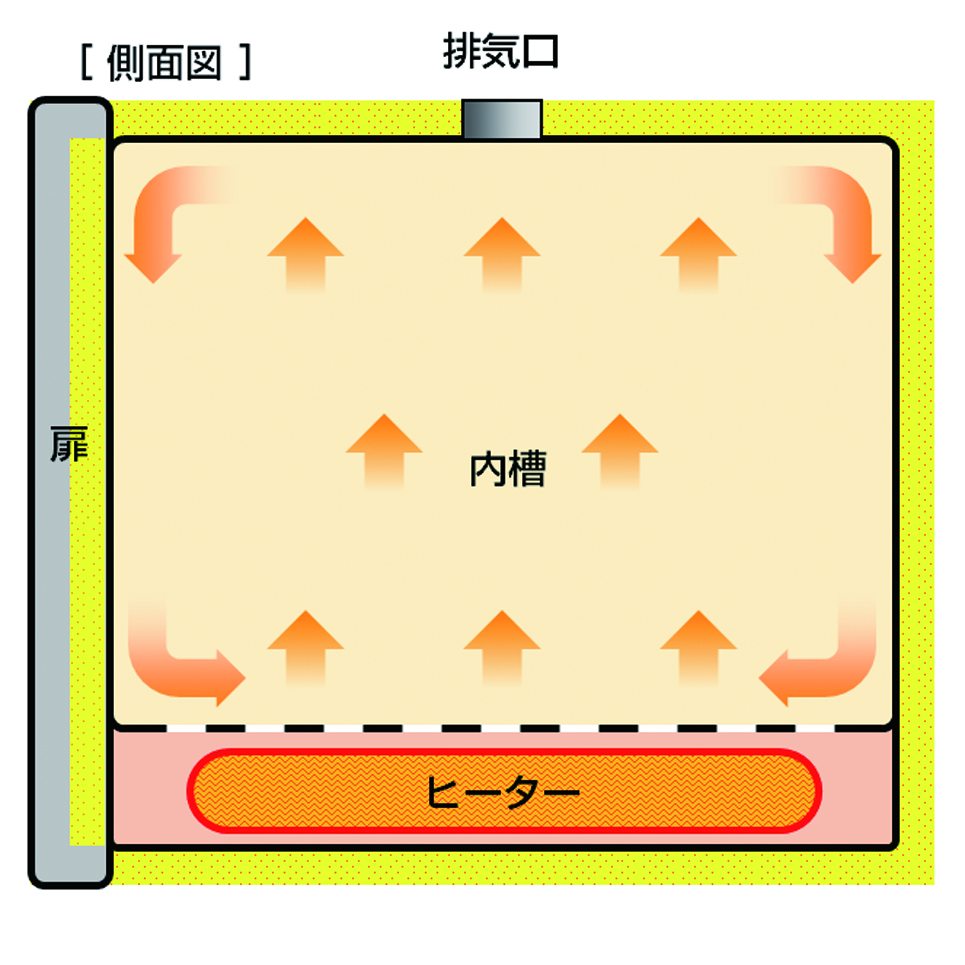

| Circulation Type | Natural Convection |
| Operating Temp. | Room Temp. +5 to 260°C |
| Temp. adjustment accuracy | ±1.0°C (at 260°C ) |
| Temp. fluctuation | 3.0°C (at 260°C ) |
| Temp. distribution accuracy | ±5.0°C (at 260°C ) |
| Temp. Gradient | 20°C (at 260°C) |

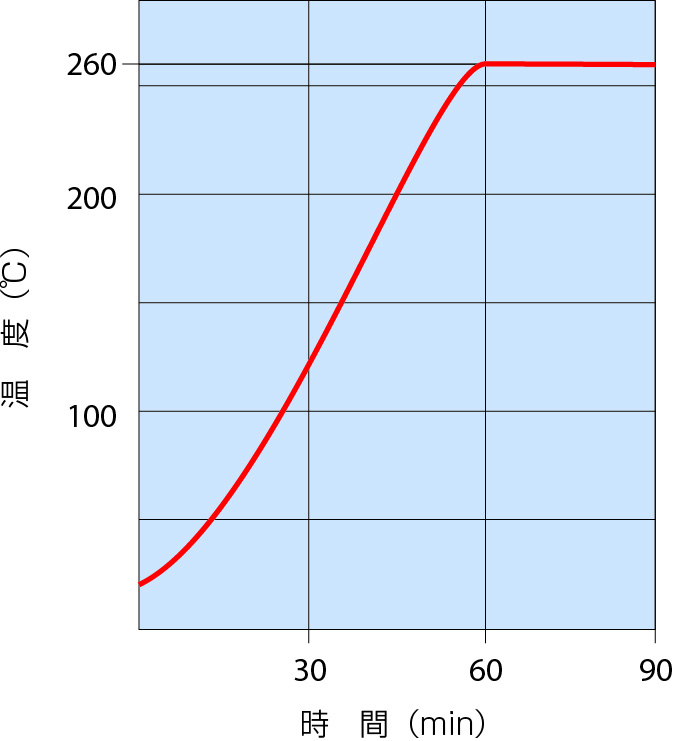

| Max. temp. reaching time | Approx. 70 min |
| Interior material | Stainless Steel |
| Exterior material | Cold Rolled Steel Plate with Melamine Resin Baked Finish |
| Heat insulating material | Glass Wool |
| Heater | SUS Pipe heater 1.2kW |
| Sensor | K-Thermocouple (for temp. adjustment and overheat prevention) |

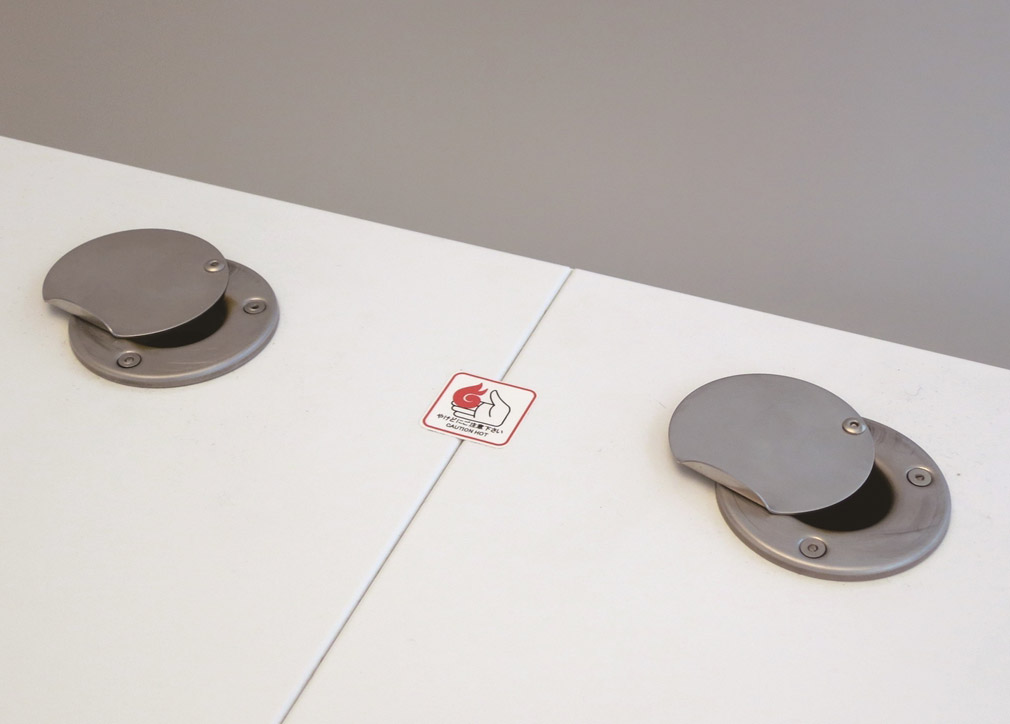

| Exhaust port | I.D. 33mm x 2 (Top Side) |
| Observation window | 250 x 280mm Tempered Glass x 2 pcs |
| Temp. control system | PID Control by Micro Computer |
| Temp. Setting | Digital Setting by UP/DOWN Key |
| Temp. display | Digital Display by Green LED |
| Other Display | Temp. Pattern Display for Operating Display by LED |
| Timer | 1min. to 9hrs.59min. |
| Timer Resolution | 1min. |
| Operating Function | Fixed Temp. Operation, Automatic Start, Automatic Stop, Program Operation , Quick automatic stop |
| Additional Function | Total Operation Hours Timer (to 65535hrs.), calendar time ( 24 hours), calibration offset, Power discharge, CO2 discharge, power failure return mode, user configuration information |
| Heater Circuit Control | Triac Zero-cross Type |
| Safety Countermeasure | Self Diagnosis Function (Abnormal Temp. Sensor, Heater Wire Broken, Triac Short Circuit, Automatic Overheat Prevention), Independent Overheating Prevention, Key Lock, Electric Leakage Breaker |
| Internal dimensions（W×D×H mm） | 450×490×450mm |

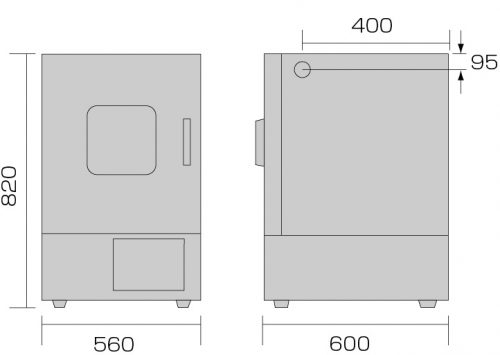

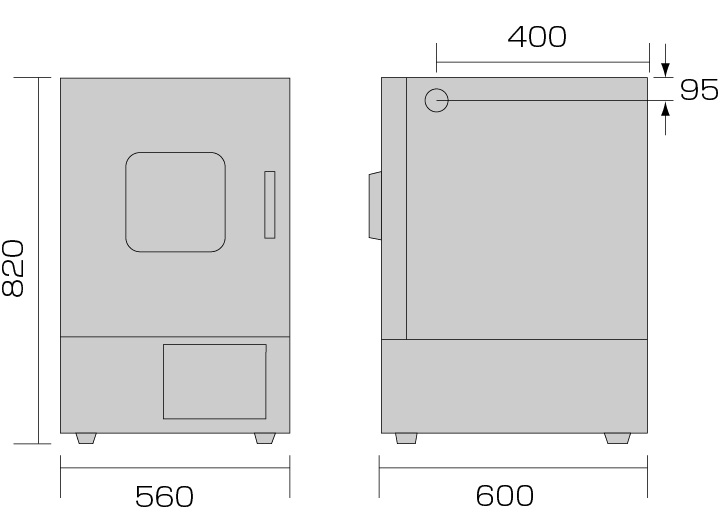

| External dimensions（W×D×H mm） | 560×600×820mm |
| Remarks(dimensions) | 99L |
| Power Source | AC115V 11A |
