Space Saving with 20L or 55L Capacity.

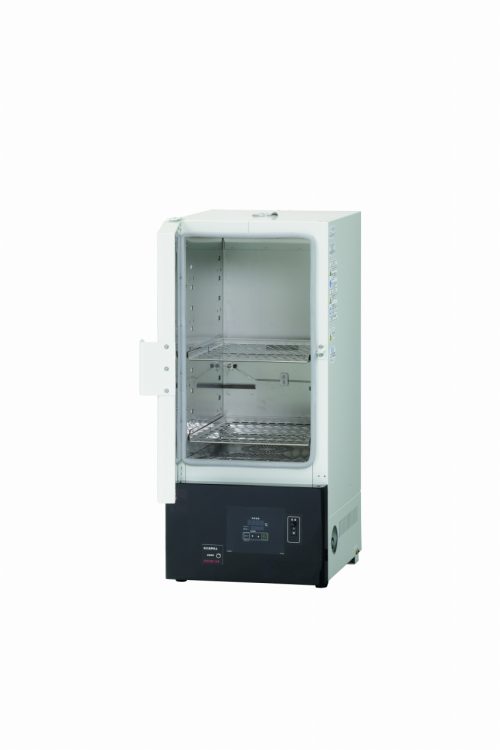

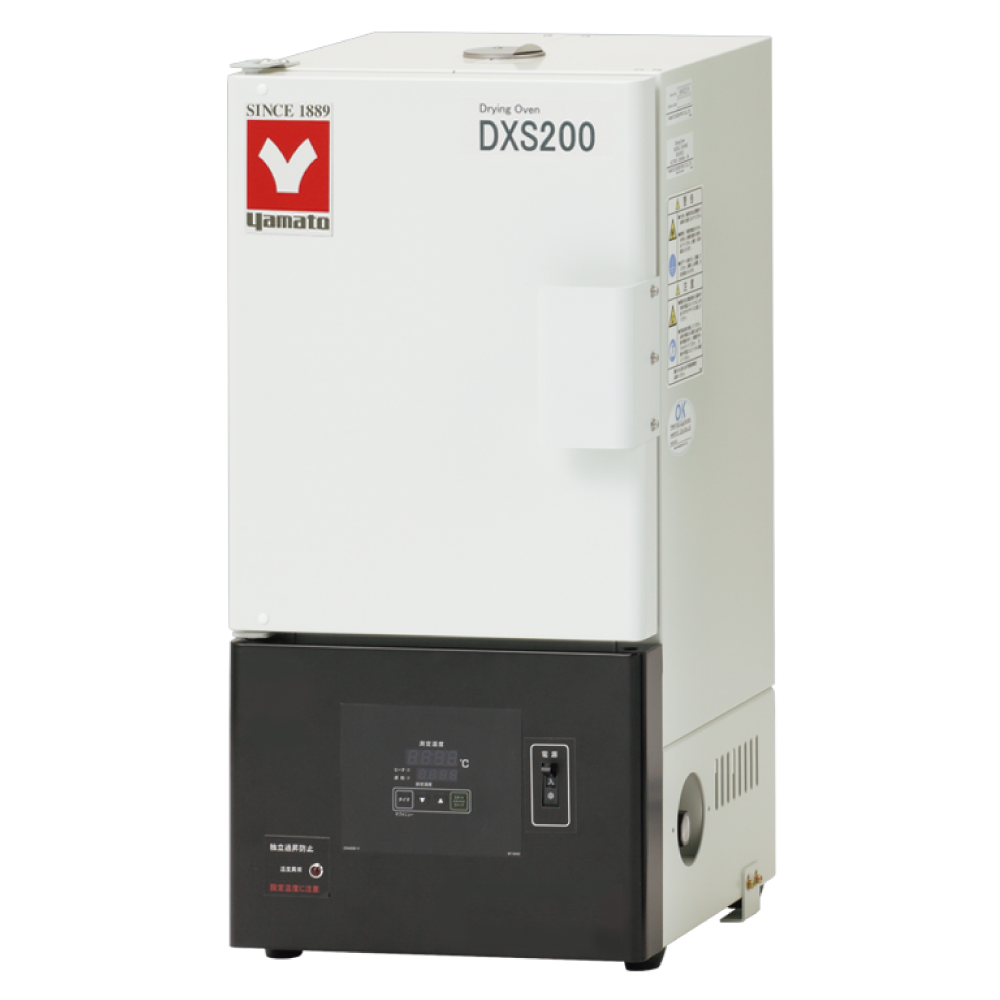

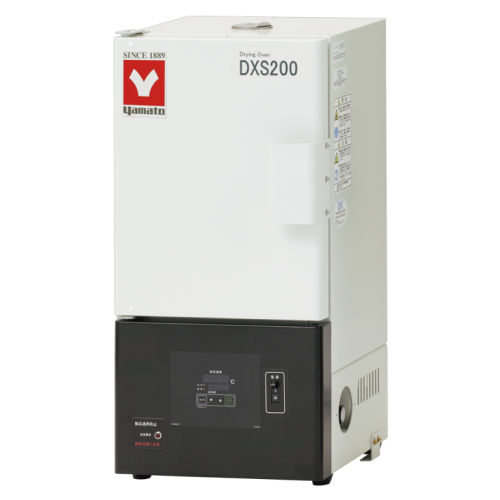

Features of Natural Convection Oven (Slim Type) (DXS200)
| Model | DXS200 |
|---|---|
| Heater | Iron & chromium wire heater 400W |
| Safety Countermeasure | Independent Overheat Prevention by Liquid Pressure Type, Individual Overheat Prevention, Heater Wire Broken/Sensor Input Alarm, Electric Leakage Breaker, Key Lock Function |
| Item Code | 212915 |

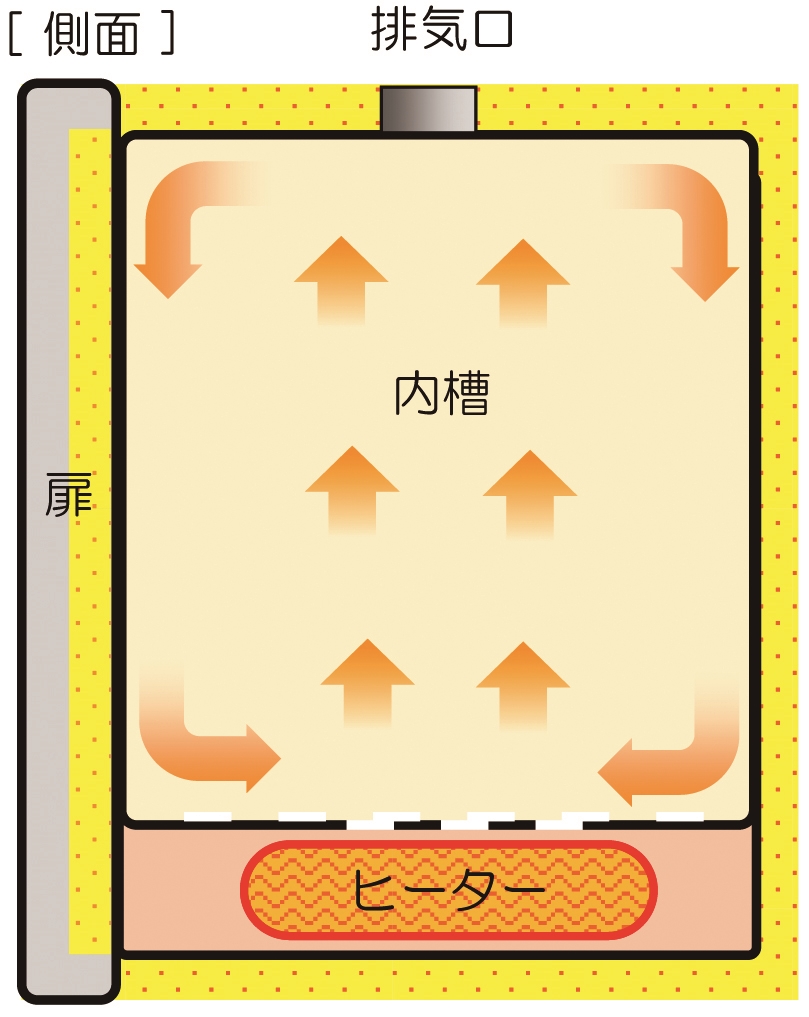

| Circulation Type | Natural Convection |
| Operating Temp. | Room Temp. +5 deg.C to 210 deg.C |
| Temp. adjustment accuracy | ±1 deg.C (at 210 deg.C) |
| Temp. fluctuation | ±3 deg.C (at 210 deg.C) |
| Temp. distribution accuracy | ±10 deg.C (at 210 deg.C) |
| Temp. Gradient | 35 deg.C (at 210 deg.C) |
| Max. temp. reaching time | Approx. 60 min |
| Interior material | Stainless Steel |
| Exterior material | Chrome-free electrogalvanized steel plate with melamine resin baking finish |
| Heat insulating material | Rock Wool |
| Exhaust port | SUS304, I.D. 30mm x 1 (Top Side) |
| Temp. control system | PID control by microprocessor |
| Temp. Setting | Digital Setting by UP/DOWN Key |
| Temp. display | Digital Display by LED |
| Timer | 0 to 999.9hrs. |
| Operation function | Fixed Temp. Operation, Automatic Start, Automatic Stop, Program Operation, Quick automatic stop |
| Operation Panel | Sheet key, (LED; Temperature, Timer Lamp; Heater, Abnormal Temperature) Main switch for Short Circuit Breaker |
| Additional Function | Calibration Off set function, Power failure return mode |
| Internal dimensions（W×D×H mm） | 240×250×340mm |

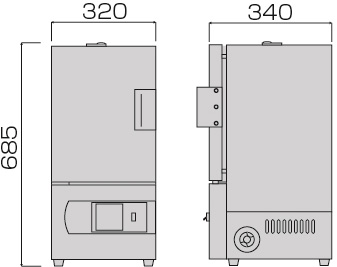

| External dimensions（W×D×H mm） | 320×340×685mm |
| Remarks(dimensions) | 20L |
| Power Source | AC220V 2.1A |
| Weight | 20kg |
