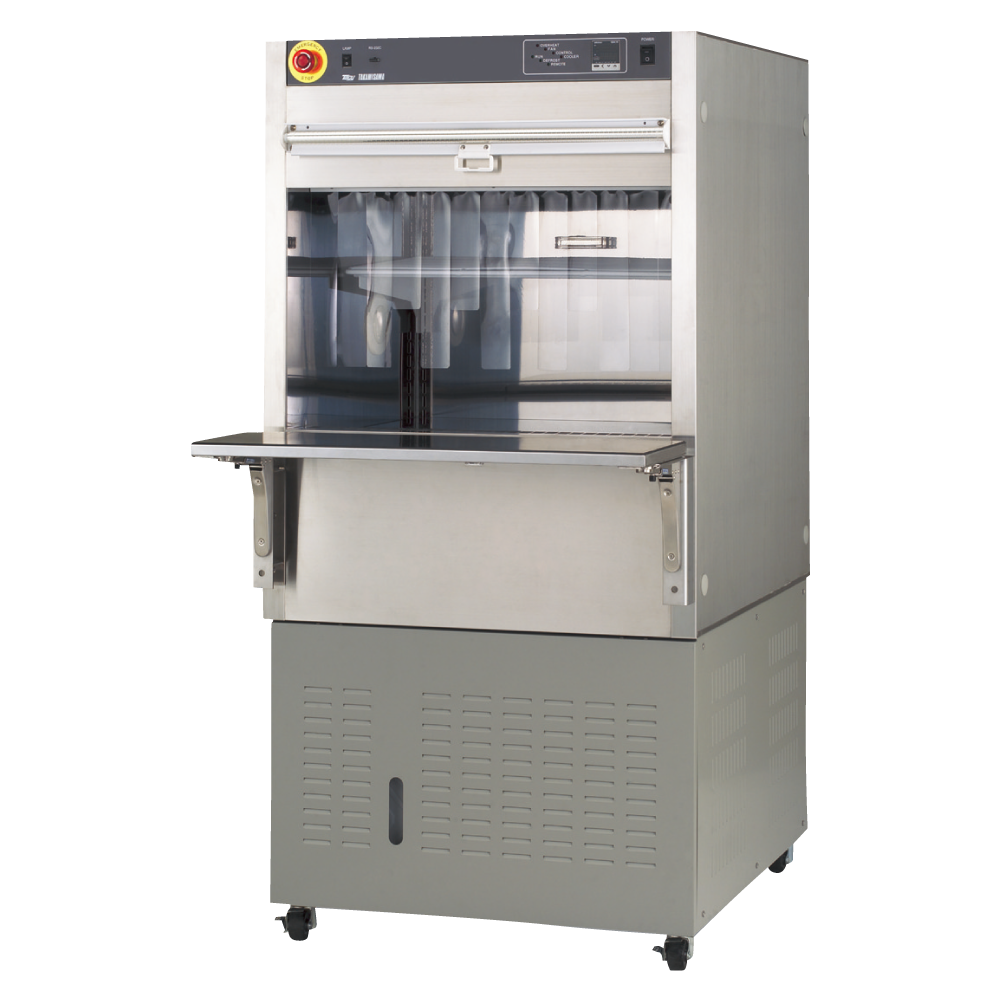

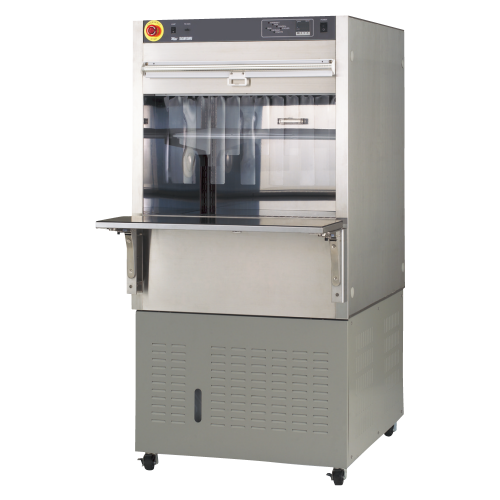

Improve work ability and accuracy with open chamber
Features of Open Chamber (OTC-213A)
| Model | OTC-213A |
|---|---|
| Operating Functions | Fixed setting operation, Automatic defrost mode |
| Weight | 180kg |
| Item Code | 211366 |
| Type | Air curtain type (2 layers) (double stream) |
| Setting temp. range | -15 to +60°C (without econo-cover) |
| Time to reach | Approx. within 30min. from +25 to -15°C |
| Time to reach 2 | Approx. within 20min. from +25 to +60°C |
| Temperature control | PID control by microcomputer |
| Temperature sensor | Pt resistance thermometer |
| Temperature setting type | Digital setting |
| Temperature display type | Digital display |
| Additional Function | N/A |
| External interface | RS232C (Communication function such as temp. setting, Run / Stop, Temp. monitor) |
| Refrigerator/Coolant | Scroll compressor/R404A, 750kW |
| Heater capacity | 1.4kW |
| Chamber lightning | 15W (Incandescent light) |
| Cable hole | I.D. 60mm |
| Safety countermeasures | Abnormal overheat preventor, Abnormal high pressure preventor for compressor, Short-circuit breaker, Motor breaker, Emergency stop switch |
| Accessories | N/A |
| Internal dimensions（W×D×H mm） | 670×500×400mm |
| External dimensions（W×D×H mm） | 750×880×1500mm |
| Remarks(dimensions) | 134L |
| Power Source | AC220V / AC380V |
