Description

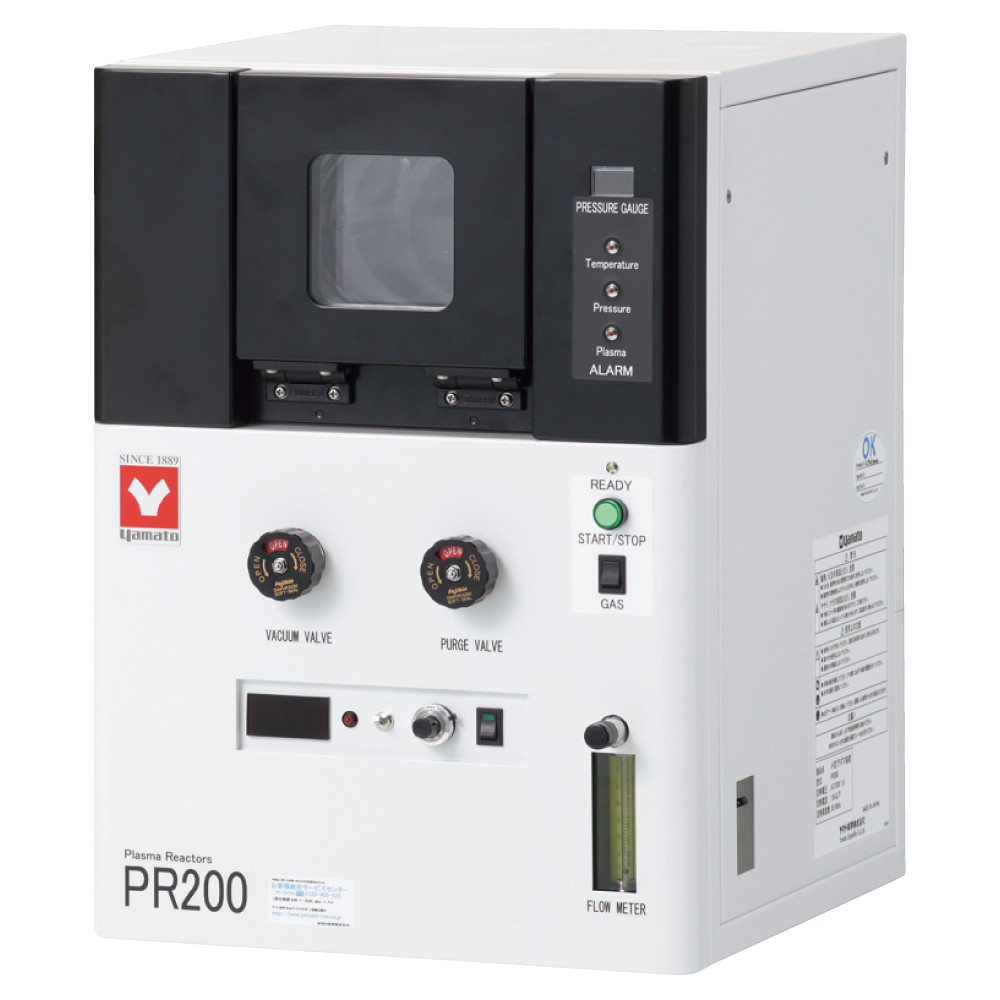

Compact, Barrel Type, Low Temperature Ashing Device

Features of Plasma Reactor (Barrel Chamber) (PR200)

Wide range of application such as ashing, etching, dry cleaning, etc.
RF Power: 200W
Feature
Space-saving due to the compact design
Feature
Adjustable RF power for various application
Feature
Flexible setting range of output to cope with a variety of testings

Additional information

Model

PR200

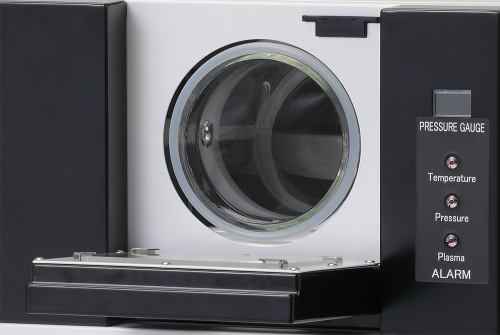

Reaction Chamber

Pyrex Glass φ100× L160mm
Weight

25kg
Item Code

215016
System

DP mode, Barrel type
High Frequency Output

Max. 200W
Oscillation frequency

13.56MHz
Tuning Method

Automatic
Reaction gas System

1 system (oxygen), flow meter
Control System

Manual leakage bulb
Gas Connection Port

SUS、Teflon
External dimensions

W350 × D400× H500mm (without projection）
Accessories

Sample shelf
Internal dimensions（φ×D mm）

φ100×160mm
External dimensions（W×D×H mm）

350×400×500mm
Power Source

AC115VV
/AC220V
