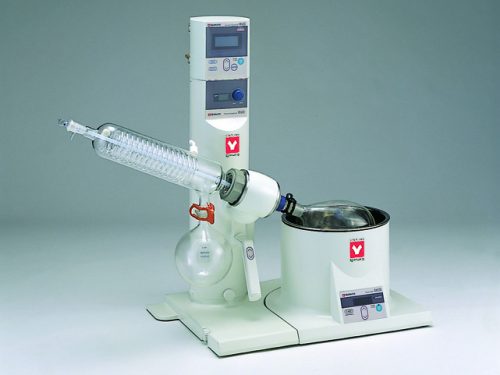

Rotary Evaporator (RE601A-O)

Description

Highly functional type, Standard equipped with motorized lift, vacuum regulator, vapor temperature display functions

Features of Rotary Evaporator (RE601A-O)

Features: One touch electric lift for easy up and down movement.
Features: Digital setting and display for motor speed (rpm), vacuum and vapor temperature.
Features: Stable rotation at low and high speeds.
Features: Unique durable vacuum seal suitable up to 2L flasks.
Features: One touch operation for displaying and saving operating conditions.
Features: Equipped with lift-up switch in the event of power outage.
Features: Compact, fits into any fume hood.
Features: Universal power supply: works with 100-240VAC.

Model	RE601A-O
Operation modes	Free, fixed temperature, fixed temperature timer, descending, and descending timer
Remarks(weight)	Excluding glass · water bath / oil bath
Motor	DC brushless motor (for rotation)
Controller	Vacuum regulator VR600
Lift stroke	130ｍｍ
Setting range of vacuum	0 to 981hPa
Measurable range of vacuum	0 to 1033hPa
Resolution of vacuum	1hPa
Setting range of hysteresis	1 to 50hPa
Resolution of vapor temperature indicator	Selectable (either 1°C or 0.1°C)
Readout of cooling water temperature	Depending on indicator (option)
Resolution of cooling water temperature indicator	1℃ or 0.1℃
Item Code	255433
Memory	10 programs for each operation
Setting range of timer	1-999 minutes in increments/decrements of 1 minute for preset operations, 1-99 minutes for descending timer operations
Data operation	N/A
Speed (rpm) setting	Rotation: Control knob Vacuum adjustment: Key pad
Safety measures (drive unit)	Circuit breaker, rotor for overload protection, manual adjustment of lift's lower limit, lift-up switch during power outage
Safety measures (vacuum regulator)	Self-diagnostic functions, main unit / bath synchronized stop at malfunction, error display
Synchronized control feature	Selection of automatic bath stop or automatic insulation
Lifting feature	One-touch motorized lift system
External dimensions（W×D×H mm）	828×400×727mm
Remarks(dimensions)	When glass set A is installed. Lift-up time: 857 mm
Power Source	AC100 to 240V 1.5A
Weight	15kg
