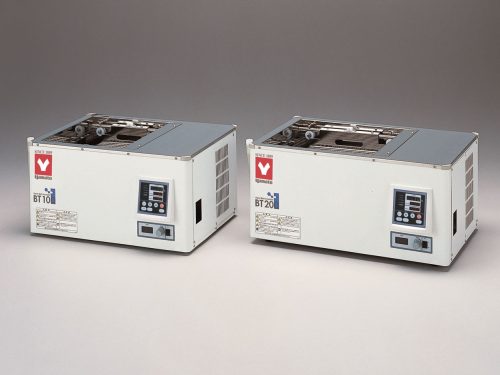

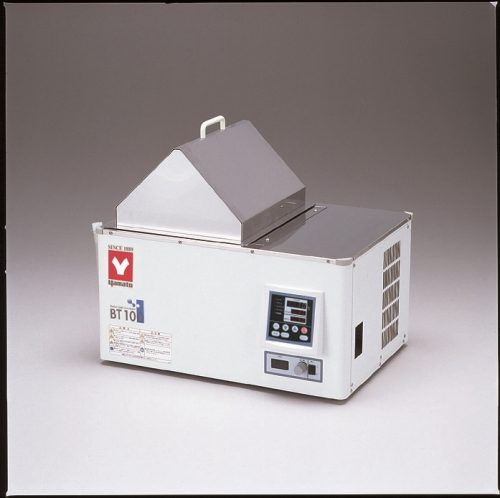

Shaking Water Bath Incubator (BT100)

Description

The BT units are constant temperature water baths that shake. They feature an easy-to-use and flexible inner tank and integrated vibrating design. They also incorporate a thermostat that enables fixed operation and comprehensive safety features.

Features of Shaking Water Bath Incubator (BT100)

Features: The vibration range varies extends from 10 to 40mm and can be freely changed, while the oscillation frequency ranges from 20 to 160 times per minute, allowing for non-incremental speed transition. settings are input using a controller with a digital display.
Features: Settings for the temperature and timer can be easily input using the up and down keys, and the settings appear on a digital display.

Additional information

Model	BT100
Heater	Copper pipe heater (nickel plated) 1.2kW
Weight	27kg
Method	Reciprocating shaking system, Stirring by pump
Operating temp. range	Room temp. +5°C to 80°C（when top cover is installed）
Temperature control accuracy	±0.02°C to 0.08°C
Temperature distribution accuracy	±0.1°C
Temperature rising time	Approx. 95 min.
Shaking frequency	20 to 160 times/min
Shaking width	10 to 40mm (adjustable)
Material (Interior)	Stainless steel
Temp. controller	PID control by microprocessor
Temp. Sensor	Pt resistance thermometer + K thermocouple (double sensor)
Temp setting/display method	Digital setting
Overheat Protector	ON/OFF control by microprocessor
Overheat protect setting method	Digital setting
Item Code	221132
Shaker	Gear motor 25W
Stirring System	Magnet pump 6W
Shaking speed setting system	Analog setting
Shaking speed display system	Digital display
Timer	1 min. to 99 hr. 59 min. Digital display, Quick automatic start/stop
Safety countermeasures	Self-diagnosis function(Heater defective, Sensor defective, SSR short circuit and Overheat protector)
Safety countermeasures 2	over current, short circuit breaker, Heater no-load operation prevention device and overheat protector.
Container flame number, Test tube	Dia : 16.5mm, Length : 150 to 200mm(JIS)　130 pcs.
Flask	Round, Erlenmeyer flask 100/300/500ml, 12/5/3pcs.

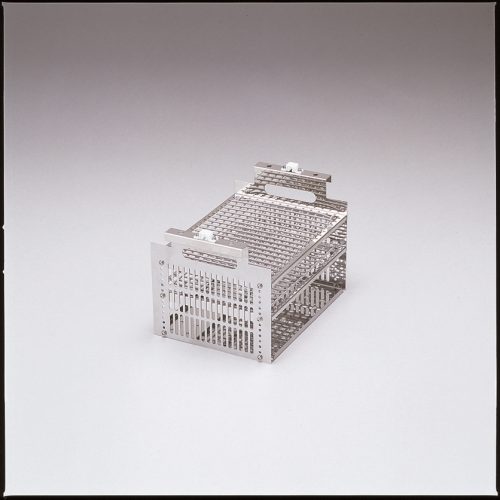

Shaking Rack (Dimensions W×D×Hmm)	1 pc. 290×220×170
Spring Pitch	20mm (both length and width)
Internal dimensions（W×D×H mm）	302×350×250mm
External dimensions（W×D×H mm）	579×414×325mm
Remarks(dimensions)	Internal capacity 19L（When the water is full）
Power Source	AC220V Single phase with step-down transformer
