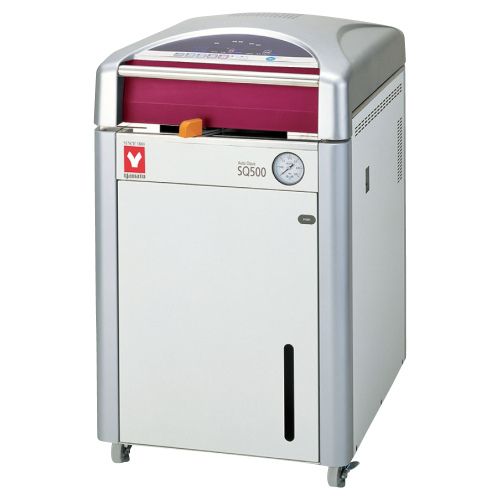

Steam Sterilizer (Laboratory Use, Large Capacity) (SQ500)

Description

High-performance, easy operation and ergonomically designed sterilizer featuring wasy top loading and handling of samples

Features of Steam Sterilizer (Laboratory Use, Large Capacity) (SQ500)

Features: Maximum sterilizing temperature goes up to
135°C suitable for protein modification
Features: By simple setting and operation, these sterilizers
manage ordinary sterilization, sterilization
of culture mediums and liquids, and melting of
culture mediums
Features: Custom programs can be saved for repeated
use
Features: Standard equipped with timer start and pre-heating
features for efficient use of time and cooling fan
to shorten cool down time
Features: Mobile on wheels
Enhanced safety device: Lid interlock mechanism,Drain bottle unset alarm,Memory malfunction,Automatic shutdown when malfunction,Self-diagnostic functions

Additional information

Model	SQ500
Item Code	241008
Weight	95kg
System	Automatic high-pressure steam sterilization
Operating temperature range	45～135℃（45～80℃［pre heating temperature］/45～60℃［heat retention phase ］/65～100℃［disolution phase ］/105～135℃［sterilizing phase］）
Max. working pressure	0.255MPa
Ambient temperature	5～35℃
Lid	Manual upward opening with an interlock for safety
Heater	1000W×2 units
Exhaust valve	One exhaust valve and one slow release valve
Connection ports for optional	Total 3 ports. Female thread for sample temp. sensor (1/4" ), Female thread for chamber temp. sensor (1/4" ),
Cooling fan	Axial fan motor
Temp. controller	PID control by microprocessor

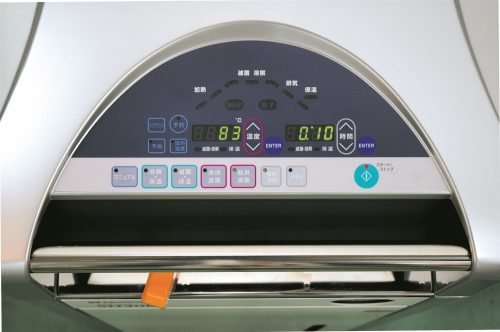

Temp. Display / setting	Digital display / digital setting by ▲/▼ keys
Timer / Timer resolution	0 or 1 min. to 99 hrs 59 min. / 1 minute
Operation mode	Instrument sterilization course, Liquid sterilization course, Sterilization and keep warm course, Melting and keep warm course,
Other features	Key locking, Presetting, Saving, preheating, Forced cooling, Sample temperature sensor (option), Pattern locking,
Safety device	Sensor failure detection, SSR short-circuit, Broken heater wire, Prevention of idle heating (Liquid expansion type),
Accessories	2 pcs. stainless steel mesh basket, Vapor cup×1, Drain bottle×1, Drain board×1, Filter×1
Internal dimensions（φ×H mm）	φ370×442mm
External dimensions（W×D×H mm）	520×660×846mm
Remarks(dimensions)	Internal dimension of chamber　47.5L
Power Source	AC100～120V Blaker capacity　20.5～24.5A
