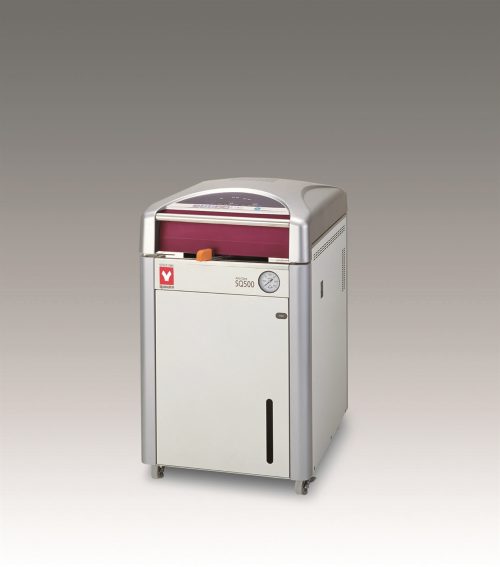

Steam Sterilizer (Laboratory Use, Large Capacity) (SQ810C *Limited product for overseas)

Steam Sterilizer (Laboratory Use, Large Capacity) (SQ810C *Limited product for overseas)

Description

High-performance, easy operation and ergonomically designed sterilizer featuring wasy top loading and handling of samples

Features of Steam Sterilizer (Laboratory Use, Large Capacity) (SQ810C *Limited product for overseas)

Features
Maximum sterilizing temperature goes up to
135°C suitable for protein modification
Features
By simple setting and operation, these sterilizers
manage ordinary sterilization, sterilization
of culture mediums and liquids, and melting of
culture mediums
Features
Custom programs can be saved for repeated
use
Features
Standard equipped with timer start and pre-heating
features for efficient use of time and cooling fan
to shorten cool down time
Features
Mobile on wheels
Enhanced safety device
Lid interlock mechanism,Drain bottle unset alarm,Memory malfunction,Automatic shutdown when malfunction,Self-diagnostic functions

Additional information

Model

SQ810C *Limited product for overseas

Temp. controller

PID control by microprocessor

Weight

105kg

Operating temperature range

45~135℃(45~80℃[pre heating temperature]/45~60℃[heat retention phase ]/65~100℃[disolution phase ]/105~135℃[sterilizing phase])

Max. working pressure

0.255MPa

Ambient temperature

5~35℃

Lid

Manual upward opening with an interlock for safety

Heater

100V, 1000W×2 units

Exhaust valve

One exhaust valve and one slow release valve

Connection ports for optional

Total 3 ports. Female thread for sample temp. sensor (1/4" ), Female thread for chamber temp. sensor (1/4" ),

Cooling fan

Axial fan motor

System

Automatic high-pressure steam sterilization

Timer / Timer resolution

0 or 1 min. to 99 hrs 59 min. / 1 minute

Temp. Display / setting

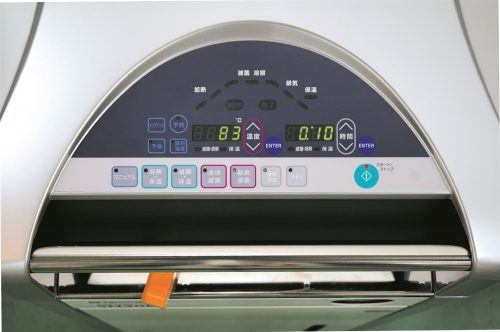

Digital display / digital setting by ▲/▼ keys

Operation mode

Instrument sterilization course, Liquid sterilization course, Sterilization and keep warm course, Melting and keep warm course,

Other features

Key locking, Presetting, Saving, preheating, Forced cooling, Sample temperature sensor (option), Pattern locking,

Safety device

Sensor failure detection, SSR short-circuit, Broken heater wire, Prevention of idle heating (Liquid expansion type),

Accessories

3 pcs. stainless steel mesh basket, Vapor cup×1, Drain bottle×1, Drain board×1, Chemical indicator 1 set (30 pieces), Filter×1

Internal dimensions(φ×H mm)

φ370×750mm

External dimensions(W×D×H mm)

520×660×1161mm

Remarks(dimensions)

Internal dimension of chamber 80L

Power Source

AC200~240V
Blaker capacity 12.5~10.5A
