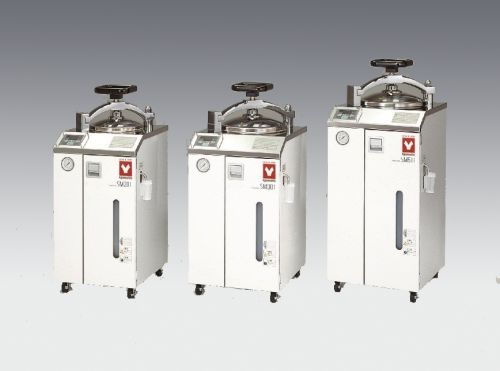

Steam Sterilizer (Laboratory Use, with Drying Process) (SM501 *Limited product for overseas)

Home » Products » Steam Sterilizer (Laboratory Use, with Drying Process) (SM501 *Limited product for overseas)

Category: SM Series

Description

Fully automatic sterilization from start to the end with high pressure steam sterilization followed by “Drying” process

Features of Steam Sterilizer (Laboratory Use, with Drying Process) (SM501 *Limited product for overseas)

Feature: Automatic operation from sterilization to drying process can be easily set by the interactive key input system.
Features: Quick sample drying function makes samples ready to use right after sterilization.
Features: Drying temperature can be set depending on the application within the range from 150 to 180℃.
Features: The water level in drain bottle can be easily checked with the level indicator on the front panel.

Model	SM501 *Limited product for overseas
Temp. Display	Digital display by green LED and setting by UP/DOWN key
Weight	85kg
Power Source	115V 15A 0
Remarks(dimensions)	47L
External dimensions（W×D×H mm）	440×530×1088mm
Internal dimensions（φ×H mm）	φ300×655mm
Timer/Resolution	1 min. ～99hrs. and 59min./100～999hrs./1min. or 1hr.
Temp. controller	PID control by microprocessor
System	Automatic high-pressure steam sterilization
Interior	Stainless steel
Accessories	Stainless steel mesh basket (262dia. x 315Dmm) x 2 pcs., Drain board, Chemical indicator strip, Drain bottle, Condensation collection container with magnetic bracket, each 1 pc.
Safety device	Self-diagnostic functions(Detection sensor error, SSR short circuit, Heater disconnection, Main relay error), Safety valve, ELB, Drain bottle switch
Max. pressure capacity	0.2MPa
Operating temp. range (Drying)	150～180℃
Operating temp. range (Sterilization)	105～128℃
