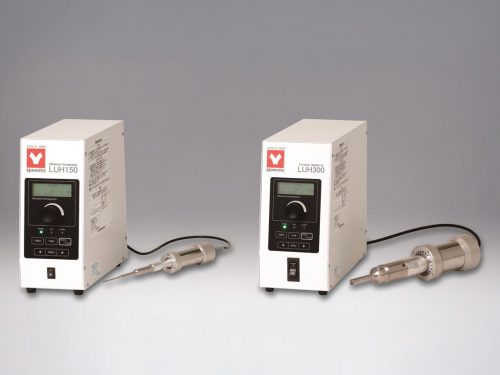

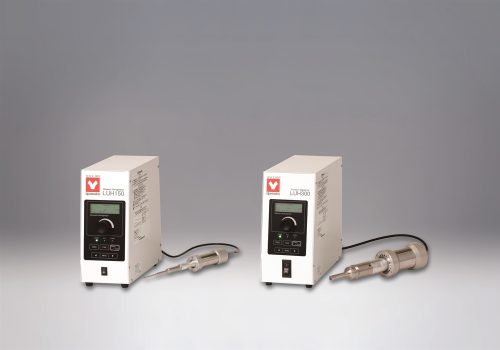

Ultrasonic Homogenizer (LUH150)

Description

This homogenizer, using ultrasonic oscillation, does not add any unreasonable stress on the sample

Features of Ultrasonic Homogenizer (LUH150)

Principle: The homogenizer generates oscillation of 20,000 times/sec (20 kHz) in the liquid.
Ultrasonic oscillation produces bubbling called cavitation in the liquid. When broken, these bubbles cause impact to crush and shred surrounding particles. Maintenance can be minimized because of limited contamination and fewer eroding parts as compared with a mechanical homogenizer.
Applications: Emulsification, Dissipation, Shredding, Crushing, Homogenizing, Reaction acceleration, Extraction, Defoaming, Cleaning, Filtering
LUH150 (50W small handy type): Easy-to-handle,user-friendly small ultrasonic homogenizer
Used mainly in receptacles (test tubes, tubes, etc.)
ON/OFF possible with an oscillator hand switch
AC 100 – 240V power supply (AC 100V cable attached)
Compatible with 2,3,6 mm-dia. step-type microchips (3 mm-dia. step type microchip provided as standard)

Model	LUH150
Item Code	231507
Maximum output	50W
Oscillation frequency	20KHz ±0.5KHz
Operating Ambient temperature range	5～45℃
Auto-tuning mode	●
Constant-power mode	●
Constant-amplitude mode	●
Timer-controlled operation	●/ 1sec～120min.
Operation with hand switch	●
Attached horn or chip	3 mm-dia. step type microchips made from titanium alloy
Converter overall dimensions	Φ40×L171mm (not including chip)
External dimensions（W×D×H mm）	122×270×283mm
Power Source	AC100 to 240V 1A Single-phase
Weight	4.1kg
