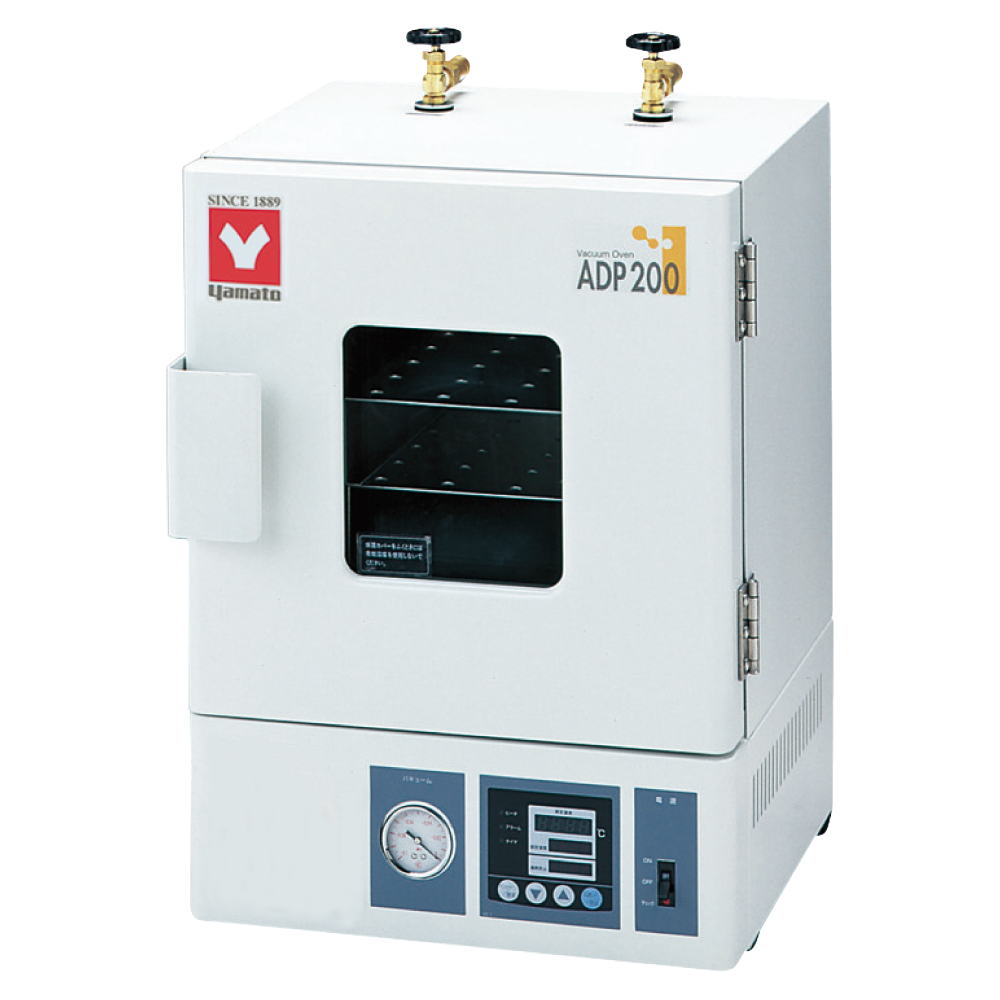

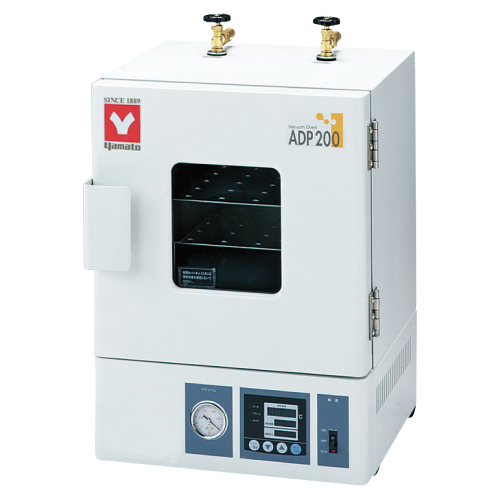

Vacuum Drying Oven (ADP200)

Description

Standard vacuum drying oven with enhanced safety features

Features of Vacuum Drying Oven (ADP200)

Operation and functions: Easy input of parameters and settings
Operation and functions: Digital PID controller supports fixed temperature, quick auto-stop, auto stop, auto start and program operations
Operation and functions: Self-diagnostic and overheating prevention functions
Operation and functions: Silicon rubber door seal prevents air from leaking
Operation and functions: Independent over heating prevention device for each circuit
Operation and functions: Calibration off-set function
Operation and functions: Easy maintenance
Safety features: Sensor trouble detection, SSR, short circuit detection, heater disconnecting detection, memory error, over heating and measurement temperature error

Model	ADP200
Timer	1 min. to 99 Hrs. 59 min. and 100 hrs. to 999 hrs. and 50 min., Digital display
Weight	30kg
Item Code	212168

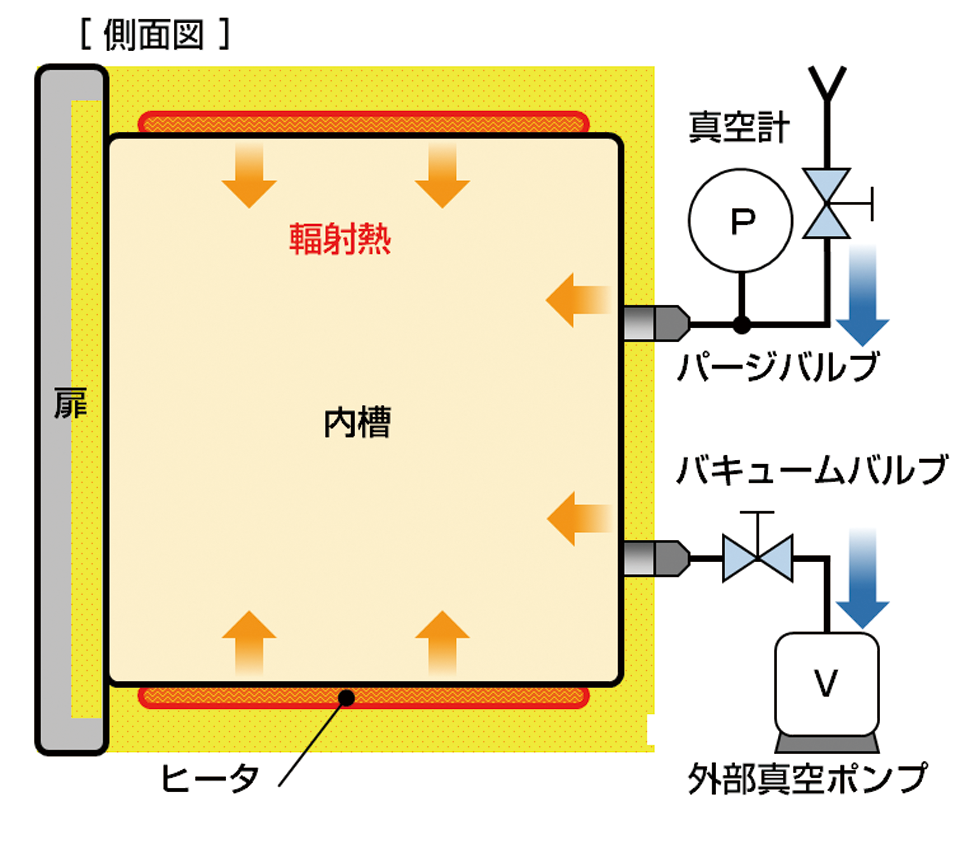

Method	Vacuum drying by decompressed chamber direct heating
Operating Temperature Range	40 to 240℃
Operating pressure range	101 to 0.1kPa（760 to 1 Torr）
Temp. control accuracy	±1.5℃（at 240℃）JTM K05
Max. temp. reaching time	Approx. 70min.
Interior material	Stainless steel
Temp. control method	PlD control by microprocessor
Temp. setting method	Digital setting by ▲/▼ keys
Temp. display method	Measurement temp.: Digital display by green LED
Temp. display settings	Setting temp.: Digital display by red LED
Heater	0.68kW
Heat insulating material	Rock wool
Observation window	Tempered glass (12 mm thickness) and polycarbonate resin plate
Vacuum gauge	Bourdon tube type, 0~0.1 MPa (Gauge pressure)
Safety device	Self diagnostic functions (Heater, Sensor, SSR short circuit, Automatic overheat prevention function), Over current electric leakage breaker, Overheating prevention device
Shelf loading	Approx. 15kg / pcs
Shelf rest step number	2 steps
Shelf rest pitch	63mm
Vacuum port	O.D.18mm
Accessories	Shelf plate (Aluminum perforated metal) 2 pcs.
Internal dimensions（W×D×H mm）	200×250×200mm
External dimensions（W×D×H mm）	400×411×565mm
Remarks(dimensions)	10L
Power Source	AC220V Single-phase with step down transformer
