Description

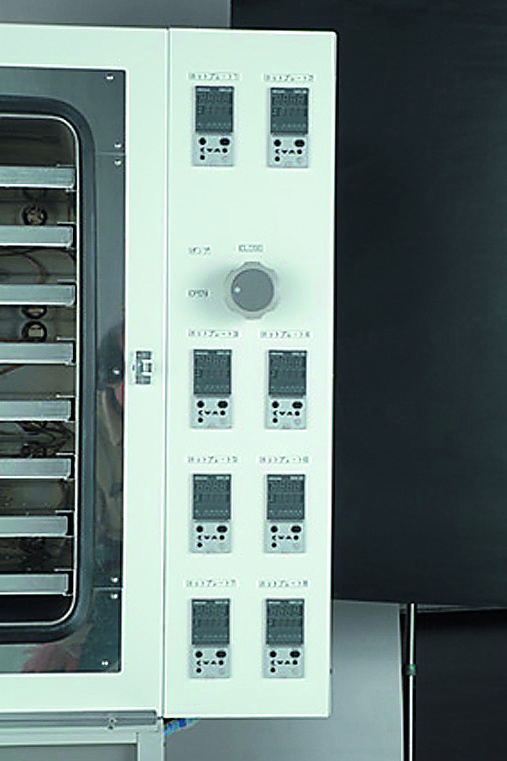

Temperature control is possible individually in 8 stages, uniform temperature processing even in vacuum
Features of Vacuum Drying Oven, Shelf heater type (DP610HP)

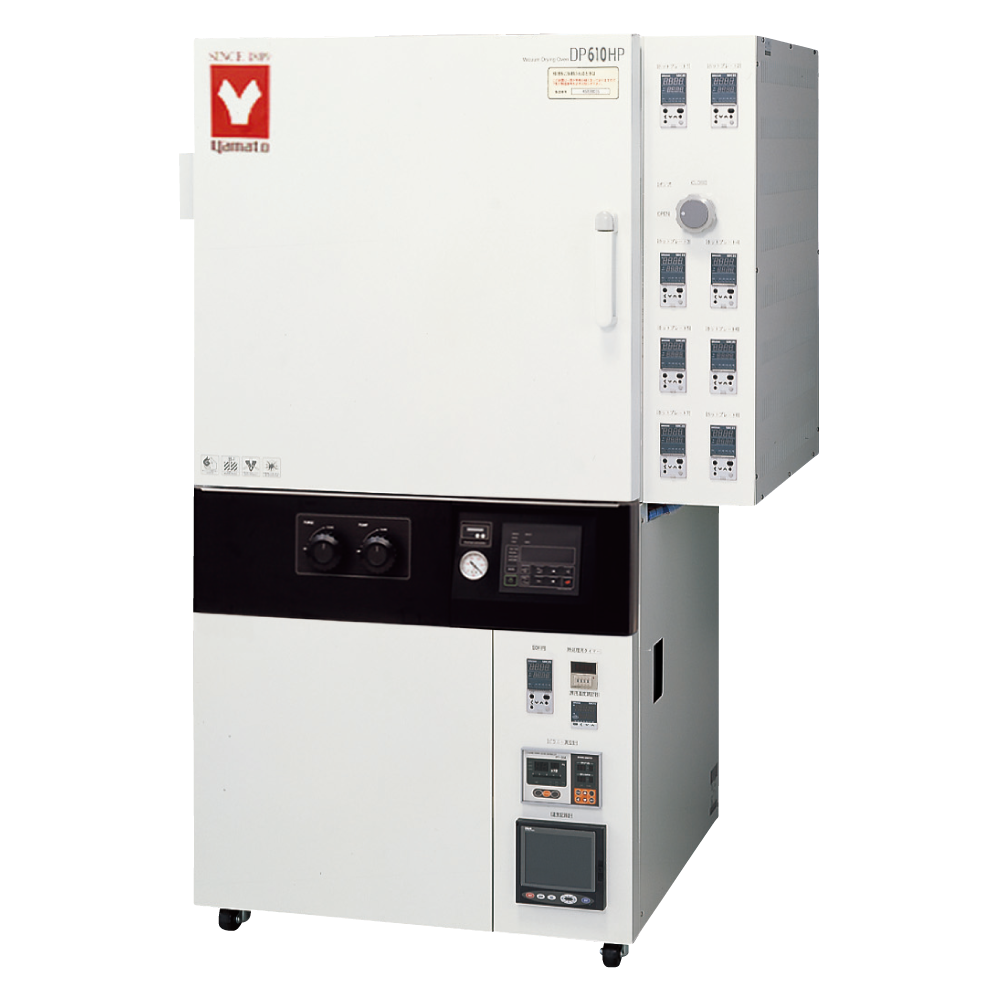

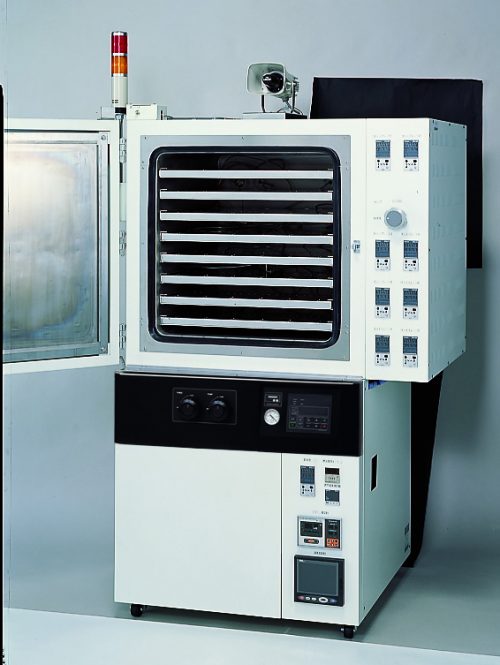

Vacuum Drying Oven, Shelf heater type (DP610HP)
Vacuum Drying Oven, Shelf heater type (DP610HP)
Additional information
| Model | DP610HP |
|---|---|
| Heat insulating material | Rock wool |
| Price | – |
| Item Code | DP610HP |
| Method | Decompression chamber & shelf heating |
| Operating Temperature Range | 40 to 200 degree |
| Operating pressure range | 101 to 0.1kPa |
| Interior material | Stainless steel |
| External material | Chrome-free electric galvanized steel plate with baked-on melamine resin finish |
| Door | Single swing door |
| Door packing | Viton packing |
| Heating Method | Shelf heating + rediation heating |
| Operation function | Fixed temperature operation, auto-start operation, auto-stop operation, quick auto-stop operation, Program operation |
| Heater circuit control | Triac zero-cross (shelf indivisual) control |
| Additional functions | Temperature recorder, pirani vacuum gauge, signal tower, buzzer, timer for heat treatment |
| Safety countermeasures | Self diagnostin functions, key lock function, independent oberheating prevention, electric leakage breaker |
| Shelf | Pipe heater 0.9kW x 8, total 7.2kW |
| Shelf dimentions | 590W x 550D x 25H mm |
| Internal dimensions（W×D×H mm） | 600×600×600mm |
| External dimensions（W×D×H mm） | 1020×820×1650mm |
| Power Source | AC200V 37A |
| Weight | 400kg |
